GCOM S2600 Series 4 port POE Switch

Item

2600-05PC

2600-09PC

2600-10PC

2600-20PC

2600-28PC

2600-52PC

Backplane capacity

18Gbps

18Gbps

18Gbps

40Gbps

40Gbps

72Gbps

Interface switching capacity

3.6Gbps

3.6Gbps

3.6Gbps

7.2Gbps

12.8Gbps

17.6Gbps

Forwarding capacity

2.7Mpps

2.7Mpps

2.7Mpps

8.3Mpps

9.6Mpps

13.1Mpps

Port

4*10/100Base-T,1*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T)

8*10/100Base-T,1*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T)

8*10/100Base-T,2*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T)

16*10/100Base-T, 2*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T),2*1000Base-X SFP

24*10/100Base-T, 2*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T),2*1000Base-X SFP

48*10/100Base-T, 4*100/1000Base-X SFP

Power consumption

Full-loaded≤14W (without POE)

Idle≤8W

Full-loaded≤14W (without POE)

Idle≤8W

Full-loaded≤14W (without POE)

Idle≤8W

Full-loaded≤15W (without POE)

Idle≤10W

Full-loaded≤37W (without POE)

Idle≤18W

Full-loaded≤45W

Idle≤20W

Dimensions (width x depth x height))

330mm×220mm×44mm

330mm×220mm×44mm

330mm×220mm×44mm

438mm×420mm×44mm

438mm×420mm×44mm

440mm×220mm×44mm

Weight (Full-loaded)

≤2.5kg

≤2.5kg

≤2.5kg

≤4.5kg

≤6kg

≤6kg

Power

Input AC : 90~264V, 47~63Hz

PoE Power supply

127W

127W

127W

400W

400W

400W

POE features

8/16/24*Base-T support POE, use data cable 1,2,3,6 to supply power,satisfy for 802.3at Alternative A.

Satisfy 802.3af standard and 802.3at standard,max power consumption of single port is 32/40W.

S2600-05PC provides full-loaded 4 ports 802.3af(15.4W) or 4 ports 802.at(26W)to supply power

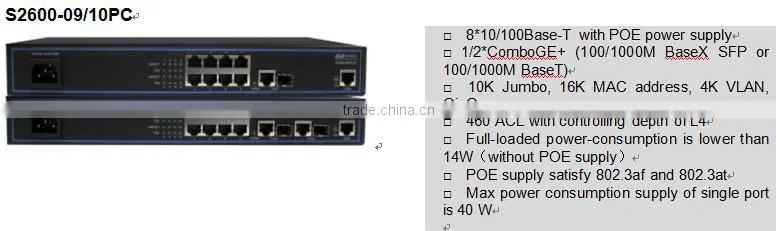

S2600-09/10PC provides full-loaded 8 ports 802.3af(15.4W) or 4 ports 802.at(26W)to supply power

S2600-20PC provides full-loaded 16 ports 802.3af(15.4W)or 15 ports 802.at(26W)to supply power

S2600-28PC provides full-loaded 24 ports 802.3af(15.4W)or 15 ports 802.at(26W)to supply power

Environmental requirements

Operating Temperature:-15°C~55°C   Storage Temperature:-40°C~70°C

Relative humidity:10%~90%,non-condensing

Item

S2600-09PC/10PC/20PC/28PC

L2 features

MAC

16K MAC address

Aging time and add/remove static MAC by manual

MAC Black Hole

Port MAC Limit

Disable MAC address learning on port or channel-group

MAC filtration

VLAN

4K VLAN entries.

Port-based and protocol-based MAC VLAN

QinQ

Port

Bidirectional bandwidth control, configure entry/exit and the smallest 64K control particle

Storm-control on port, configure broadcast/multicast/unknown unicast

Static and LACP, configure 30 groups and 8 members port each group

Port- mirroring of 1:1 or N:1and remote port-mirroring

Ring

STP/RSTP/MSTP

Remote-loop-detect

Security features

User’s security

ARP anti-Flooding, configure ARP traffic safety threshold and inhibition ARP packet

ARP anti-Spoofing, configure ARP inner and outer MAC check and static ARP checklist and drop / flood action

IP Source Guard, auto-create IP+MAC+port+VLAN binding table

IEEE 802.1x and AAA/Radius authentication

IP+MAC+port+VLAN binding manually

Port Isolation, configure hardware isolation of each port

Bind MAC address to port and MAC address filtration on port

Network security

User-based ARP abnormal traffic filtration

Auto-shutdown port in storm

Update user’s location through DHCP Option82 and PPPoE+

Port-based broadcast/multicast/unknown unicast suppression

L2-L4 ACL flow filtration

Device security

Anti-DOS attack

SSHv2 Secure Shell

SNMP v3 encryption

Telnet based on Security IP

Prevent unauthorized user

Service features

ACL

Activate 460 standard and extended ACL at the same time

Port/VLAN/global-based ACLand Time Range-based ACL strategy

CAR and ACL in the dynamic AAA

QoS

8 queues with different priorities on each interface

Flow classification based on SMAC,DMAC,VLAN,SIP,DIP,IP protocol, port number and CoS

Traffic priority definition and packet re-direction

Multicast

1K L2 multicast groups

IGMPv1/v2/v3 Snooping

IGMP Filter/Fast leave/cross-VLAN duplication

MLDv2/MLDv2 Snooping

Reliability

Loop protection

EAPS and GERP

Loopback-detection

Link protection

FlexLink

RSTP/MSTP

LACP

Maintenance

Network maintenance

Port real-time, utilization and transmit/receive statistic based on CLI

LLDP

802.3ah Ethernet OAM

Syslog and RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device management

CLI, Console port, Telnet and WEB management

SNMPv1/v2/v3

RMON (Remote Monitoring)1,2,3,9 MIB

SNTP

GN.LinkⅡ Server

NGBNView network management
