gravure printing machine C Series

Specifications

1.seven vector motor & frequency (siemens brand)
2.Rotogravure printing machine the max.speed:170m/min
3:auto tension

To be the Best Printing&Packaging Manufacture in China



Company introduction:

• 14 years experience in packing industrial
• Appliance is strictly in accordance with CE standard
• Assembly&parts are processed by CNC lathe
• Good after-sale service
• Prompt reply within 24 hours
• Professional&enthusiastic sales team

FangBang Development History:

• August ,1999        ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established
• April ,2002             ---Shanghai Fangbang industry Co.,Ltd  Wad established
• October, 2003       ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products
• August .2005        ---Jiangsu Fangbang Machinery Co.,Ltd Was established
• October .2005      ---Passed ISO9001:2000 Authentication
• May,2006              ---Zhejiang Fangbang Machiery Co.,Ltd .Was established
• Augus,2006         --- Passed CE Authentication
• July ,2010             --- The Famous Product of Ruian City
• September ,2010 -- The Famous Brand of Ruian City
• August,2011         --- National High&New Technology Enterprise

 4-12 color rotogravure printing machine

 4-12 color  rotogravure printing machine  is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET.PVC,PE ,Aluminum foil and paper ,etc



Specifications:

Type	AZJ-8850C	AZJ-81050C	AZJ-1250C
Max.width of Web	850MM	1050MM	1250MM
Max.printing speed	150-170M/MIN	150-170M/MIN	150-170M/MIN
Max.diameter of unwind & rewind	Φ600MM	Φ600MM	Φ600MM
inside diameter of roll core	Φ 76MM	Φ 76MM	Φ 76MM
diameter of printing cylinder	Φ 120- Φ 300MM	Φ 120- Φ 300MM	Φ 120- Φ 300MM
Accuracy of registration	±0.1mm	±0.1mm	±0.1mm
tension control range	3-25KG/Full Width	3-25KG/Full Width	3-25KG/Full Width
heating power of Oven	108kw	135kw	162kw
Total power	about 168 kw	about 200 kw	about 231 kw
Weight of Machine	about 25000kg	about 27000kg	about 29000kg
Overall dimension  (LxWxH)	16000*3500*3400MM	16000*3700*3400MM	16000*3900*3400MM

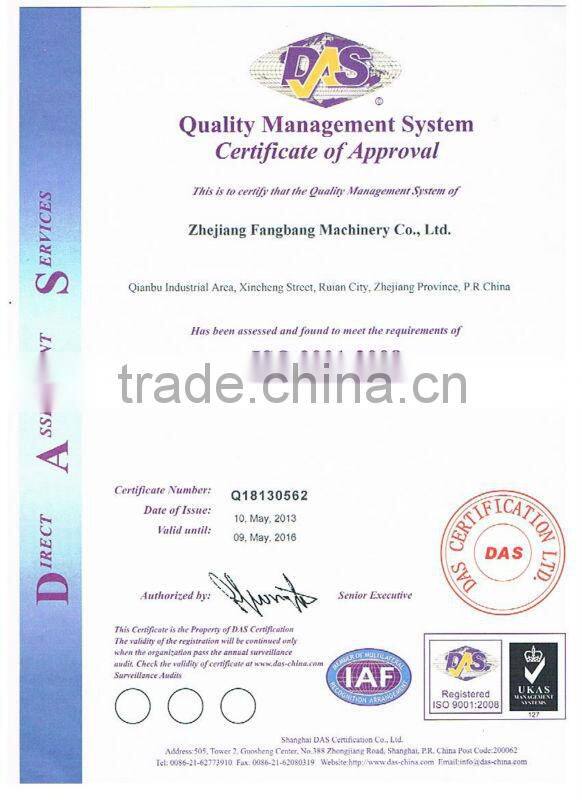

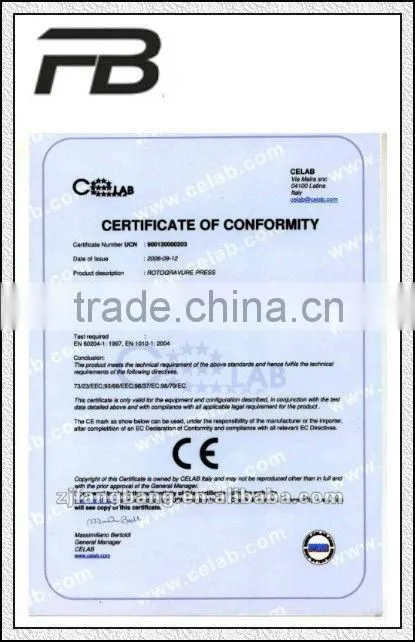

The Certificate :



















Characteristics:



• Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
• Main motor equipped with frequency converter for speed regulation
• Turret un/rewinding section.non-stop material splicing
• Unwinding tension adopts automatic tension controller and magnetic powder brake
• Rewinding adopts torque motor,double-station automatic turret
• Closed oven and independent heating hot air blosing system ,automatic constant temperature system
• Pneumatic impressing system and pneumatic doctor blade system
• Diaphragm-type pneumatic ink auto circulating system
• Inflatable air shaft for unwinding/rewinding material loading
• Printing linear speed and meter counting display
• Shaftless printing cylinder loading device .Printing cylinder is fixed by shaft-less air chuck.
• Max.Printing Speed :170m/min
• Max.Diamter of Unwind/Rewind: 600mm

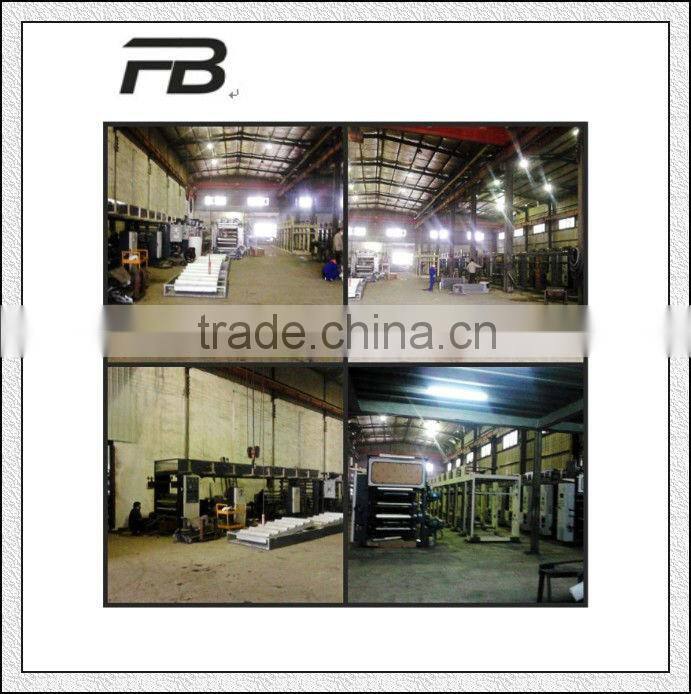

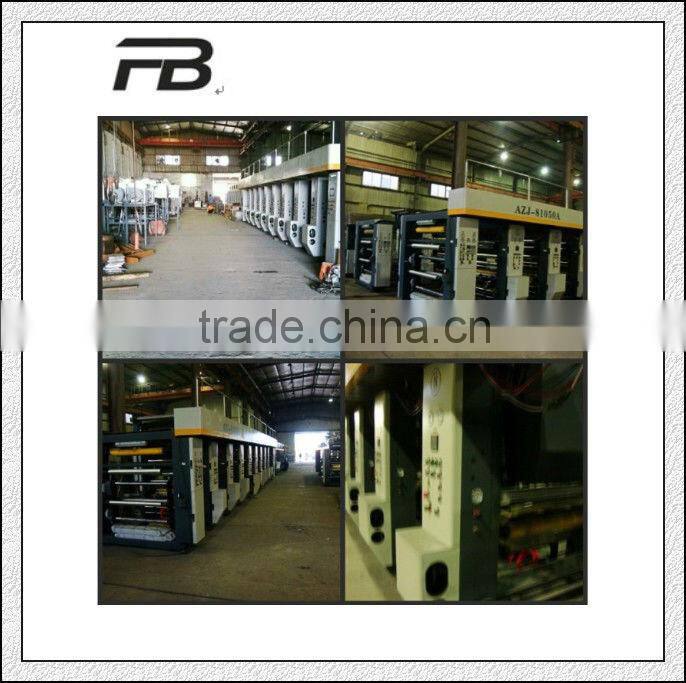

Workshop:

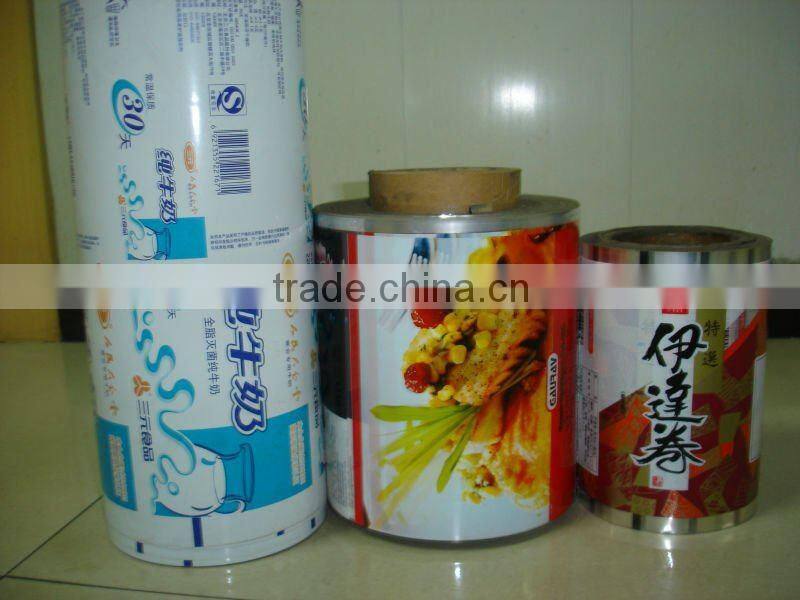

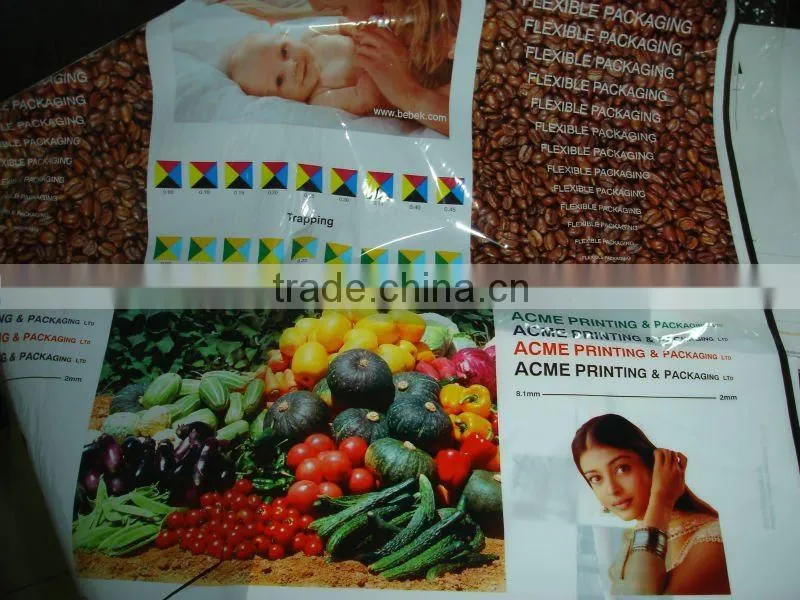

FINISHED PRODUCTS
