Help CenterOem Design Cold Sheet Metal Stamping Die,metal Punching and Stamping Die
Related Products
-
Factory Die Stamping Mould,terminal Lug Stamping Moulds,precision Zinc Alloy Stamping MouldUS$ 1,000 - 50,000MOQ: 1 Set -
China Factory Metal Processive Stamping DieUS$ 1,000 - 50,000MOQ: 1 Set
-
Stamping Tool and Die Making,progressive Tool and Die MakingUS$ 1,000 - 50,000MOQ: 1 Set
-
Precision Metal Pressing Machine DieUS$ 1,000 - 50,000MOQ: 1 Set
-
Custom Sheet Metal Stamping Die MoldUS$ 1,000 - 50,000MOQ: 1 Set

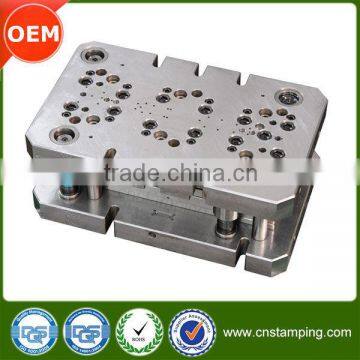

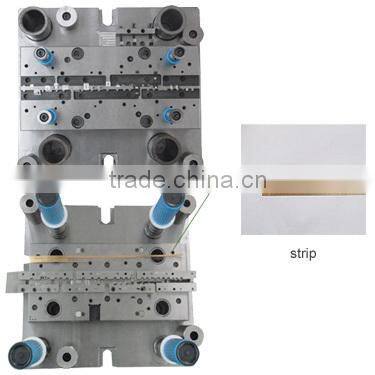

| | Metal Stamping Die
|

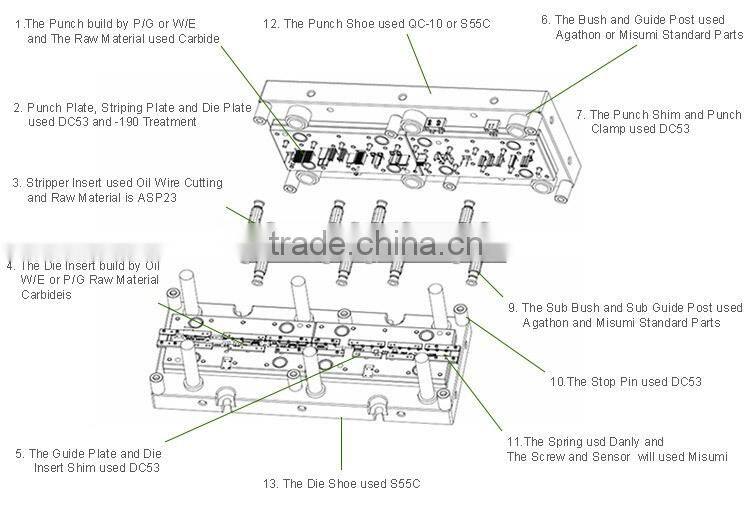

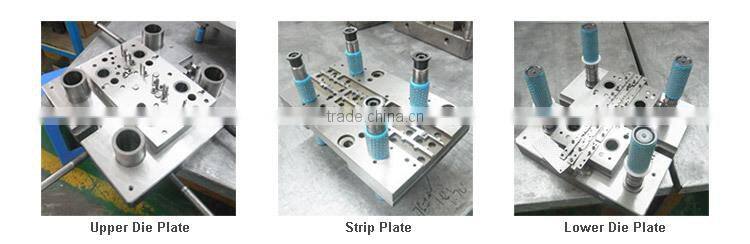

Die Detail Components
........................................................................................................................................................................

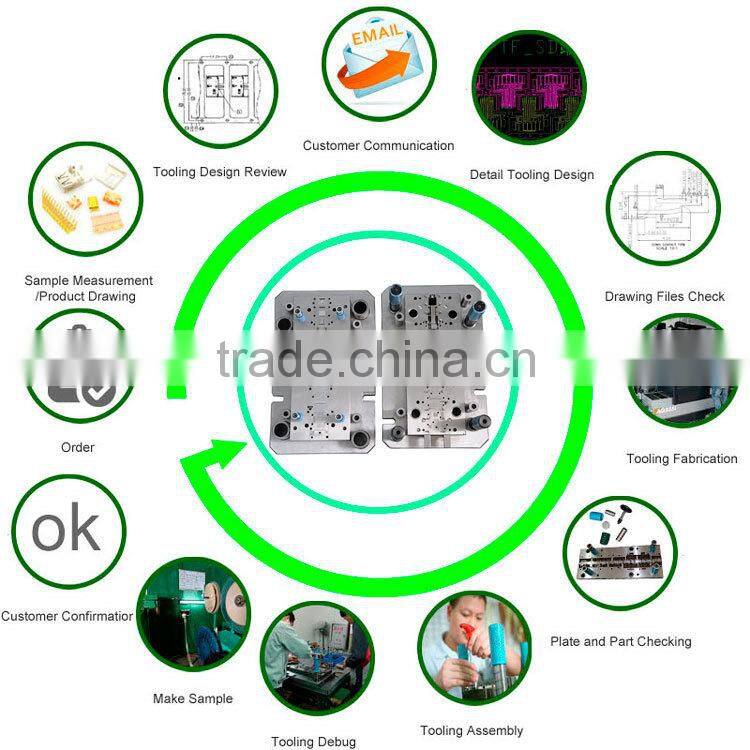

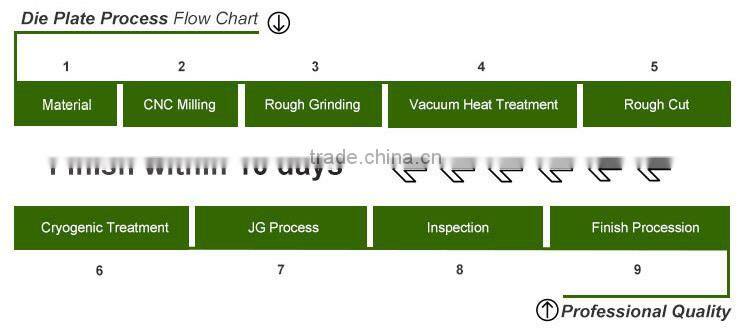

Tooling Making Process
........................................................................................................................................................................
Equipment
........................................................................................................................................................................
| General Capabilities | Design Modeling (2-D, 3-D) | Die Location Technical Support | Inspection |
| Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | |
| Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies |
| High Speed Steel Dies | Precision Blanking Dies | ||
| Tooling Material | Carbide(CD650,V3,KD20) | ASP-23 | ASP-60 |
| S55C---45#55 | AL7075 | SKD11 | |
| Tooling Life | 50 Million to 300 Million Times | ||
| Die Concept | 2-Plate Die | 3-Plate Die | Module Die |
| Production Equipment | CNC | SODICK Nice Surface EDM | P/G |
| Drill | SODICK Wire Cutting Machine | J/G | |
| Milling Machine | WAIDA Profile Grinder Machine | ||
| Stamping Equipment | AIDA | PURDER | KYOL |
| MICO | |||
| Stamping Product | Custom Stamping | SIM Spring | Spring |
| Battery Spring | Shield Drawing | Press-Fit Terminal | |
| Lead Frame | Power Terminal | PC Terminal | |
| Additional Services Provided | Custom Packing | Packaging | Heat Treat |
| Plating | |||
| Delivery | 3-6 Week | 4-8 Week | |
If you have any questions, you can just click to contact us. -------Our team will help you solve problems within 12 hours. | CLICK FREE SAMPLES |
| |
In 2008, Heju Advantage Include:
|
Stamping Process Technology Capability:
A: The min. pitch 0.4mm
F: Zero loss of material use.
| |
NO.501288 QM08 NO.501288 UM NO.T702B
Q: What’s your manufacture capability?
---- We use Sodick/Charmilles to frabricate die inserts,dimension we can do is +/-0.005mm.
Q: Can you make all the dimensions are according to our design/sample?
---- We can guarantee that all the dimensions are made according to your drawing/sample.Please notice that dimension tolerence we can do is +/-0.003mm.
Q:Did the stamping die suit for my press machine?
---The stamping die is made according to your press machine’s specification.Before start making die parts,we will send the design for your approval.
Q:What’s your advantage compare with other supplier’s on the market?
----We are stamping factory,have a team contains die design,making,maintance and stamping production.We know how important the good mold for stamping production.
----All our engineers are with more than 10 years working experience.They are more professional on precision stamping field.
----All the die parts we made are by Slow-speed wire EDM,can gurantee the dimension.Many of them make it by middle-speed wire EDM/fast-speed wire EDM.
----We are ISO/TS certificated factory,all our works are according to it.
----We have been approvaled by the thrid party,if you want,i can show you the report.
