S10-- High accuracy, large capacity use for cold chain transportation design(water/dust proof) temperature and humidity logger

Specifications

1.USB and ultra-lower consumption design.
2.High waterproof (IP67)
3.High accuracy, large capacity

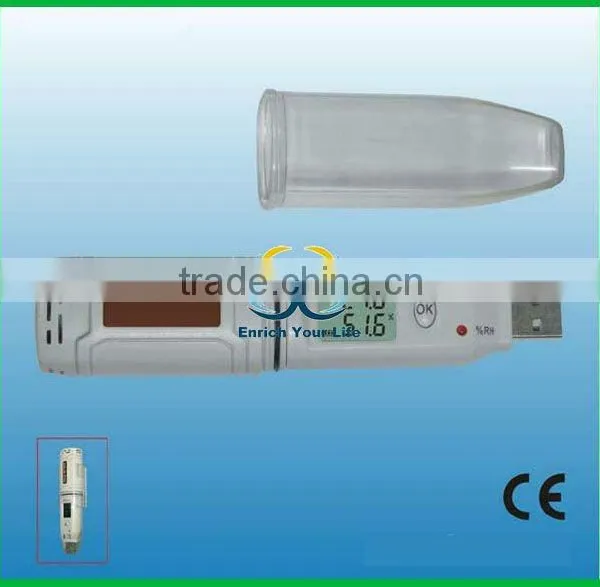

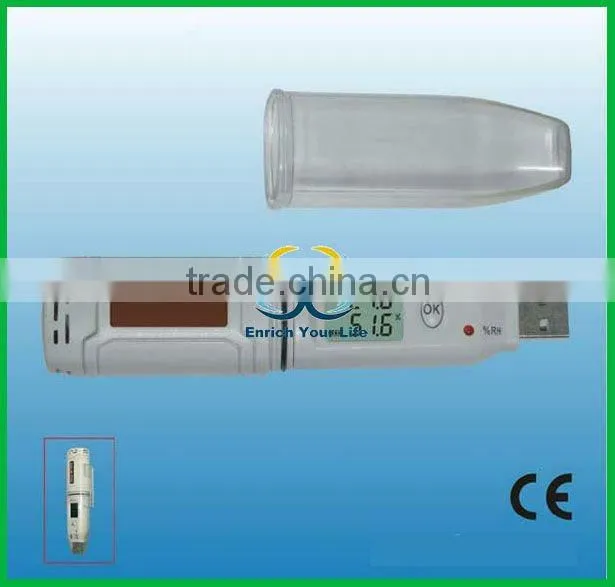

 STH704 USB Temperature Humidity Data Logger



Introduction:



STH704 temperature Humidity data logger has USB interface, enjoying elegant appearance and compact construction, specially designed for refrigerator and cold-chain transportation as well as container transport applications. STH704 adopts friendly USB interface, friendly mounting bracket and the screws. The LCD can show temperature and humidity simultaneously as well as the battery indication. The OK key can help to check the Max/Min/Current value and the upper and lower limits.



Features:

1. Waterproof and dustproof standard IP67, resisting moisture, dew-point temperature and dust.

2. Temperature and humidity limit can be set. LED lights when the setting value being exceeded.

3. Ultra-lower consumption design, 1/2AA 3.6V Li battery, working for 12 months and easy to install your battery.

4. Transfer logging data to PC through software and can be saved as different types to ensure the existence.

5. Adopt high sensitive sensor, enjoy fast response and high accuracy.



TECHNICAL PARAMETERS
Model	STH704
Accuracy	±0.3°C/ ± 2%RH
Memory	43,000
Measurement Range	-30 to 85°C/0 to 100%RH
Power supply	1/2 AA, 3.6V Lithium Battery
Dimension	Dimensions: 125mm * 28mm * 22mm
Resolution	Temperature 0.1°C,Humidity:0.1%RH
Typical battery life	1 year
IP Rating	IP67
Logging rate	2s ~ 24h
Weight	150g

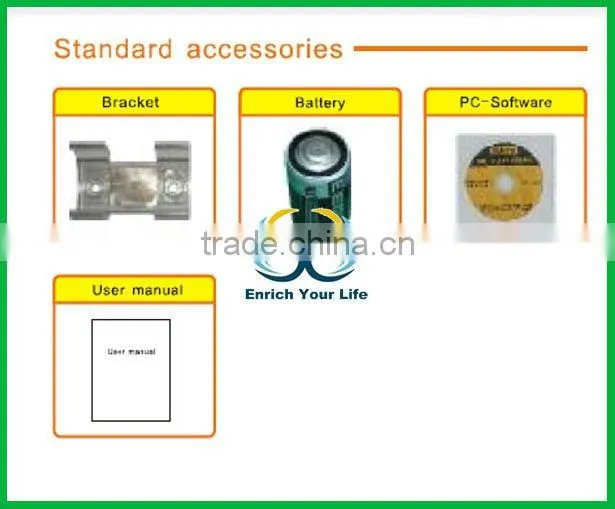

Accessories	To Analyzer CD,USB cable, User Manual, Battery.





Application

It has been widely used in cold-chain transportation field, HVAC refrigerator field, electrical industry, medical industry as well as laboratory fields.
