Swimming pool slides for shotcrete machine Construction

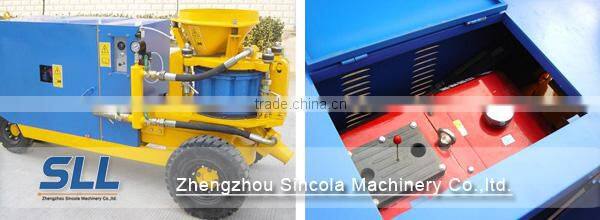

• //.SPZ3000 Diesel Engine Shotcrete Machine shotcrete machine


  Moder	SPZ3000
  Output	5 m³/h
  nvey dist.	35 m
  Max.aggregate size	φ15 mm
  Concrete slump	8-15 cm
  Hose inner size	φ50/65 mm
  Operating air pressure	0.2-0.6 MPa
  Air consumption	9-10 m³/min
  Discharge height	1.17 m
  Rotor Rev.	11 r/min
  Main electric motor power	7.5 kW
  Dosing pupmp model	BRJ15
  Dosing pump rated pressure	0.6 MPa
  Dosing pump output	17.5-88 L/h
  Overall dimension	2050×950×1180 mm
  weight	1200 kg



• //.SPZ3000A Air mortar type shotcrete machine Main Technical Data

  Output Capacity	9 m³/h
  Max. Horizontal Conveying Distance	150
  Suitable Mix Ratio(Cement/Sand)	≤1:3~5
  Max. Aggregate Size	Φ20 mm
  Conveying Hose Inner Diameter	Φ64 mm
  Conveying Pressure	0.2-0.4MPa
  Air Consumption for conveying material	9-10 m³/min
  Air Motor Air Pressure	0.5MPa
  Material Charging Height	1.2m
  Rotor Speed	10rpm
  Air Motor Type	TMH8A
  Air Motor Air Consumption	9.5 m³/min
  Overall Dimension(length×width×height)	15000×830×1320 mm
  Net Weight	950kg

Features of  Diesel Engine Shotcrete Machine

Common use:

1. Shotcrete  Swimming Pool Construction.

2. Soil Retention and Tetaining Walls.

3. Rockscaping.

4. Refractory Spraying.

5. Mine Support.

6. Tunnel Linings.

7. Concrete Repair.

8. Artificial Rocks and Caves.

9. Low-volume Refractory Spraying.

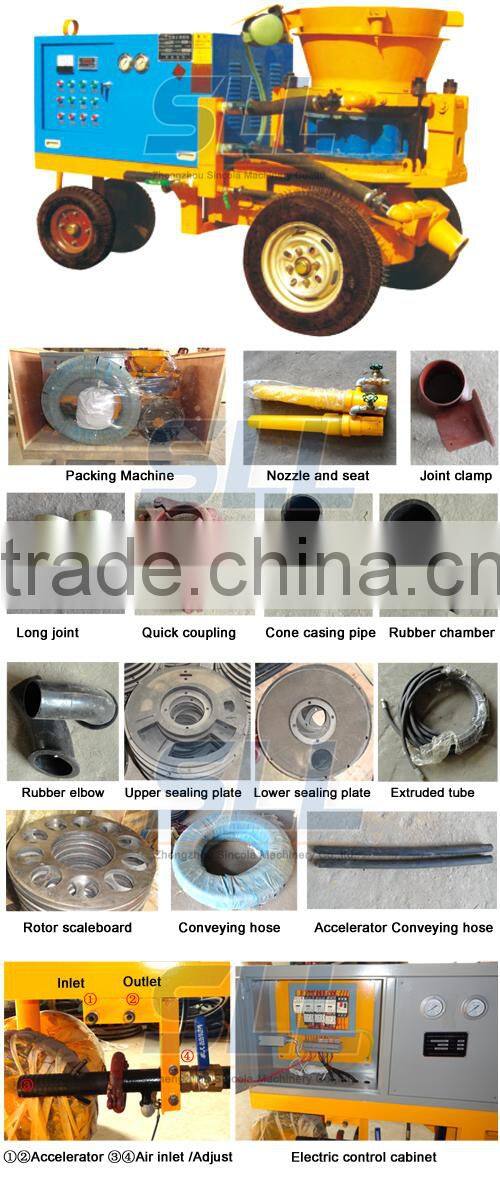

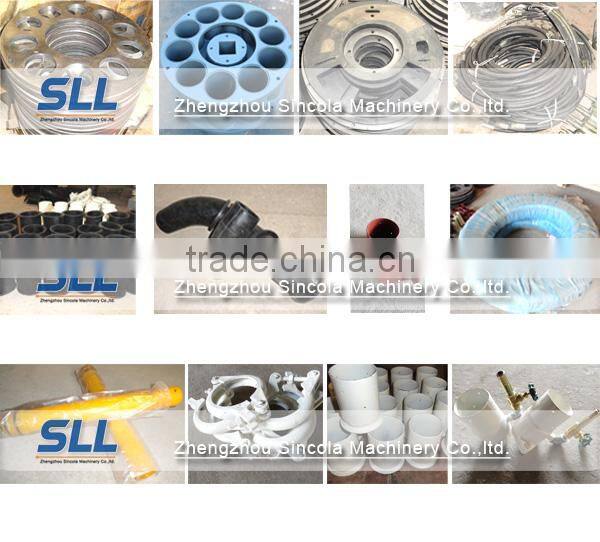

Spare Parts that we offer:

• Three Quick Coupling
• One Long Joint
• Four Joint Clamp
• One Conveying hose
• One Upper sealing plate
• One Lower sealing plate
• One Rubber Elbow
• One Taper sleeve
• Ten ubber Chamber
• One Nozzle and seat
• One Nozzle

FAQ:

1. How many people that  need to operate this kind of machine?

Two persons, one loading the material and the other for the spraying.

2.MOQ:

1set can be acceptable for Trail Order.

Over 3sets can enjoy the wholesale price.

Welcome to join us as our sales agent in your market.

3. How long the life time the main engine?

more than three years, 1 year guarantee for quality problems.

4. Does this kind of machine can work singlely?

No, it need match one air compressor to cooperate.

5.Delivery time:

1 week for Standard Model(motor:380v 50hz 3phases)

15-25days for Cusmoized Model.

6.Payment:

TT, 30% deposit ,70% before shippment.

L/C at sight (high bank charge, not suggest , but acceptable).

100%TT in advance (specially for air shipment or small amount).

7.Available Shipment:

FOB Qingdao

FOB Shanghai

FOB Tianjin

Packaging & Delivery

Wooden case packing or according to customers’requirement

Within 7 working days after we received advanced payment

         Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .

        Our products are dry and Shotcrete machinery of  Diesel Engine Shotcrete Machine and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.

        Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.

        Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.

       Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
