(5.5 m3/h) SPZ-5 Dry Mixed Shotcrete Machine with High Quality and Efficiency
- 1000 Set / Sets per Month
- QINGDAO SHANGHAI TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Sincola shotcrete machine /shotcrete pump/spraying machine/concrete pump
Quality Choice
-
Small Shotcrete Machine for Pumping and Spraying
-
Sincola shotcrete machine for Saudi Arabia
-
Sincola Diesel Engine shotcrete machine
-
SLL Dry Ready Mix shotcrete machine for sale
-
Sincola wet shotcrete machine price
Product Details
| Condition | New | Max. Conveying Distance | 200m | |
| Max Aggregate Size | 15mm | Hose Inner Diameter | 50 mm | |
| Air Consumption | 7-8 m3/min | Place of Origin | Henan, China | |
| Brand Name | SINCOLA | Model Number | SPZ-5 | |
| Voltage | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | Power(W) | 5.5 kW | |
| Dimension(L*W*H) | 1.35*0.75*1.02m | Weight | 720Kg | |
| Certification | ISO9001-2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Wooden cases with international standard
Product Description
What is the dry shotcrete machine?
The following is the SINCOLA Shotcrete Machine!

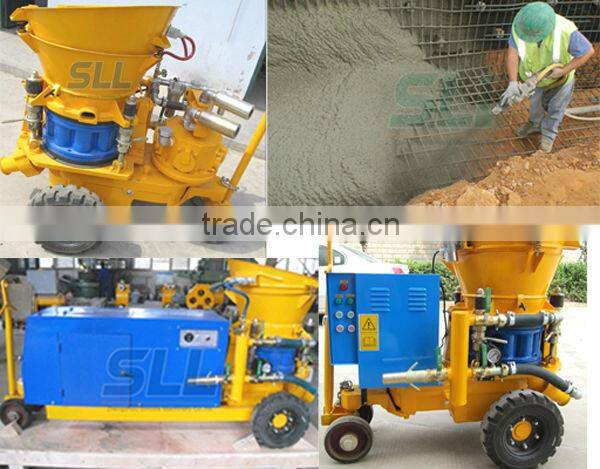

Shotcrete Machine SPZ-5
- It is mainly Efficient to spray dry mix concrete or other mortar;
- Widely employed in Construction ,such as mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc.
our products shotcrete machine have been exported to a lot of countries. The spray machine is popular in our factory and selling fast.
- The dynamic system of Dry shotcrete machine have three types: Air Motor,Diesel Motor and Electric Motor.
- Gunite machines can use air pressure to convey dry material from the machine through the hose to the nozzle where water is added.
Technical parameters of SPZ-5 Shotcrete Machine:
| Driving Type | Air Motor | Electric Motor | Diesel Mortor |
| Model | SPZ-3 | SPZ-5 | SPZ-9 |
| Output (m3/h) | 5.5m3/h | 5.5 m3/h | 5.5 m3/h |
| nv.dist | 200 m | 200 m | 200 m |
| Water cement ratio | < 0.4 | < 0.4 | <0.4 |
| Max.Aggregate.size | 15mm | 15mm | 15mm |
| Hose inner size | φ50 mm | φ50 mm | φ50 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 15-16 m3/min | 7-8 m3/min | 15-16 m3/min |
| Motor power | 5.5 kW(7hp) | ||
| Dimension(LxHxW) | 1350x1020x750mm | 1350x1020x750mm | 1350x1020x750mm |
| Weight | 780kg | 780kg | 780kg |
| Basic chassis | Tyre, Skid or Rail-wheel | ||
Features of Dry Mix Gunite Shotcrete Machine
1. the shotcrete machine is high efficiencyand quality
2. Spare parts of the machine is not easy to loss,and have a long service life.
3. Operation easily and it is convenient to maintenance
4. Environmental
Any question, Please contact me.
...
Company Profile
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of full automatic dry mortar plant and semi automatic dry mortar production line 1-5tph dry mortar plant and shotcrete machine plaster machine and mortar pump,wall rendering machine,concrete pump etc.
