Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Mortar Spray Machine > New Condition Machines of Swimming Pool Manufacturers
US$ 1 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
200m
Max Aggregate Size:
20mm
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI QINGDAO TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Superior Cement Spraying Machine/shotcrete MachineUS$ 1 - 60,000MOQ: 1 Set -
New Condition of of SINCOLA Shotcrete MachineryUS$ 1 - 60,000MOQ: 1 Set
-
SPZ-3---Long Time Supply High Efficient Cheap Dry Mix Guniting EquipmentUS$ 1,111 - 9,999MOQ: 1 Set
-
SPZ-3---Long Time Supply High Efficient Cheap Concrete EquipmentUS$ 1,111 - 9,999MOQ: 1 Set
-
SPZ-3---Long Time Supply High Efficient Cheap Rotor Concrete Spraying MachineUS$ 1,111 - 9,999MOQ: 1 Set
Condition
New
Max. Conveying Distance
200m
Max Aggregate Size
20mm
Hose Inner Diameter
50 mm
Air Consumption
9-10m3/min
Place of Origin
Henan, China
Brand Name
SINCOLA
Model Number
SPZ
Voltage
220V/380V/400V/415V/440V/660V
Power(W)
7.5KW
Dimension(L*W*H)
1.50*0.83*1.32m
Weight
900kg
Certification
Iso9001:2008
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Technical Parameters
| Model | SPZ-3 | SPZ-5 | SPZ-9 |
| Output (m3/h) | 3 m3/h | 5.5 m3/h | 9 m3/h |
| nv.dist | 200 | 200 | 150 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10mm | 15mm | 20mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ60 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Motor power | 3 kW(4hp) | 5.5 kW(7hp) | 7.5 kW(10hp) |
| Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1500x1320x830mm |
| Weight | 520kg | 780kg | 980kg |
| Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | ||
| Basic chassis | 1.Tyre 2.Skid 3.Rail-wheel | ||
| Driving Type | Electric Motor | ||
Product Description
- SPZ series machines for swimming pool manufacturers is also for the dry concrete spraying process.
- SPZ machines for swimming pool manufacturers can be used as well for construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
- SPZ series machines for swimming pool manufacturers is available in following versions: Basic: electric drive can be combined with tyre chassis Extended (optional): air motor or diesel drive combined skid or rail-wheel
Applications
1. Shotcrete machines for swimming pool manufacturers and for Swimming Pool Construction.
2. Soil Retention and Tetaining Walls.
3. Rockscaping.
4. Refractory Spraying.
5. Mine Support.
6. Tunnel Linings.
7. Concrete Repair.
8. Artificial Rocks and Caves.
9. Low-volume Refractory Spraying.
Features
Features of machines for swimming pool manufacturers
- Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period;
- Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life;
- Low pressure and low speed wortex air transport;
- Well compact and seal, small dust, durable rubber plate of the dry mix shotcrete machine;
- Apply to steel fiber or chemical fiber concrete spraying.

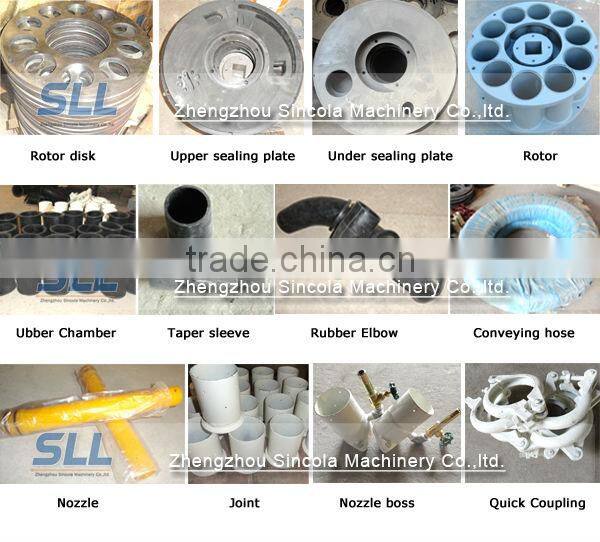

Parts
Packaging & Shipping

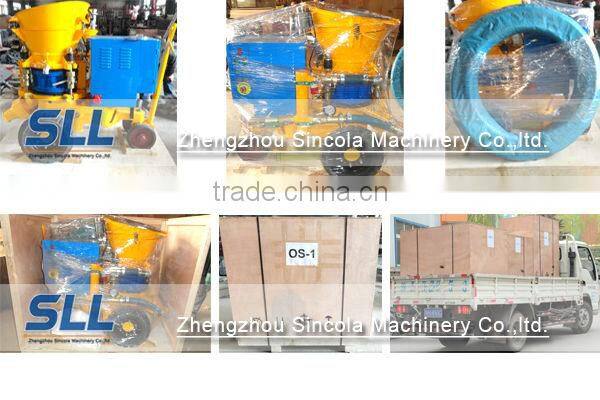

Packaging & Delivery
Wooden case packing or according to customers’requirement
Within 7 working days after we received advanced payment
