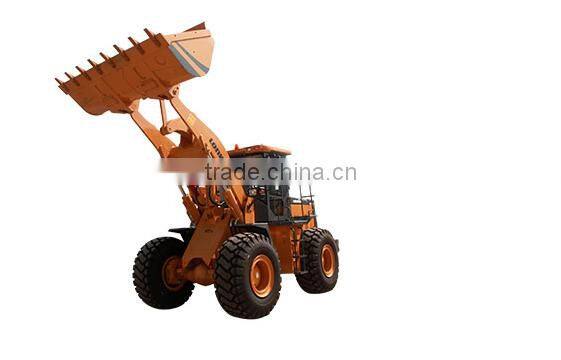

Lonking 5t wheel loader LG850,mini loader

Overall Data

Steering System

Bucket Capacity (m³)

2.7/3.0

Type

Hydraulic Load Sensing System

Rated Payload(kg)

5000

Cylinders-bore×Stroke(mm)

2-90×340

Operating Weight(kg)

15950±300

Steering Pump

Gear Pump

Traction Force(kN)

150±3

System Pressure(MPa)

15

Breakout Force(kN)

155±3

Flow Rate(L/min/rpm)

176/2200

L×W×H(mm)

7670×3000×3480

Steering Angle

±35°

Travel Speeds (km/h):

Hydraulic System

Ⅰ

Ⅱ

Lift Cylinders-bore×Stroke(mm)

2-160×836

Forward

11.5

36.0

Tilt Cylinder-bore×Stroke(mm)

1-180×559

Reverse

16.0

Model of Implement Pump

Gear Pump

Engine

WEICHAI WD10G220E21

Flow Rate(L/min/rpm)

220/2200

Rated Power(kW·hp/rpm)

162·(220)/2200

System Pressure(MPa)

16

Peak Torque(Nm/rpm)

850/1400-1400

Pilot Control System Pressure(MPa)

2.5

Starting Voltage(V)

24

Hydraulic cycle time, Rated load in bucket(In second):

Drive Train

Raise(Loaded)

Dump

Lower(Empty)

Total

Torque Converter

Single-stage, Duo-turbine, 4-element

6.0

1.2

4.3

11.5

Torque Ratio

4.0

Electrical System

Transmission

Planetary Powershift Transmission

System Voltage(V)

24

Gear

2F/1R

Battery (2 in series)(Ah)

120

Pressure of Transmission(MPa)

1.2~1.5

Lamp Voltage(V)

24

Main Reducer

Spiral Bevel, 1-stage Reduction

Service Refill Capacity

Final Reducer

Planetary Reduction

Fuel Tank(L)

360

Tire

23.5-25 L-3 16PR TT

Hydraulic Tank(L)

360

Brake System

Crankshaft(L)

20

Service Brake

Single Circuit Caliper,Dry Brake

Transmission(L)

45

Setting Pressure (MPa)

0.78

Front Axle(L) /Rear Axle(L)

25/25

Parking Brake

Flexible Shaft Controlled Caliper

Air Conditioning System

Emergency Brake

Flexible Shaft Controlled Caliper

Heating Capacity(W)

5800 (±10%)

Cooling Capacity(W)

4500 (±10%)
