China Supplier Mafacturing Stationary/pen Heat Transfer Machine/heat Press Machine for Paper and Plastic

China supplier mafacturing stationary/pen Heat transfer machine/heat press machine for paper and plastic

Product parameters:

Heating plate size: 400 × 300mm

Work Table size: 300 × 400mm

Heating power: 3000W

Stamping head adjustable stroke: ≤70mm hot head outer diameter 100mm inner diameter of 80mm

Max stamping diameter: φ300mm

Stamping temperature range of options: from room temperature to 280 degrees Celsius

Workpiece taper Range: 5-20 degrees

Stamping pressure range of options: ≤2500kgf (7bar)

The maximum printing speed: 500pcs / hr

Swing cylinder stroke adjustment range: ≤125mm

Power: 220 / 380V   60 / 50Hz

Air consumption: 165L / min

Dimensions: 1300 × 800 × 1810mm

Features:

An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.

2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3 Stamping pressure, temperature, hot pressing time is adjustable.

4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.

5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.

6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.

11 Equipped with emergency stop safety devices to protect the safety of the operator.

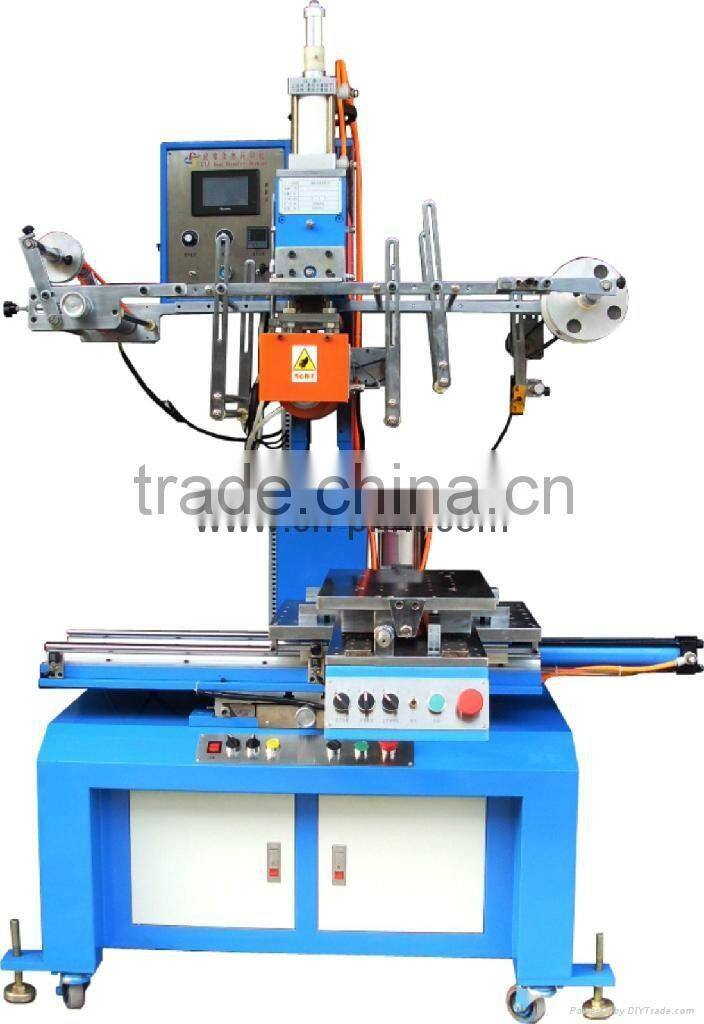

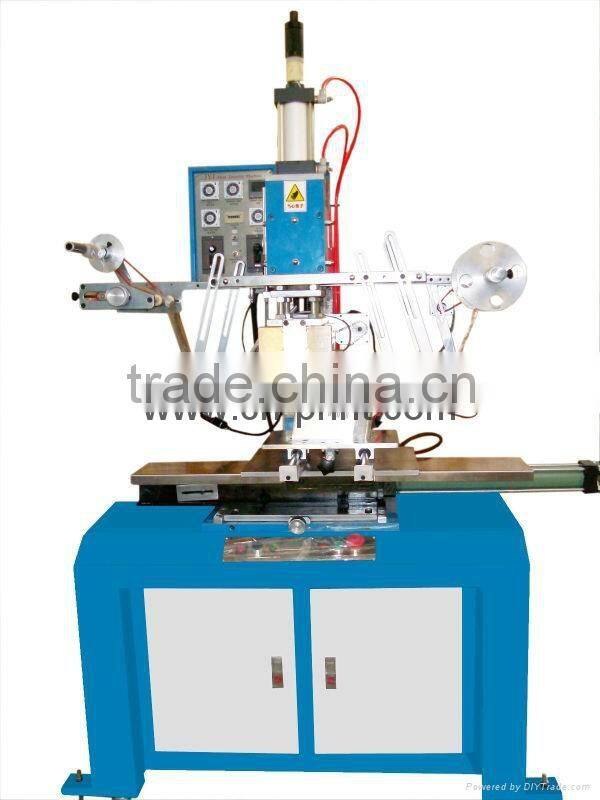

Machine pictures

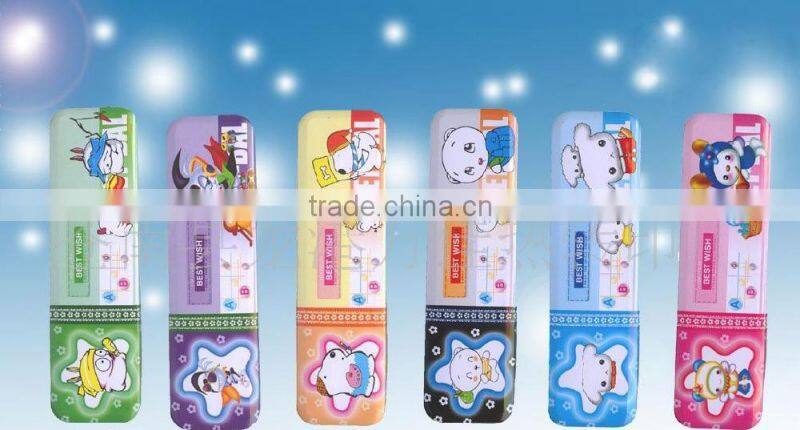

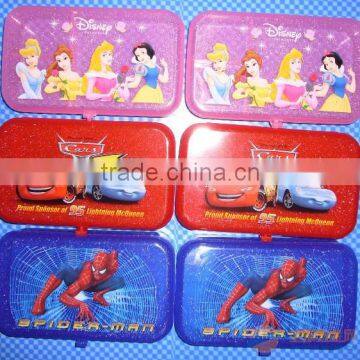

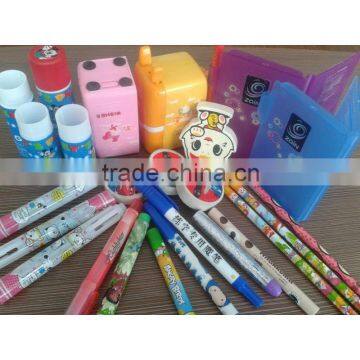

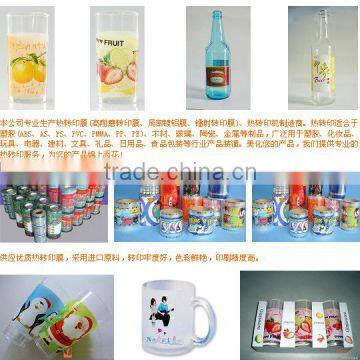

Sample pics

China supplier mafacturing stationary/pen Heat transfer machine/heat press machine for paper and plastic

1.The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.

2.The supplier must sure the machine all work well before package.

3.we will provide the working video after delivery the machines.

4.Welcome your engineers to come to our factory for training.
