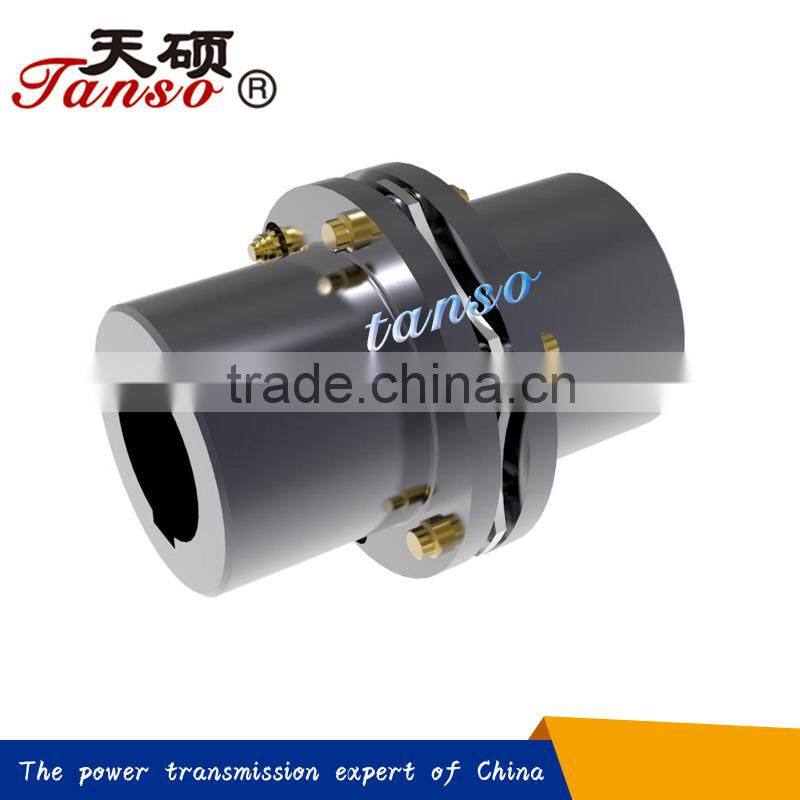

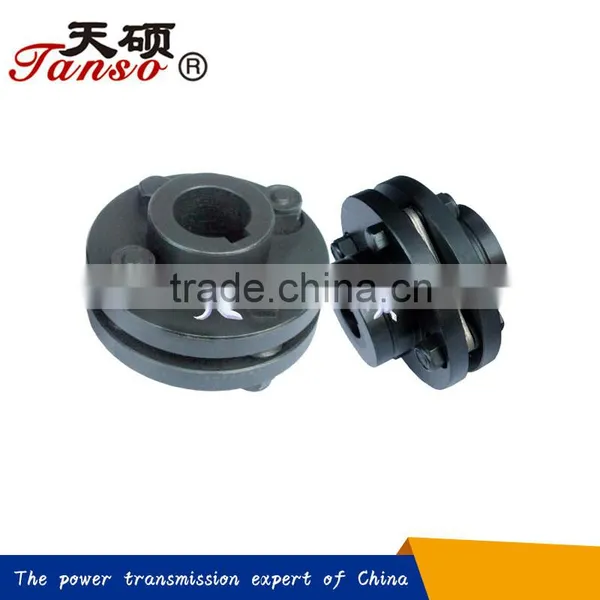

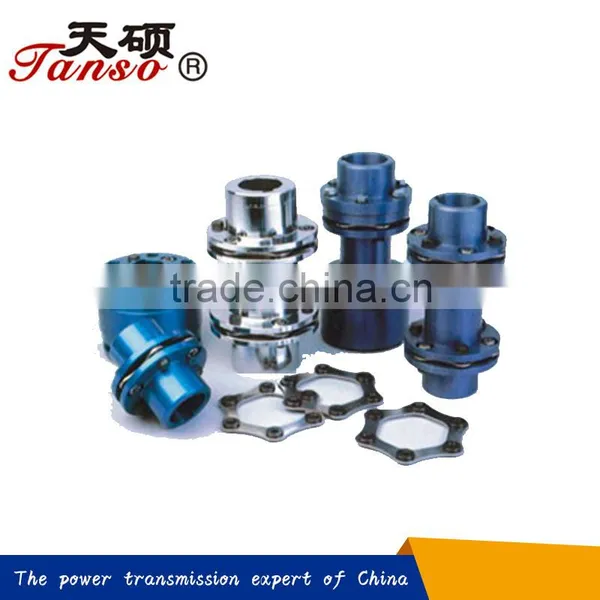

Tanso flexible single Disc coupling
- 20000 Set / Sets per Month
- xingang
Product Details
Structure: | Disc | Flexible or Rigid: | Flexible | Standard or Nonstandard: | Standard |
Material: | Steel | Brand Name: | Tanso | Place of Origin: | Hebei, China |
Model Number: | JM |
Product Description
Introductiong of disc coupling:
Disc coupling: by definition, transmits torque from a driving to a driven bolt tangentially on a common bolt circle. Torque is transmitted between the bolts through a series of thin, stainless steel discs assembled in a pack. Misalignment is accomplished by deforming of the material between the bolts.
A disc coupling is a high performance motion control (Servo) coupling designed to be the torque transmitting element (by connecting two shafts together) while accommodating for shaft misalignment. It is designed to be flexible, while remaining torsionally strong under high torque loads. Typically, disc couplings can handle speeds up to 10,000 RPM.
disc couplings :
Tn /N.m | Tmax /N.m | nmax r/min | d1,d2 | D | D1 | t | ×10 | Kg | kg. | |||
J1Y | L | |||||||||||
L | ||||||||||||
JM1 | 40 | 63 | 10700 | 14-28 | 27-62 | 35 | 80 | 39 | 8±0.2 | 0.37 | 0.9 | 0.0005 |
JM2 | 63 | 100 | 9300 | 20-38 | 38-82 | 40 | 92 | 53 | 0.45 | 1.4 | 0.0011 | |
JM3 | 100 | 200 | 8400 | 25-45 | 44-112 | 45 | 102 | 63 | 0.56 | 2.1 | 0.002 | |
JM4 | 250 | 400 | 6700 | 30-55 | 60-112 | 55 | 128 | 77 | 11±0.3 | 0.81 | 4.2 | 0.006 |
JM5 | 500 | 800 | 5900 | 35-65 | 60-142 | 65 | 145 | 91 | 1.2 | 6.4 | 0.012 | |
JM6 | 800 | 1250 | 5100 | 40-75 | 84-142 | 75 | 168 | 105 | 14±0.3 | 1.42 | 9.6 | 0.024 |
JM7 | 1000 | 2000 | 4750 | 45-80 | 84-172 | 80 | 180 | 112 | 15±0.4 | 1.9 | 12.5 | 0.0365 |
JM8 | 1600 | 3150 | 4300 | 50-85 | 84-172 | 200 | 120 | 2.35 | 15.5 | 0.057 | ||
JM9 | 2500 | 4000 | 4200 | 55-85 | 84-172 | 205 | 20±0.4 | 2.7 | 16.5 | 0.065 | ||
JM10 | 3150 | 5000 | 4000 | 55-90 | 84-172 | 90 | 215 | 128 | 3.02 | 19.5 | 0.083 | |
JM11 | 4000 | 6300 | 3650 | 60-95 | 107-172 | 100 | 235 | 132 | 23±0.5 | 3.46 | 25 | 0.131 |
JM12 | 5000 | 8000 | 3400 | 60-100 | 107-212 | 250 | 145 | 3.67 | 30 | 0.174 | ||
JM13 | 6300 | 10000 | 3200 | 63-110 | 107-212 | 110 | 270 | 155 | 5.2 | 36 | 0.239 | |
JM14 | 8000 | 12500 | 2850 | 65-110 | 107-212 | 115 | 300 | 162 | 27±0.6 | 7.8 | 45 | 0.38 |
JM15 | 10000 | 16000 | 2700 | 70-125 | 107-212 | 125 | 320 | 176 | 8.43 | 55 | 0.5 | |
JM16 | 12500 | 20000 | 2450 | 75-130 | 107-252 | 140 | 350 | 186 | 32±0.7 | 10.23 | 75 | 0.85 |
JM17 | 16000 | 25000 | 2300 | 80-140 | 132-252 | 145 | 370 | 203 | 10.97 | 85 | 1.1 | |
JM18 | 20000 | 31500 | 2150 | 90-160 | 132-302 | 165 | 400 | 230 | 13.07 | 115 | 1.65 | |
JM19 | 25000 | 40000 | 1950 | 100-170 | 167-302 | 175 | 440 | 245 | 38±0.9 | 14.26 | 150 | 2.69 |
JM20 | 31500 | 50000 | 1850 | 110-180 | 167-302 | 185 | 460 | 260 | 22.13 | 170 | 3.28 | |
JM21 | 35500 | 56000 | 1800 | 120-200 | 167-282 | 200 | 480 | 280 | 23.7 | 200 | 4.28 | |
JM22 | 40000 | 63000 | 1700 | 130-200 | 202-352 | 210 | 500 | 295 | 24.6 | 230 | 5.18 | |
JM23 | 50000 | 80000 | 1600 | 140-220 | 202-352 | 220 | 540 | 310 | 44±1 | 29.71 | 275 | 7.7 |
JM24 | 63000 | 100000 | 1450 | 150-240 | 202-410 | 240 | 600 | 335 | 50±1.2 | 32.64 | 380 | 9.3 |
JM25 | 80000 | 125000 | 1400 | 160-250 | 242-352 | 255 | 620 | 350 | 50±1.2 | 37.69 | 410 | 15.3 |
JM26 | 90000 | 140000 | 1300 | 180-260 | 242-410 | 275 | 660 | 385 | 50.43 | 510 | 20.9 | |
JM27 | 112000 | 180000 | 1200 | 190-280 | 282-470 | 295 | 720 | 410 | 60±1.4 | 71.51 | 620 | 32.4 |
JM28 | 140000 | 200000 | 1150 | 220-300 | 282-470 | 300 | 740 | 420 | 93.37 | 680 | 36 | |
JM29 | 160000 | 224000 | 1100 | 240-320 | 330-470 | 320 | 770 | 450 | 114.53 | 780 | 43.9 | |
JM30 | 180000 | 280000 | 1050 | 250-340 | 330-550 | 350 | 820 | 490 | 130.76 | 950 | 60.5 |
