Jaw flexible coupling
- 200000 Set / Sets per Month
- xingang
Product Details
| Structure: | Jaw / Spider | Flexible or Rigid: | Flexible | Standard or Nonstandard: | Standard |
| Material: | Stainless Steel | Brand Name: | Tanso | Place of Origin: | Hebei, China |
| Model Number: | FCL |
Product Description
This is Jaw flexible coupling .
Feature:
1 FL jaw flexible coupling:
a) Applicable to all types of machinery and hydraulics
b) Small volume and large transmitted torque
c) To be plugged in axially, easy assembly, maintenance-free
d) Balancing axial, radial and angular misalignment
e) Dimensions of bore d,d1 available on customers requests
f) Applicable from -40 to +100°, temperature peaks up to 120°

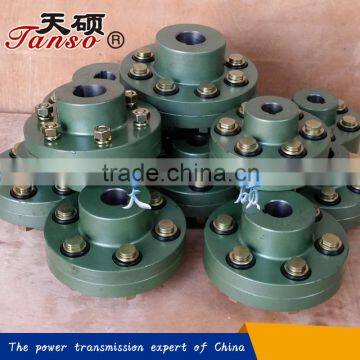

2.FCL flexible coupling
a)Flexible coupling model FCL is widely used for its compact designing ,easy installation, convenient maintenance, small size and lightweight
b)As long as the relative displacement between shafts is kept within the specified tolerance, FCL flexible coupling will operate the best function and have a longer working life
c)Greatly demanded in medium and minor power transmission systems driven by motors, such as speed reducers ,hoists ,compresses ,conveyers ,spinning and weaving machines and ball mills
dPermitted relative displacementI)Radial displacement 0.2-0.6mm II)Angel displacement: 0°0' - 1°30'

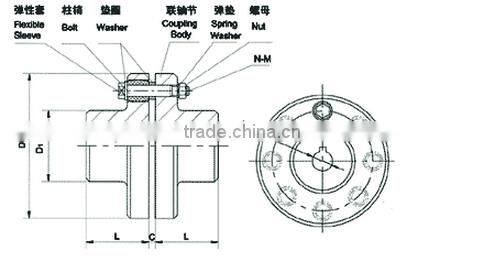

Type |
| | D | D 1 | d 1 | L | C | n-M | Mass |
FCL90 | 4 | 4000 | 90 | 35.5 | 11 | 28 | 3 | 4-M8×50 | 1.7 |
FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10×56 | 2.3 |
FCL112 | 16 | 4000 | 112 | 45 | 13 | 40 | 3 | 4-M10×56 | 2.8 |
FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12×64 | 4.0 |
FCL140 | 50 | 4000 | 140 | 63 | 13 | 50 | 3 | 6-M12×64 | 5.4 |
FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12×64 | 8.0 |
FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12×64 | 10.5 |
FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20×85 | 16.2 |
FCL224 | 392 | 2850 | 224 | 112 | 21 | 80 | 4 | 8-M20×85 | 21.3 |
FCL220 | 618 | 2550 | 250 | 125 | 25 | 90 | 4 | 8-M24×110 | 31.6 |
FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24×116 | 44.0 |
FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24×116 | 57.7 |
FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30×50 | 89.5 |
FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30×150 | 113 |
FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30×150 | 145 |
FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30×150 | 229 |
FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30×150 | 296 |
