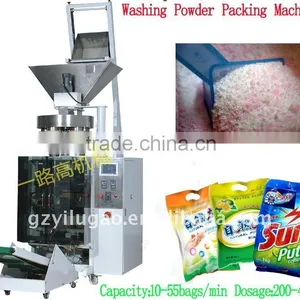

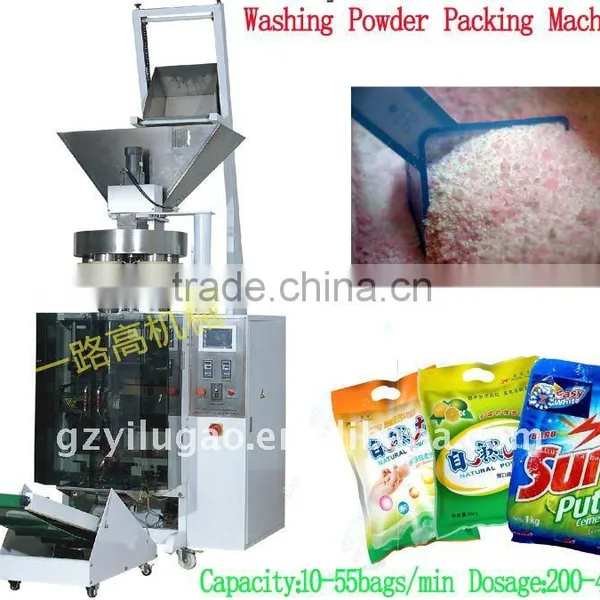

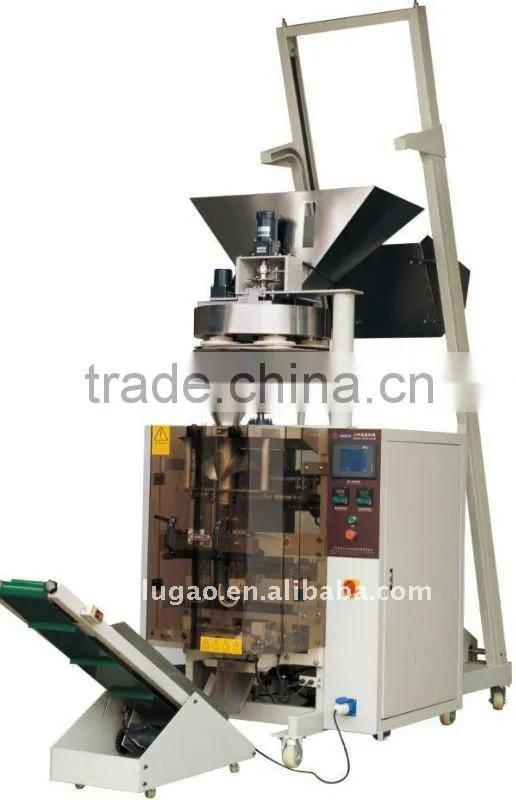

Granules Packing Machine

Specifications

Granules Packing Machine
Speed: 10-55bags/min
Type of Seal:Center Seal
Material:washing powder/suger/coffee/peanuts etc

Features:

1. Simple and compact in design
2. Require Single Phase power supply only
3. Low maintenance and low operating cost
4. With PLC control System (Optional)



Usage:
Suitable for the packing of products Such as sweets,sesame,sugar,salt,peanuts,spice,rice,corn,melon seeds,shrimp,oatmeal,instant drink,desiccant,pepper,washing powder, nuts seeds, grain,cocoa powder,instant coffee and tea etc.

-
Description:
Machine adopts a Japan Mitsubishi PLC programmable controller and matches with English and Chinese display screens. It is controlled by Micro-computer operation interface. Thus, it's easy to operate, convenient in adjustment and super automatic. Can set the length of bag with fully automatic by micro-computer control center.

Machine body is full stainless steel. Measured with granule measure cups system, this machine can be adjusted at will in the rated materials, and finish the functions such as bag making, measuring, filling, sealing, cutting, counting and produce date printing in the meanwhile.

Photoelectric tracking system and two way compensate function are adopted to ensure the automatic correcting of double face printing design on packing bag. It can setup the pouch length directly at the tender side at the same time, and do step-less adjustment to the pouch length at the pouch length range.

-
Technical Parameters:
Model:                            DXD-730K

pouch length:                   300 mm adjustable
Pouch width:                    80-380mm ( change formers)
Style of pouch making:      back seal,
Max packing speed:          10-40pcs/min (depend by material and specification)
Packing dose:                  50-500g/pouch,500-1000g/pouch
Packing film:                    PET/AL/PE PET/PE NY/AL/PE NY/PE etc composite film.
Electric source:                220V, 50HZ , single phase (do as customers request)
Total power:                    3.6KW
Package size:                  1100 L* 750W * 1800H (mm)

For more information, please send inquiry to me. Thank you.
