Product Details
Place of Origin: | Shandong, China | Brand Name: | Haiyu | Model Number: | HY-PS400A |
Power: | Electronic | Usage: | Auto Testing Machine |
Packaging Details
carton package fit for delivery
Product Description
Specifications
1.PS400A Nozzle Tester2.test normal injector
nvenient and direce operation
4.stable performance
5.fast delivery

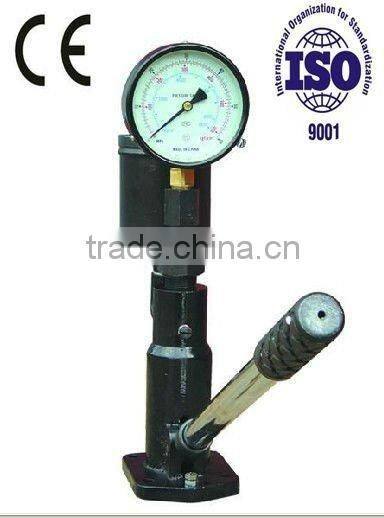

PS400A Nozzle Tester
Introduction:
Nozzle Verifier is used to adjust and check the injection pressure, atomization quality, and leakproofness of needle valve of diesel fuel injector assembly, to ensure the good power performance and economy.
Main Function:
1. detection of diesel fuel injection pump injector ASSY
2. injector opening pressure
3. atomization quality
4. injection angle
5. test the leakproofness of the injector
Configuration:
1. Diameter of pressure gauge: 100mm
2. Pressure gauge range: 0∼60MPa
3. Pressure gauge accuracy rating: 1.6
4. Largest tested pressure: 60MPa
5. Capacity of fuel tank: 0.5L
6. Overall dimension (L×W×H): 110mm×90mm×300mm
7. Net weight: 7Kg
