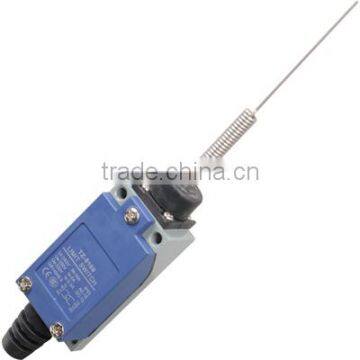

kontron TZ/ME seris 10A 8169 limit switch
USD $2 - $3
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | KONTRON | |
| Model Number | TZ8169 | Protection Level | IP65 | |
| Operating Temperature | -25-65C | Max. Current | 10A | |
| Max. Voltage | 250VAC |
Product Description
switch
| OF (MAX) | 750g | 750g | 750g | 900g | 150g | |
| RF(MIN) | 100g | 100g | 100g | 150g | ||
| PT(MAX) | 20 ° | 20 ° | 20º | 1.5mm | 1.5mm | |
| OT(MIN) | 50 ° | 50 ° | 50º | 4mm | 4mm | |
| MD(MAX) | 12° | 12º | 12º | 1mm | 1mm | |
| OP | - | - | - | 26+_0.8mm | 37+0.8mm |
| operation speed | 0.5mm-50cm |
| action frequency | Ele:120op;mech:30operations |
| contact resistance | 25m Ω |
| insulation resistance | 100MΩ |
| bearing voltage | 1000VAC 50/60HZ/1M |
| Vibration | 10-55HZ 1.5mm double amp |
| hitting | machinery durable:1000m/S |
| ambient | -25-65c |
| service | mech:1000000 ops ele:100000 ops |
| weight | 130-190 gram |
