Home > Products > Bandsaw Machine > GZX4235 cnc angle band saw sharpening machine

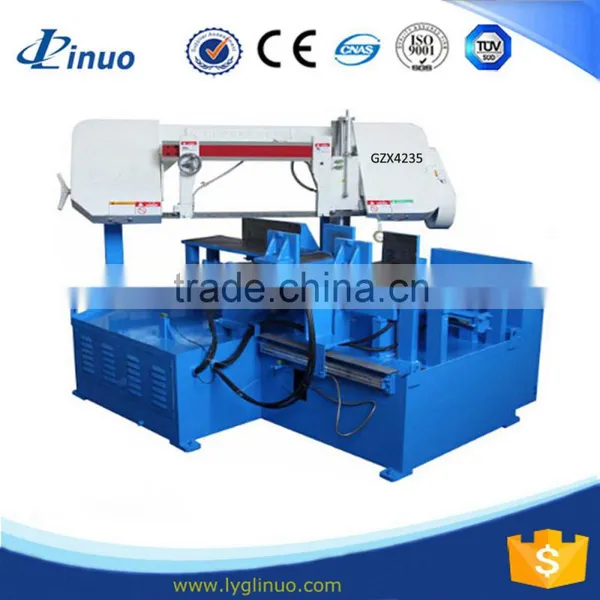

GZX4235 cnc angle band saw sharpening machine
- 50 Set / Sets per Month
- Ningbo for GZX4235 cnc angle band saw sharpening machine
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | LINUO |
Model Number: | GZX4235 | Voltage: | 380V 50HZ | Rated Power: | 3KW |
Dimension(L*W*H): | 2300*2100*1500 | Weight: | 2000KG | Certification: | ISO9001 |
Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
GZX4235 cnc angle band saw sharpening machine
Product Description for GZX4235 cnc angle band saw sharpening machine

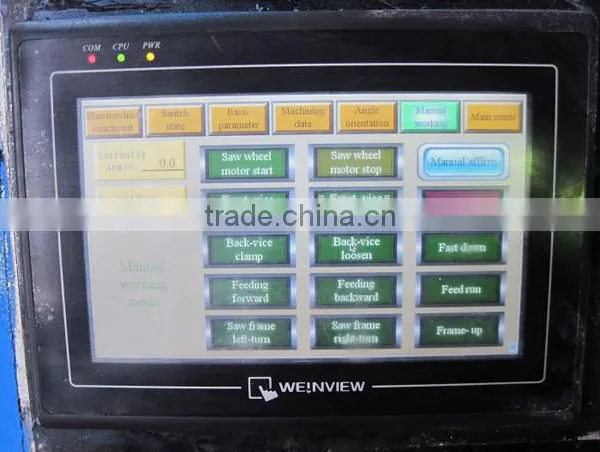

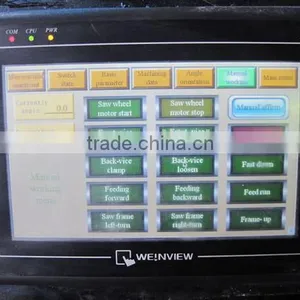

1.A human-machine interface replaces a traditional control desk digital saw cutting parameter can be set
2. PLC (programmable logic controller) for flexible setting and change of sawing modes.
3.Feeding position can be controlled by grating scale,position error is less than 0.2mm
4.Band saw machines with numerical control are applicable to numbers of uniform material saw cutting.They have stable performance and high efficiency.
Type Specification | Unit | GZX4230 | GZX4235 | GZX4240 | GZX4245 | |
Max. Cutting Diameter | mm | 90° | Round: Φ300 Plate:350*220 | Round: Φ350 Plate:350*220 | Round: Φ400 Plate:400*500 | Round: Φ450 Plate:450*700 |
mm | 45° | Round: Φ300 Plate:280*220 | Round: Φ350 Plate:280*220 | Round: Φ400 Plate:280*220 | Round: Φ450 Plate:450*450 | |
Blade Speed | m/min | 27,38,49,71 (Stepless Speed) | 27,38,49,71 (Stepless Speed) | 20,30,37,53 (Stepless Speed) | 12-60 (Stepless Speed) | |
Blade size | mm | 1.1*34*4320 | 1.1*34*4320 | 1.1*41*4740 | 1.3*41*5500 | |
Main motor power | kw | 3 | 3 | 3 | 4 | |
Hydraulic | kw | 0.37 | 0.37 | 0.37 | 1.5 | |
Coolant pump | kw | 0.08 | 0.08 | 0.08 | 0.085 | |
Machine Size (L*W*H) | mm | 2300*2100*1500 | 2300*2100*1500 | 2300*2100*1500 | 3900*2320*2100 | |
Weight | kg | 1600 | 2000 | 2500 | 3500 |
Production&Workshop for GZX4235 cnc angle band saw sharpening machine
Packaging&Shipping for GZX4235 cnc angle band saw sharpening machine
Customer&Expo for GZX4235 cnc angle band saw sharpening machine
Companny information for GZX4235 cnc angle band saw sharpening machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for GZX4235 cnc angle band saw sharpening machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
