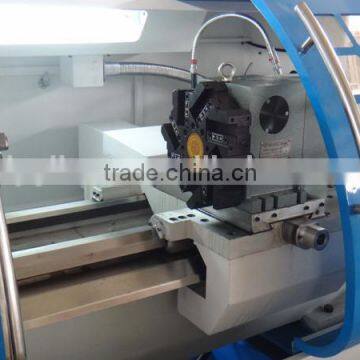

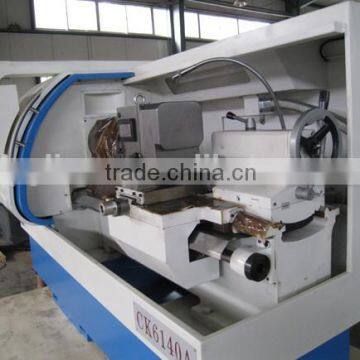

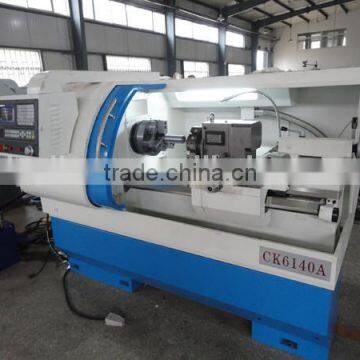

CK6140A*750 CNC lathe
Product Description for CK6140A*750 CNC lathe
| Item | Unit
| Technical parameters | |||
CK6136A-1 | CK6136A-2 | CK6140A | |||
Max. rotation diameter over bed | mm | φ360 | φ400 | φ400 | |
Max. rotation diameter over pallet | mm | φ210 | φ245 | φ245 | |
Max. workpiece length | mm | 650 | 750 | 750 | |
Bed foot structure |
|
Overall bed foot | |||
Bed width | mm | 330 | |||
Main transmission form |
|
Independent spindle | |||
Spindle speed mode |
|
Frequency stepless speed | |||
Spindle speed range | r/min | 200-2500 | |||
Spindle head form |
| 6-A2 | |||
Spindle bore | mm | φ60 | |||
Spindle hole outside taper |
| MT6 | |||
Chuck diameter | mm | φ200 | φ200 | φ250 | |
Main motor power | kw | 4 | 4 | 5.5 | |
Turret maximum stroke | mm | X:260 Z:760 | |||
Fast-moving feed | mm/min | X:6000 Z:8000 | |||
Repeat positioning accuracy | mm | X:0.01 Z:0.015 | |||
Workpiece accuracy |
| IT6-IT7 | |||
Workpiece surface roughness |
| Ra1.6 | |||
Dia. of tailstock quill | mm | φ60 | |||
Tailstock quill stroke | mm | 120 | |||
Taper of tailstock quill |
| MT4 | |||
Repeat positioning accuracy | mm | 0.008 | |||
Section of turning tool | mm | 20×20 | 20×20 | 25×25 | |
Size (L×W×H) | mm | 2000×1450×1650 | 2100×1400×1650 | 2100×1400×1650 | |
Net weight | kg
| 1700 | 2000 | 2000 | |

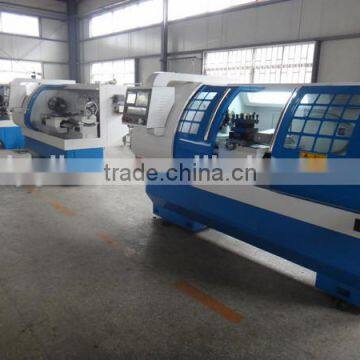

Production&Workshop for CK6140A*750 CNC lathe
Customer&Expo for CK6140A*750 CNC lathe
Packaging&Shipping for CK6140A*750 CNC lathe
Our services for CK6140A*750 CNC lathe
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
