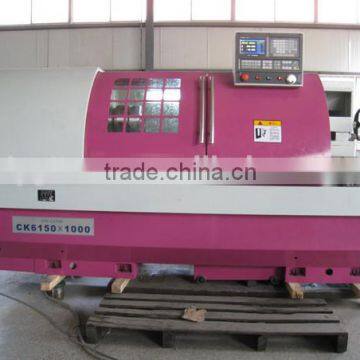

CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
- 50 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 500mm | Place of Origin | Shandong, China | |
| Brand Name | linuo | Model Number | CK6150A*1000 | |
| Voltage | 380v 3phase or as customer | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 2970 mm*1560 mm*2110mm | Weight | 3500kg | |
| Certification | CE, ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
Product Description for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
1.Technical parameters
Item | Unit | Technical parameters | ||
CK6150A | CJK6150B-2 | CK6150A-1 | ||
Maximum tactical diameter of the lathe’s body | mm | φ500 | φ500 | φ500 |
Maximum tactical diameter of work-piece on the sliding plate | mm | φ300 | φ300 | φ290 |
Maximum workpiece length | mm | 750/1000 | 750/1000 | 750/1000 |
Bed foot structure |
| Overall bed foot | Overall bed foot | Separate bed foot |
Lathe bed width | mm | 400 | 400 | 360 |
Main transmission form |
| Independent spindle | Three gears | Independent spindle |
Speedmode |
| Frequency stepless speed | ||
Range of spindle speed | r/min | 150~2000 | 36~1600 | 150~2000 |
The form of the spindle head |
| 8-D | 8-D | 8-A2 |
Hole diameter of spindle | mm | φ82 | φ82 | φ70 |
Spindle centering axial taper |
| 1:4 | ||
Spindle taper |
| 1:20 | ||
Chuck dia. | mm | φ250 (φ320) | φ250 (φ320) | φ250 |
Main motor power | KW | 7.5 | ||
Turret maximum stroke | mm | X:320; Z:760/1020 | X:320; Z:760/1020 | X:300; Z:760/1020 |
Fast-moving feed | mm/min | X:6000 Z:8000 | ||
Repeat positioning accuracy | mm | X:0.01 Z:0.015 | ||
Workpiece accuracy |
| IT6-IT7 | ||
Workpiece surface roughness |
| Ra1.6 | ||
Dia. of tailstock quill | mm | φ75 | φ75 | φ70 |
Tailstock quill stroke | mm
| 180 | 180 | 120 |
Taper of tailstock quill |
| MT5 | ||
Repeat positioning accuracy | mm | 0.008 | ||
Section of turning tool | mm | 25×25 | ||
Size(L×W×H) | mm | 2650/3200×1600×1700 | 2650/3200×1600×1700 | 2300/2600×1500×1600 |
Net weight | Kg | 3200/3500 | 3200/3500 | 2900/3200 |
standard configuratins
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication system, coolant system, lighting system
4. Manual 3-jaw chuck Φ250mm
5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.Standard unit tools, packing list
8.english version manual instruction
9. one year warranty freely
Production&Workshop for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
Packaging&Shipping for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
Customer&Expo for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
Companny information for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for CK6150A*1000 manual chuck hydraulic tailstock flat type cnc lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
