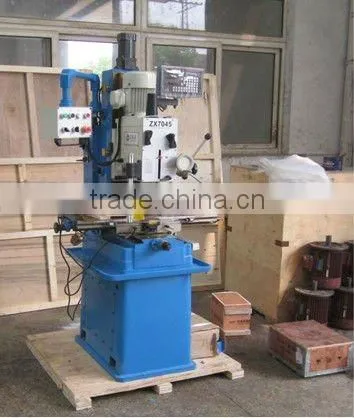

drilling and milling machine zx7045

Specifications

1.mini milling and drilling machine.
2.Vertical mini milling machine.
3.CE and ISO9001 certificate
petitive price

 drilling and milling machine ZX7045



Features:



Applications:

The ZX7045 simple mini milling and drilling machine is with milling,drilling,boring,mill,tapping and other cutting functions..And some parts headstock can turn to 90° at port and starboard side in the vertical plane,working table area can cross slide vertically in the horizontal plane,also can turn to 45° at port and starboard side.



It is suitable for processing of the medium and small-size workpiece,especially cutting of non-ferrous materials,plastic,nylon.It has a simple structure,flexible operation,etc.



It is widely used in the single or batch machinery manufacturing,instrument industry,architectural decoration and repair department.



Main technical specification:



Item Parameter  Max.drilling capacity(iron/steel)  31.5/45mm  Max.mill capacity(face/end)  80/32mm  Spindle taper  MT3/MT4/R8/ISO30  Worktable size  800×240mm  Worktable travelX/Y  570/230mm  Head tilt left right  90°  Spindle travel  130mm  Spindle nose to worktable  470mm  Spindle center to column surface  285mm  Spindle speeds range(2 steps)  12steps:75-3200r/min  motor  0.85/1.1kw  N.W/G.W  300/350KG  Packing size(L×W×H)  1140×960×2240mm  20’Container  12 sets

Standard Accessories Optional Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun Cooling system,Working light,Spindle power down feeder,DRO,depth indicator,spring collet,vices,milling collet ,milling clamp.
