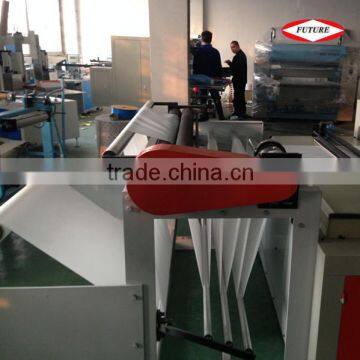

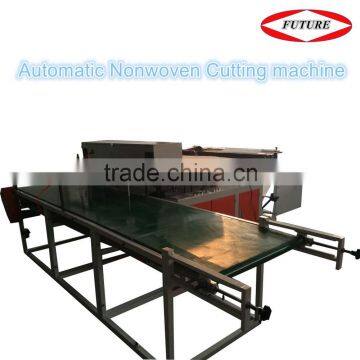

Manufacture automatic slitting machine and cutting machine
Main Characteristics:
1,The device workflow: photoelectric control discharge conveyor slice synchronization is complete,auto transfer the cutted material on the tape.
2.The apparatus for the production speed 40-120 pieces per minute (according to the specific characteristics of the various fabrics to be).
3.The device host microcomputer control, cutting length set and cut, cutting length can also be optical tracking cutting, cutting precise size.
4.Discharge with a tension control device. Stepper motor to pull material, smooth operation.
5.The device is equipped with photoelectric sensors combine high-quality DC motor control feeding, so that feeding higher accuracy.
6.The device adopts frequency speed control, electrical wiring specifications reasonable, clean, safe and easy to operate.
7.The overall frame of international steel molding, surface treatment for rust, machine platen must do all rust paint treatment, precision welded frame size, frame appropriately reinforced, pulleys, gears and transmission parts center Accuracy of all, ensure the machine running smooth, machine two years there will not be out of plastic phenomenon.
8.Host is equipped with five pneumatic cutter,to adjust the width of the fabric.Safe operation,easy and convenienct.At the same time equipped with anti-static device to prevent fabric in motion, static and impact cut.
Application:
Suitable for paper, non-woven fabrics, plastic films, cloth and other material easy to cut.
| Device Technical parameter: | |
| Type | FQ - CN - 1200 |
| Wide of material (Max) | 1200 mm |
| Dia of material (Max) | 1100 mm |
| Cutting length (Max) | 1999 mm |
| Cutting speed | 40 - 120 pcs/min |
| The power | 4.5 Kw |
| Air pressure | < 1.0 Mpa |
| Longitudinal cutter | 5 pcs |
| Dimension of main machine(L*W*H) | 3000 * 1400 * 1350 mm |
| Dimension of conveyor(L*W*H) | 3600 * 930 * 1000 mm |
| Total weight | 1380 kgs |
Hangzhou Future Machinery & Technology Co., Ltd.
We are profession manufacturer pleat machine,filter machine,polyurethane machine,cross cutting machine and bag-making machine.We also custom the assembly production line and other machines for our customers. We welcome your company visit our factory view the machines quality.
