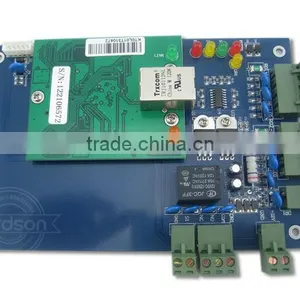

Nordson PC Based Access Control System.

Unit Size

160mm *106mm

Unit Packing Way

Brown Neutral box

Unit Packing Size

214mm*143mm*36mm

Accessories

User Manual, warranty card

Function Introduction

Conventional Function

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function

for professional users such as bank,cash house, telecom station, power supply station, prison and plice station: interface locking; intimidation alarm; integrated fire control; anti-passback and anti-tail; interlocking; multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

all-in-one-card management system

normal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Parameter

Communication

TCP/IP

English  Software supportable database:

SQL

Description

Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button

Power Supply

12VDC; 4-7A

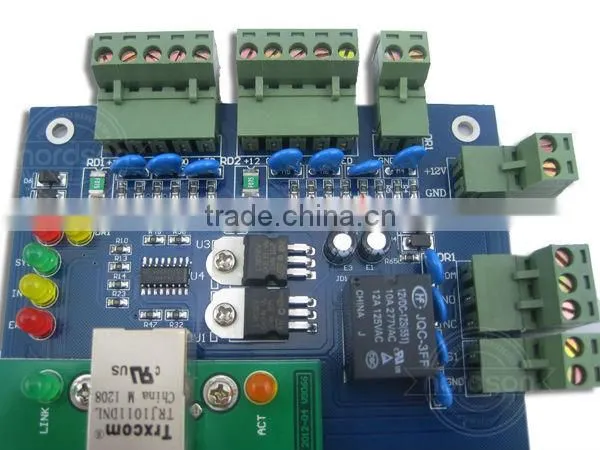

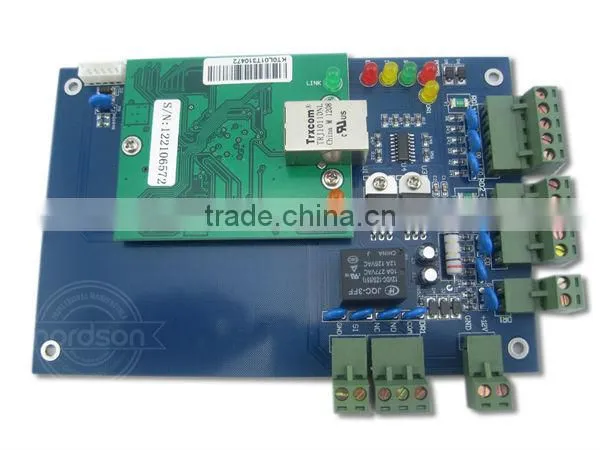

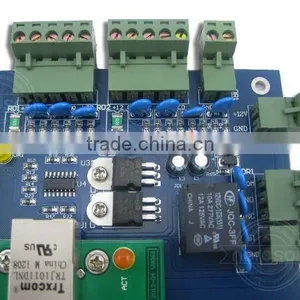

Power Consumption of Circuit Board

Less than 100mA

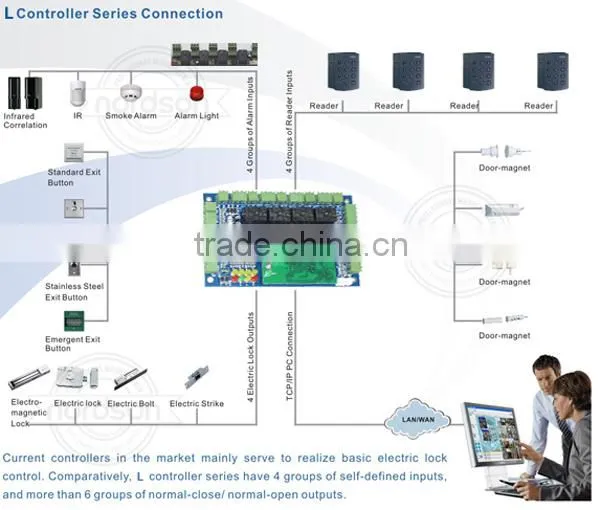

Input Format of Reader

Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)

Quantity of Readers

2 pcs

Door Controlled

1

Door opening time extending setting

1-600 Seconds(adjustable)

Max q ' ty of controller

Unlimited

Operation Temperature

-40℃-70℃

Operation Humidity

10-90 % RH, No Condensation

Q ' ty of users

20,000 Users

Q ' ty of Event Buffers(offline)

100,000 Event Buffers

Power interruption protection measure

High Speed Memory, Records never lose

Max Distance from Reader to Controller

100M (suggestion distance 80M)

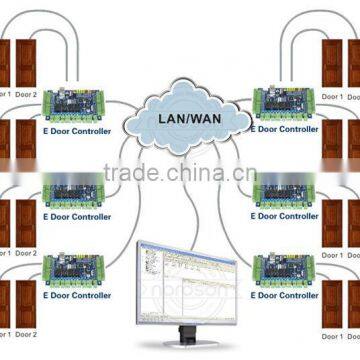

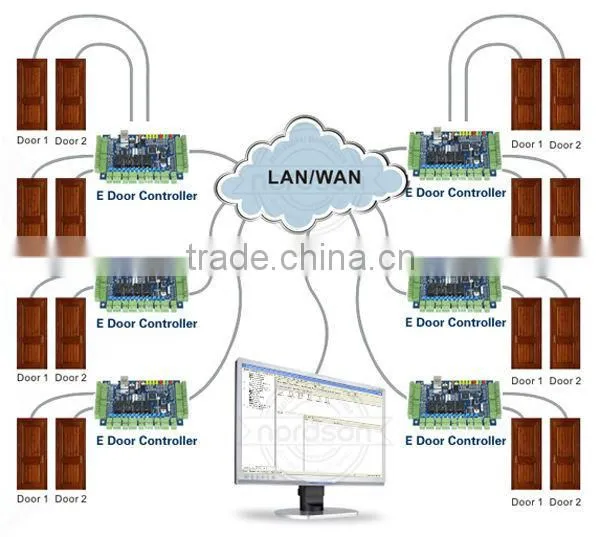

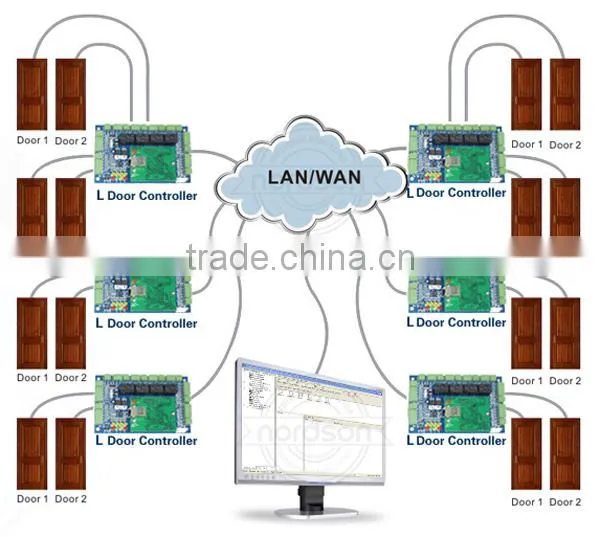

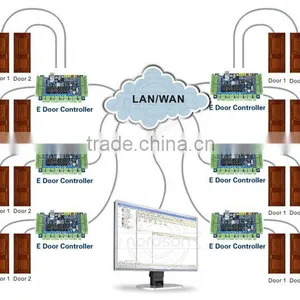

Max Distance between Controllers

Depand on network range

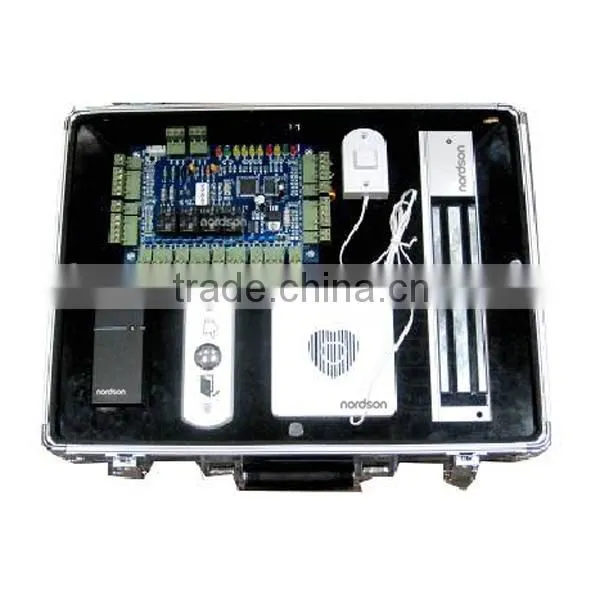

Collocations

PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton

Alarm for long time door open, illegal break in, intimidate

Yes

Fire and alarm linkage

If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Compulsive open and close door at long time

Yes

Open door in remote distance

Yes

Inter block

Yes

Anti pass back and tail

Yes

Multi-card open door

Yes

Open long time at specified time

Yes

Electronic map

Yes

Urgency locking

Yes

First card unlocking

Yes

Unlock based on internal and external validation

Yes

Keypad (card+passwor, supper password)

Yes
