M7450 vertical spindle surface grinder machine
- 50 Set / Sets per Month
- Qingdao for M7450 vertical spindle surface grinder machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MK7350 siemens 808D system cnc rotary table surface grinder machine
-
low price round table surface grinding machine for sale
-
M618A,M820,M1022,M250 horizontal small surface grinding machine
-
hand control manual surface grinding machine tool factory
-
horizontal type small size manual surface grinder machine
-
MY1230 MY7030 hydraulic surface grinder for sale
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 500mm | |
| Max. Grinding Length | 500mm | Place of Origin | Jiangsu, China | |
| Brand Name | Linuo | Model Number | M7450 | |
| Voltage | 380V 50Hz | Power(W) | 25kw | |
| Dimension(L*W*H) | 1760*950*2200mm | Weight | 4000kg | |
| Certification | ISO9001 CE | After-sales Service Provided | Overseas service center available |
Product Description

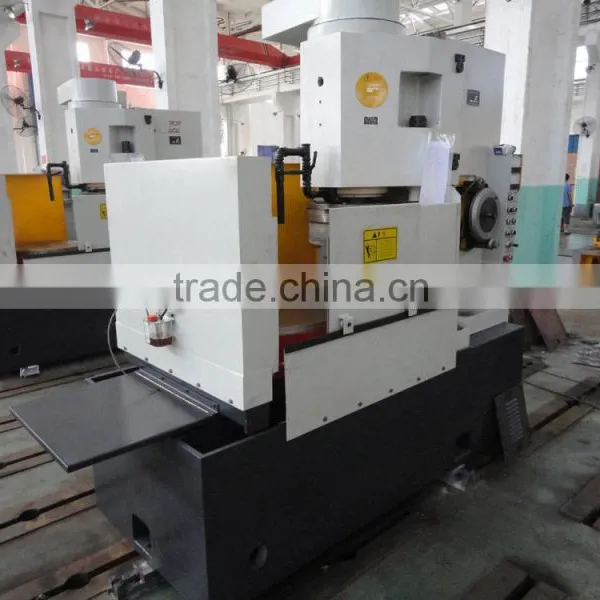

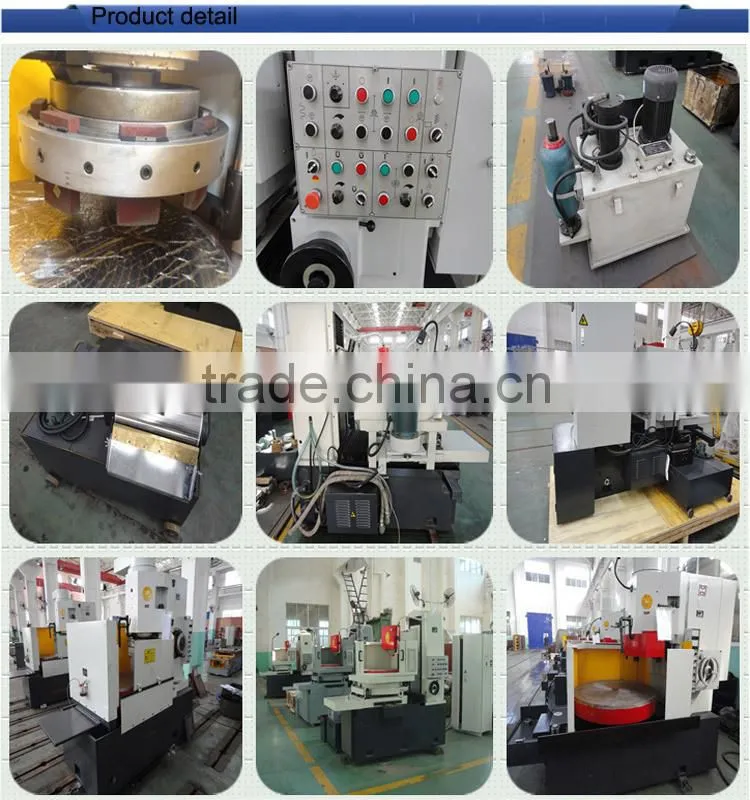

M7450 vertical spindle surface grinder machine
Product Description for M7450 vertical spindle surface grinder machine

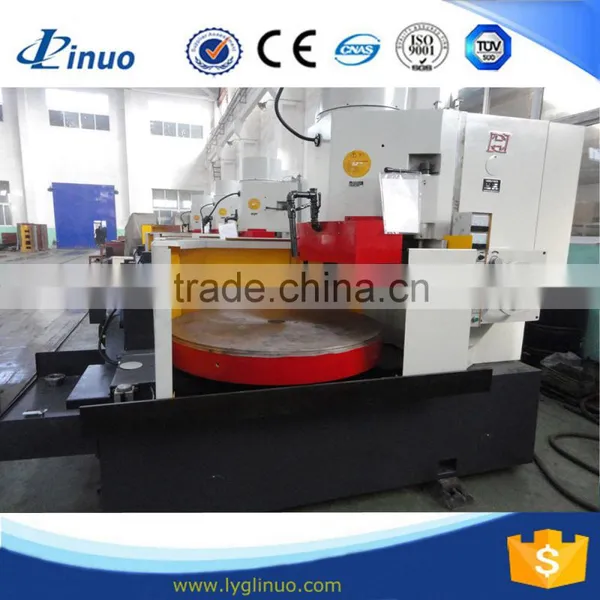

The series of this machine tools have been improved greatly in rigidity of the bed and grinder head.The three-point adjustment has been adopted and ills mechanism is compact.The bench is a round,strong electro-magnetic chuck,the magnetic force of which is smooth and discharging of the magnetic force is through the controlled silicon.it has also the characteristic of coolent purifying equipment.
This series of machine is mainly used to grind blank and general precision large parts of the surface roughness than 0.8,parallel degree within 0.02/1000 mm.
Therefore,especially suitable for the grinding of the industries of metallurgy, saw blades ,automobiles,tractors, tools, bearings and other large components.
NO. | Name | unit | Parameters |
1 | Table diameter | mm | Φ540 |
2 | Attraction scope of electromagnetic bench | N/cm | 80-120 |
3 | Work piece grinding the maximum size (Diameter × height) | mm | Φ500*300 |
4 | Wheel Size(w*h*l) | mm | Wheel:350*125*280
|
5 | Workbench rotation speed | r/min | 20 |
6 | Bench shifting distance | mm |
|
7 | Bench shifting speed | m/min |
|
8 | Workbench rotational motor power | kw | 2.2 |
9 | Bench shifting motor power | kw |
|
10 | Grind head main shaft rotational speed | r/min | 940 |
11 | Grind head mobile shifting speed | m/min | 0.35 |
12 | Grind head motor power | kw | 22 |
13 | Grind head lift motor power | Kw | 0.55 |
14 | Vertical movement of grind head per turn of handwheel | mm | 0.4 |
15 | Vertical movement of grind head per scale of dial | mm | 0.01 |
16 | Vertical movement of grind head per turn of dial | mm | 1.0 |
17 | Pump motor power50-65 | Kw | 0.12 |
18 | Total power of machine | kw | 25 |
19 | Machine Packing Dimensions (L W H) | mm | 1760*950*2200mm |
20 | Gross / Net weight | Kg | 4000kg |

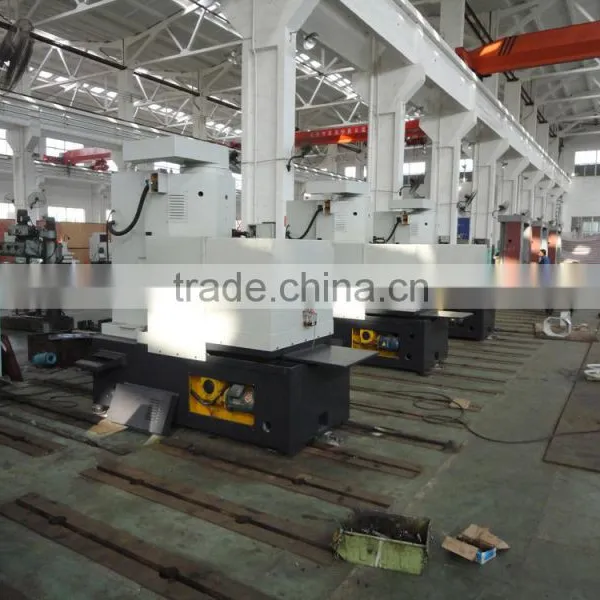

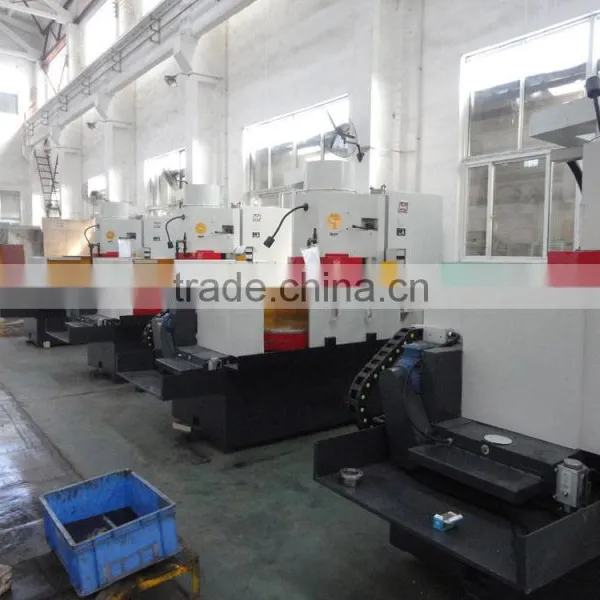

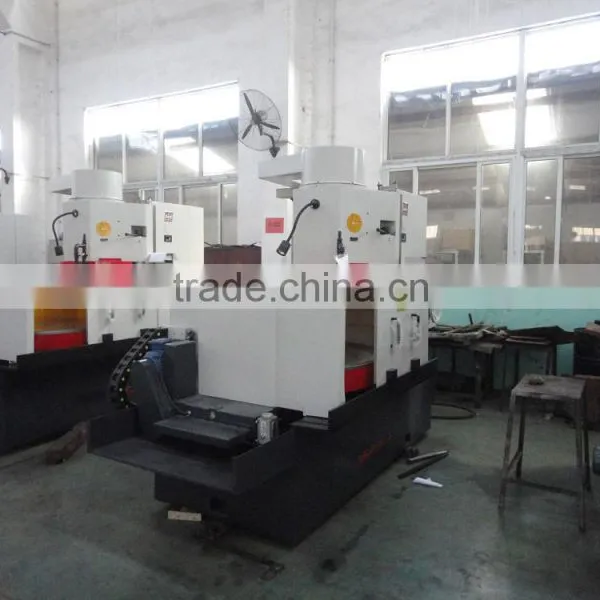

Production&Workshop for M7450 vertical spindle surface grinder machine
Packaging&Shipping for M7450 vertical spindle surface grinder machine
Customer&Expo for M7450 vertical spindle surface grinder machine
Companny information for M7450 vertical spindle surface grinder machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for M7450 vertical spindle surface grinder machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
