PLC control hydraulic saddle moving surface grinding machine
- 50 Set / Sets per Month
- Qingdao for PLC control hydraulic saddle moving surface grinding machine
- T/T L/C D/P D/A Credit Card PayPal
-
SGA30100AHR precision flat surface grinding machine
-
SGA4080AHR HDCNC hydraulic surface grinding machinery
-
high precision best quality hydraulic saddle moving surface grinding machine
-
SG2050AH,SG2050AHR,SG2050AHD easy operation saddle moving surface grinding machine
-
SG-250 manual grinder
-
SG-200 manual surface metal grinder
Product Details
| Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
| Max. Grinding Diameter: | 450mm | Max. Grinding Length: | 560mm | Place of Origin: | Jiangsu, China |
| Brand Name: | linuo | Model Number: | SGA2550AHR | Voltage: | 380V |
| Power(W): | 3.7KW | Dimension(L*W*H): | 2000*2100*2100mm | Weight: | 1800kg |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

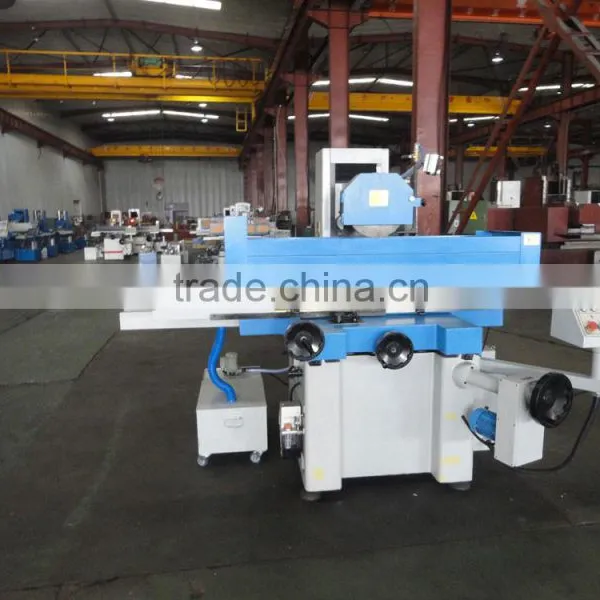

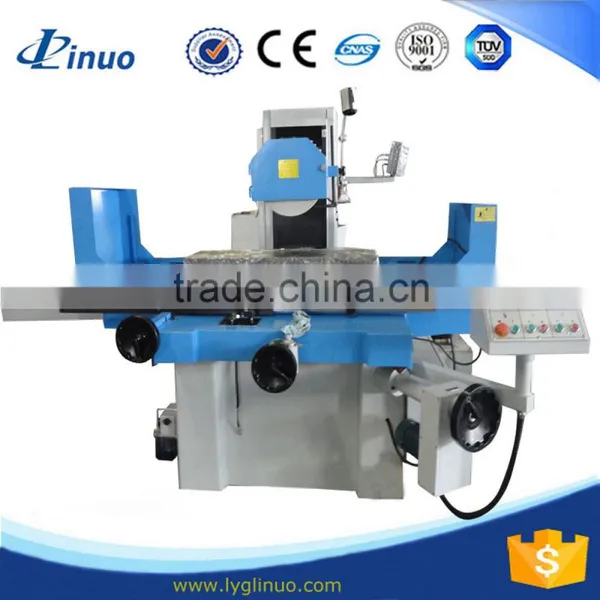

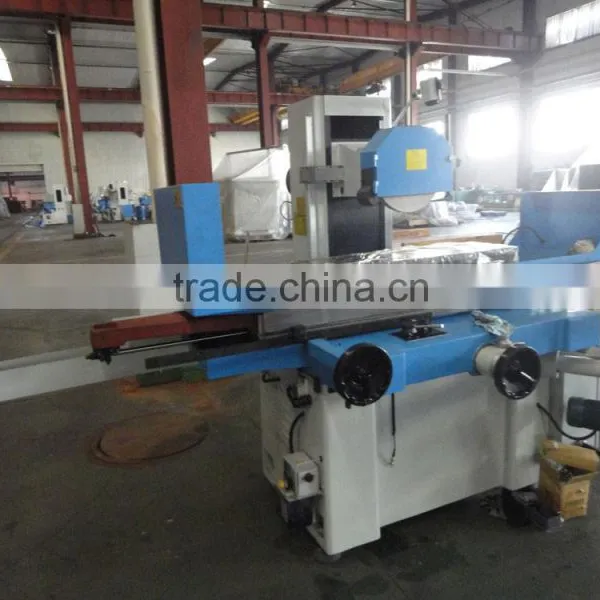

PLC control hydraulic saddle moving surface grinding machine
Product Description for PLC control hydraulic saddle moving surface grinding machine

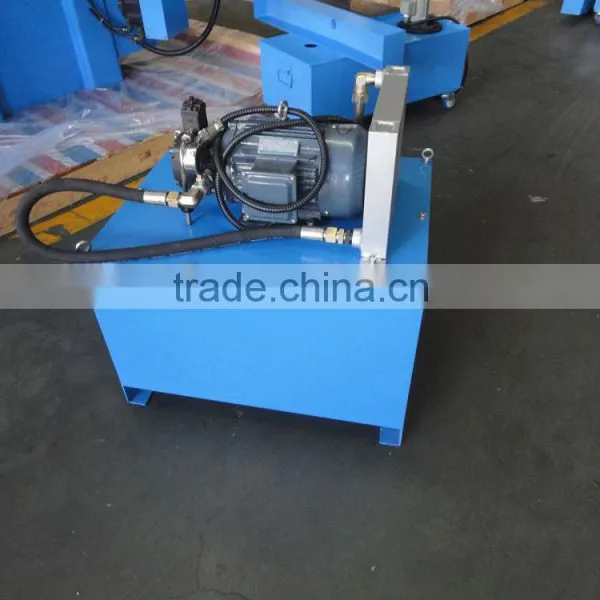

The surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind equipment for metal working. The well designed structure have good rigidity and keep the machine with high accuracy.Well designed and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
| SG2050AH SG2050AHR SG2050AHD | SGA2550AH SGA2550AHR SGA2550AHD | SGA3063AH SGA3063AHR SGA3063AHD | SG30100AH SG30100AHR SG30100AHD | SG4080AH SG4080AHR SG4080AHD | SG40100AH SG40100AHR SG40100AHD | |
TABLE SIZE | 200*460 | 254*508 | 305*635 | 305*1020 | 406*813 | 406*1020 | |
LONGITUDINAL TRAVEL | 510mm | 640mm | 765mm | 1130mm | 910mm | 1130mm | |
CROSS TRAVEL | 238mm | 300mm | 340mm | 340mm | 450mm | 450mm | |
MAX DISTANCE FROM SPINDLE CENTER TO TABLE | 450mm | 580mm | 580mm | 580mm | 580mm | 580mm | |
SPEED OF TABLE LONGITUDINAL MOVING | 5-25m/min | 7-25 m/min | |||||
TABLE CROSS MOVING | AUTO FEED | 0.1-8mm | |||||
RAPID SPEED | 990mm/min | ||||||
FEED OF HANDLE | 0.02mm/div. | ||||||
WHEEL HEAD VERTICAL MOVING | AUTO FEED | (AHD) 0.005/0.01/0.02/0.03/0.04/0.05mm/stroke | |||||
RAPID SPEED | (AHD/AHR) 460mm/min | ||||||
FEED OF HANDLE | 0.01mm/div.(AH) 0.005mm/div(AHR/AHD) | ||||||
GRINDING WHEEL SIZE | 200*20*31.75 | 350*40*127 | 50HZ: 400*40*127; 60HZ: 350*40*127 | ||||
MAIN MOTOR | 1.5KW | 5KW | 7.5KW | ||||
PACKING SIZEcm | 190*170*215 | 217*212*213 | 235*222*213 | 295*222*215 | 285*227*215 | 295*227*218 | |
GROSS WEIGHT KG | 1800 | 2400 | 2800 | 3500 | 3800 | 4300 | |
Standard accessories: Coolant tank,Standard electro magnetic chuck, Balancing arbor, wheel flange, Wheel extractor,Leveling wedge and bolt, Tool box and tools, Standard grinding wheel, Working lamp, Wheel dresser stand (without diamond pen), Build in electro magnetic chuck controller, PLC auto grinding controller (only for AHD models)
Optional accessories:
Parallel wheel dresser, Wheel flange, Balancing stand, Coolant with magnetic separator and paper filter, Coolant tank with magnetic separator, Liner scale, Diamond pen.
Production&Workshop for PLC control hydraulic saddle moving surface grinding machine
Customer&Expo for PLC control hydraulic saddle moving surface grinding machine
Companny information for PLC control hydraulic saddle moving surface grinding machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for PLC control hydraulic saddle moving surface grinding machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
