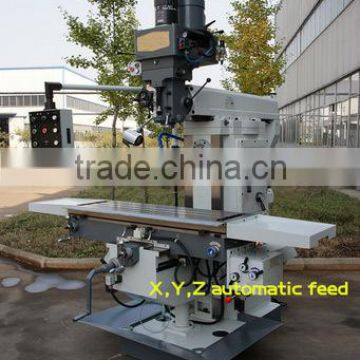

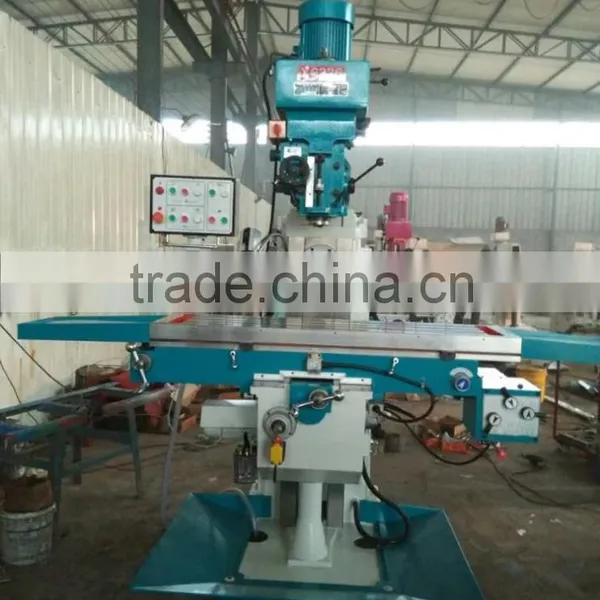

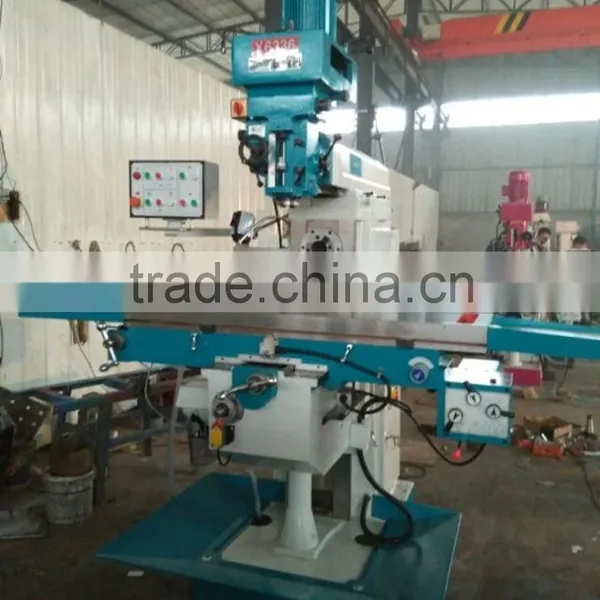

X6336 Universal Radial Milling Machine
Product Description for X6336 Universal Radial Milling Machine
1.X and y axis automatic feed ,z axis motorized lift .
2.TABLE SIZE:1250*360MM
3.Taiwan high speed milling head ,5HP/7.5HP(optional)
Specification | X6336 |
Spindle taper | ISO 40 vertical ISO 50 horizontal |
Distance from vertical axis to table surface | 135-485 mm |
Distance from horizontal axis to table surface | 0-350 mm |
Spindle speeds range | 70-7200 rpm vertical 60-1800 rpm horizonal |
Table size | 1250x360 mm |
Max.table travel | 900x400x420mm |
Horizontal motor power | 4.0 kw |
Vertical motor power | 3.7kw (V) 2 kw (H) |
Overall dimensions | 2000x2000x2250 mm |
N.W/G.W | 2500/2700 kg |
Production&Workshop for X6336 Universal Radial Milling Machine
Packaging&Shipping for X6336 Universal Radial Milling Machine
Customer&Expo for X6336 Universal Radial Milling Machine
Companny information for X6336 Universal Radial Milling Machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for X6336 Universal Radial Milling Machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
