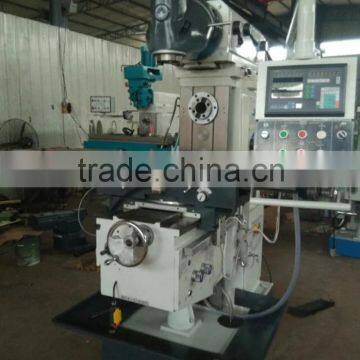

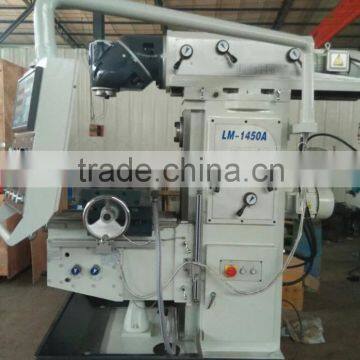

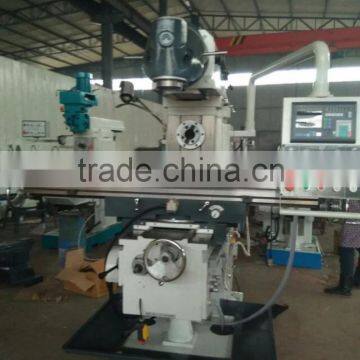

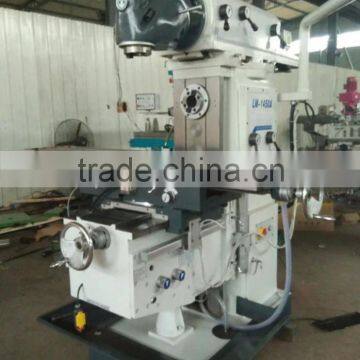

LM-1450A universal milling machine
Product Description for universal milling machine
Features:
LM-1450A universal swivel head milling machine is based on an increase in the LM1450 installation of rotary table 45 degrees processing of a wide range of , three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min.
Specification | LM-1450A |
Spindle taper | ISO50(v) ISO50 (H) |
Distance between sindle axis and milling machine guideway mm | 505 |
Horizontal spindle center height ( mm ) | 0-480 |
Table size (mm) | 1630*360 |
Table travel (mm) | 1000*340*420 |
Main motor | 4kw |
Feed motor | 1.5kw |
Feeding speed | 30/55/100/190/350/630/2000 |
Spindle speed | 60-1800(H)(12 step) |
| 60-1700 (V) (12step) |
Pack measure | 2000*2000*2250 |
N.W/G.W | 3000/3100 kgs |
Standard Accessories:
1. mill chuck 7:24 40 1set (8pcs)
2. Drill chuck 3-16/B18 1 set
3. Inner-hexagonal spanner
4. Spanner s8-10 s17-19 s22-24
5. horizontal milling hilt Φ32 Φ27
6. pull rod 2 pcs
7. machine vice 160mm
8. Groud screw 4 pcs
9. Nut and washer Each four
10. Reduction sleeve 2 pcs
11.operation manual
Optional Accessory:
1. Dividing head (125MM)
2. Rotary table (320MM)
3.Digital readout ( DRO)
4. Clamping kit
5.Slotting head 100mm

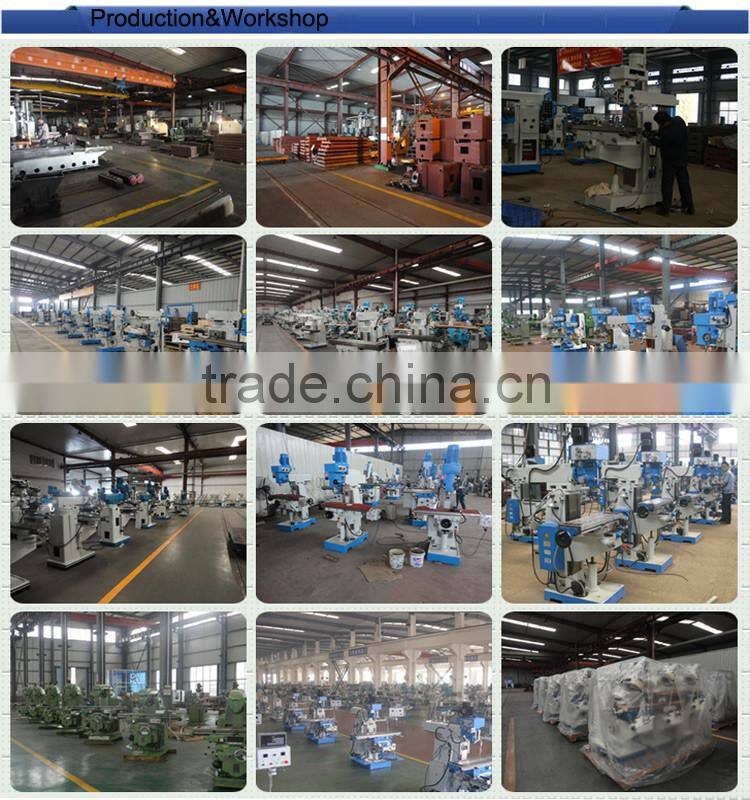

Production&Workshop for universal milling machine

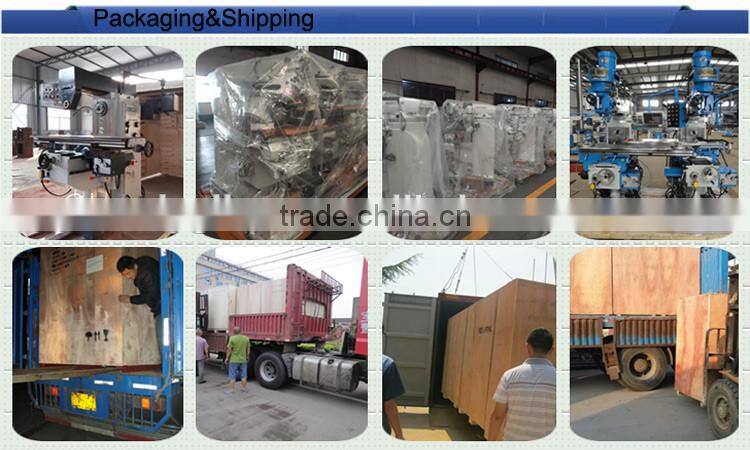

Packaging&Shipping for universal milling machine
Customer&Expo for universal milling machine
Companny information for universal milling machine
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for universal milling machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
