Hot Sale! Double Hdmi Extender 60m With CE,FCC,ROHS in Shenzhen

Name: Hot Sale! Double Hdmi Extender 60m With CE,FCC,ROHS in Shenzhen
Brand: yunzuo
SKU: 114870319
Availability: InStock

Shenzhen Yunzuo Electronics Co., Ltd.

US$ 20 - 30 MOQ: 10 Pieces

Key Specifications

Brand Name:

yunzuo

Model Number:

HYE-CAT5e6-60M-S1-V0

Place of Origin:

Guangdong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

yantian

Delivery Detail:

Delivery time depends on order quantity.

Brand Name yunzuo

Model Number HYE-CAT5e6-60M-S1-V0

Place of Origin Guangdong, China

Specifications

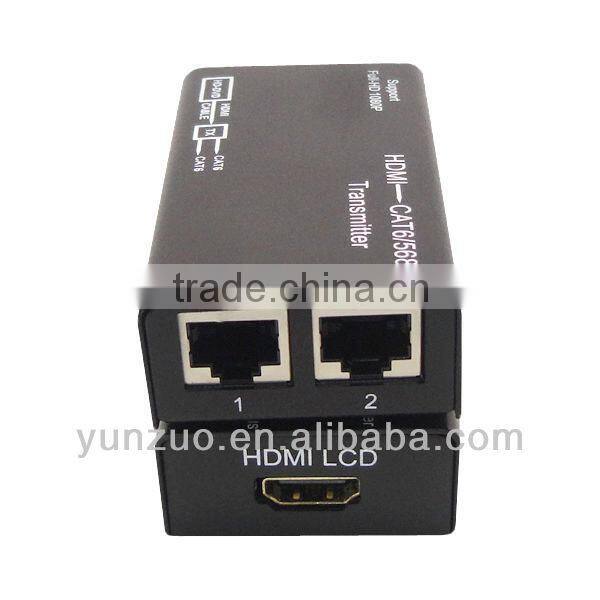

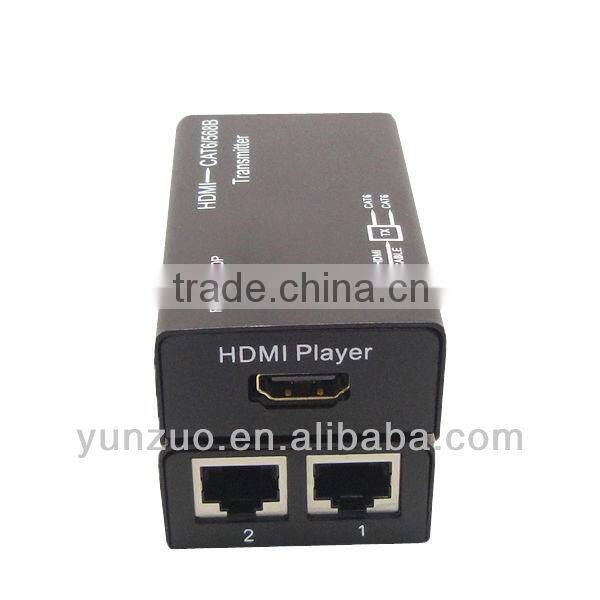

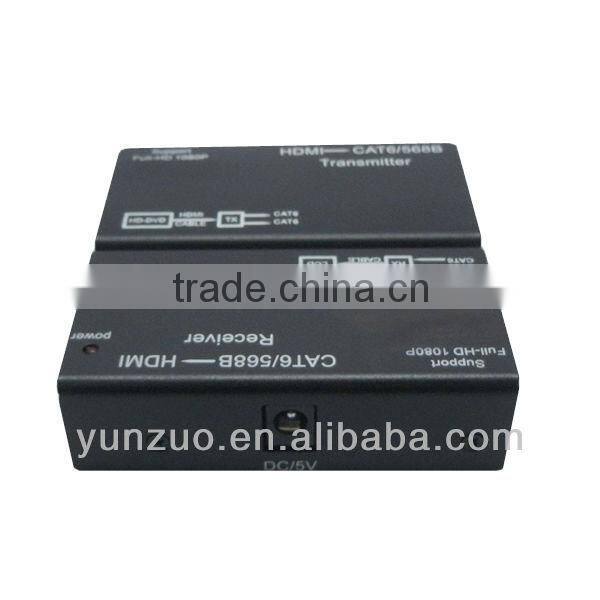

1.HDMI extender by double cat 5e/6
2.support 3D
3.extender HDMI signal up to 60 meters
4.CE,FCC,ROHS,
5.OEM

Hot sale! double hdmi extender 60m with CE,FCC,ROHS in Shenzhen

The HDMI Extender use double cat-5e or cat-6(recommended) cables up to 60 metres instead

of HDMI cable to transmit high definition signal, for cutting down cost. Long Distance transmission of high

definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to

supply for long distance transmission of high definition signal.

1. Connect one HDMI 1.3 cable up to 20 metres between source device and TX Extender

2. Connect one HDMI 1.3 cable up to 20 metres between sink device and RX Extender

3. Connect double cat-5e or cat-6(recommended) cables up to 60 metres instead of HDMI Calbes between TX and RX Extender

4. Connect 5V power supply to the HDMICAT60RX&TX Extender


Name of the product	HDMI Extender by double Cat5E/6/7 Full HD 1080P
Length of CAT-6 cable between Rx and TX	Up to 60 metres
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output	LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	165MHz
Max baud rate	4.95Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance	≤ 20m AWG26 HDMI 1.3 standard cable
Max working current	800mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range	(-15 to +55º C)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	82x45x22 (mm)
Weight	150g
Warranty	1 Year
Power Supply	5V DC@2A
AC Power Adapter	US standard, UK standard and so on
Accessories with the machine	a) 5V power adaptor b) one pc of manual
Regulatory Approvals	ROHS, CE, FCC
Note: Specifications are subject to change without notice.
