China Factory Customized N2 Plant With Low Price and Good Quality

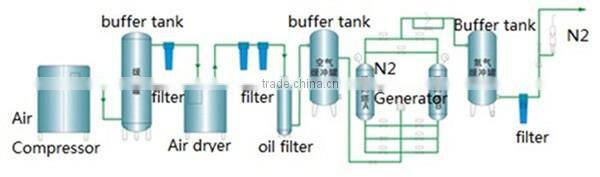

PSA Nitrogen Generator Process Principle.

PSA N2 generator uses carbon molecule as sorbent, absorbs and desorbs O2 from ambient by the principle of
pressurizing absorption and depressurizing desorption to separate O2 out to make Nitrogen keeps only.

PSA Nitrogen Generator Technical Data:

1) N2 Purity: 99-99.9995%;
2) N2 Flow: 3-3000Nm3/h;
3) N2 Pressure: 0.1-0.8MPa;
4) Above 3 data is a must for a Nitrogen Generator system designning.
5) Dew point: ≤-38 Cent Degree;
6) Air source pressure: 0.8-1.0Mpa
7) Shape and dimension: 1350×1170×1600 mm (L×W×H)
8) Weight: 500kg

PSA Nitrogen Generator Advantages:

1) Low cost compared with purchasing gas directly;
2) Computer-aided operation and simple technical design
3) Easy maintenance
4) Low energy consumption

Application Range of PSA Nitrogen Generator:

Normally for keeping fresh, Antioxidant, etc, where to drive the O2 away, keeps place full of N2;
Its suitable to use in Chemical industry, nitrogen production and filling and filling of injection solution, transfusion solution and oral liquid in pharmacy industry, the blow and replacement of instruments in laboratory, food preservation by filling in nitrogen in food industry, agitation of beverages and expansion of foods.

PSA Nitrogen Generator Technical sheet of components:

Below is standard components of system, replacement of defective items guaranteed during the warranty time:
