Home > Consumer Electronics > Audio & Sets > Microphone > ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone

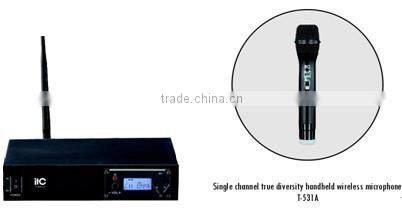

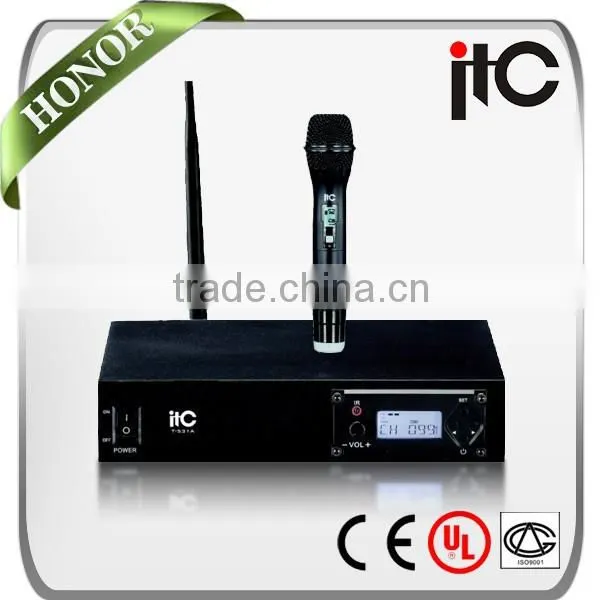

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone photo-1
US$ 1 - 500 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
ITC
Model Number:
T-531A
Style:
Gooseneck Microphone
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ITC
Model Number T-531A
Style Gooseneck Microphone
Communication Wireless
Place of Origin Guangdong, China

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone







Recommend

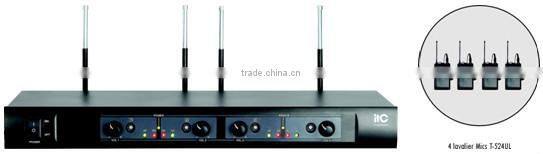

ITC T-524UL 50 Meters FM 4 Channel Hidden Wireless Lavalier Microphone

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



Appearance

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



 ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



Feature

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



*  Adopt international standard EIA 1/2 width 1U high metal chassis, which can be mounted directly to the rack.

* Provide 640-857MHZ six frequency bands 100 each, and the use of advanced phase- locked loop PLL frequency synthesizer technology, adjustable frequency, adjustable transmit power to avoid interference frequency.

* Super anti-jamming capability, can effectively suppress the noise caused by external interference and co-channel interference.

* LCD display window, displaying the channel / frequency, RF signal strength, AF audio output intensity.

* With infrared frequency transmitter frequency locked automatically synchronize ACT function.

* Rear receiving antenna separation design, single-antenna diversity receiver and the sound code, noise lock dual mute circuit, receiver distance, easily dropped.

* Internal SQ can increase receiver sensitivity adjustment to increase or decrease the sensitivity of the receiving distance in order to avoid noise interference.



Receiver

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



Receiver Specifications

Receiver mode

Bouble-conversion superheterodyne

IF frequency

110MHz, 10.7MHz

Wireless Interface

BNC / 50 ohms

Sensitivity

12 dBμV (80dBS / N)

Sensitivity adjustment range

12-32 dBμV

Spurious suppression

≥75dB

Output socket type

Balanced and unbalanced

Maximum output level

+10 dBV

Power supply

 DC 12 ~ 18V 500mA

Working temperature

-40 ℃ ~ - + 80 ℃

Dimensions

(W  x  H x D) 210 mm x 44 mm x 147 mm





System

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



System Specifications

Frequency Range

UHF 640-857MHz total of six segments

Modulation

Wideband FM

Adjustable range

25MHz

The number of channel

600

Channel spacing

250KHZ

Frequency stability

± 0.005% or less

Dynamic range

100dB

The maximum deviation

± 45KHZ

Audio response

60HZ-18KHZ (± 3dB)

Integrated SNR

> 115dB

Comprehensive distortion

≤0.5%

Working distance

50 meters





Microphone

ITC T-531A 1 Channel UHF Wireless Handheld Cordless Microphone



Microphone Specifications

Ondo

Dynamic microphone.

Condenser

Lavalier microphone, headset microphone

Antenna

built-in helical antenna handheld microphone, transmitter



Peigua 1/4 wave whip-like antennas.

Output power

High power 30mW; low power 3mW

Discrete suppression

-60dB

Power supply

2 AA 5th batteries

Time

More than 10 hours at 30mW, more than 15 hours at 3mW





FAQ

Quality?

Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.

Trustworthy?

We're not only popular supplier in China but has good reputation in the world.

In time?

We have the ability and we'll try our best to fulfill your demand.

Factory?

Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
