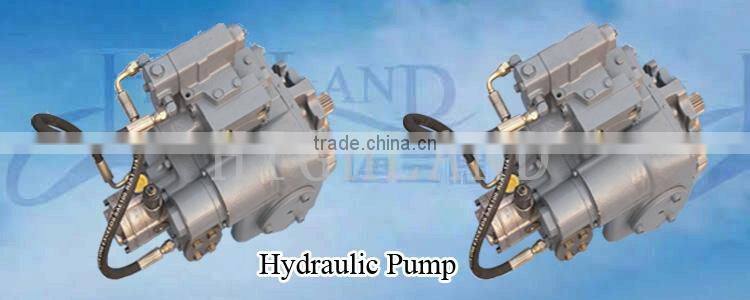

Axial Piston Oil Pump With Spline Shaft for Harvesters

Name: Axial Piston Oil Pump With Spline Shaft for Harvesters
Brand: Highland
SKU: 114957451
Availability: InStock

Ji'nan High Land Hydraulic Pump Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Highland

Model Number:

PV23

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Highland

Model Number PV23

Theory Rotary Pump

Structure Piston Pump

Usage Oil

Power Hydraulic

Standard or Nonstandard Standard

Fuel Other

Pressure High Pressure

Application Metering

Axial Piston Oil Pump With Spline Shaft for Harvesters

Application Range

Paver,road roller,continous soil mixing machine,concrete pump, pharmaceutical.

Main Features
--Pass axis piston pump
--Hydrostatic Transmission
--Manual Servo and Hydraulic Variable control

Technical Parameters

Model	Max. Displacement(ml/r)	Torque at 10Mpa(N.m)	Out power(at 10Mpa 1500r/min)(kw)	Charge Pump Displacement(ml/r)	Max. Speed(r/min)
21	51.6	84.1	12.7	12.3 18.0	3000
22	69.8	114.2	17.2		3000
23	89.0	144.3	21.9		2800

Components Weight Chart

Model	Variable Pump	Variable Displacement Motor	Fixed Displacement Motor
21	53.52	58.51	34.47
22	61.24	66.23	39.92
23	78.47	83.46	47.17
