MSLGA07W CE Marked Medical Anesthesia Machine

Specifications

ICU portable anesthesia machine equipment:
1.Application: Adult and pediatric
2.easy operate
3.CE approved

MSLGA07W CE Marked Medical Anesthesia Machine

1.portable anesthesia machines
2.CE approved
3.best price
4.more than 1 year warranty

MSLGA07W CE Marked Medical Anesthesia Machine(MSLGA07W)

Advantages of MSLGA07W CE Marked Medical Anesthesia Machine

1. CE approved portable anesthesia machine
2. Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
3. Jackson or Bains Absorber is available
4. Specifically designed to accomodate low flow
5. Selectatec-bar and quick change vaporizer mounting device
6. Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.
7. External and reusable soda lime canister, easily watch and replace soda lime.
8. With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.
9. With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety.
10. Wastewater discharge system
11. Visible inspiration and expiration valve
12. Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely
13. Module rack with polyester medical material with superior spray technology, high strength and light weight.
14. With transport case, convenient to take and transport
15. Easy to disassemble and assemble all the components, convenient for clean and maintenance.

Specification of  MSLGA07W CE Marked Medical Anesthesia Machine

Application: Adult and pediatric( 3kg over)
Ventilation mode: Closed, half-closed, half-open
Tidal volume( Manual Mode): 10~2000ml
Gas pressure: 0.25~0.65Mpa
Flow meter: Oxygen two tube: One tube: 0.1~1, one tube: 1~10L/M
APL valve: 0.5~6.0Kpa
OXYGEN Flush: 25~75L/min
I: E: As the doctor operation
BPM: As the doctor operation
Monitoring: Airway pressure, respiratory mode.
Three gauges: One for Oxygen source pressure
One for oxygen working pressure
One for airway pressure

Vaporizer
With the latest innovative design of delivery system, vaporizers deliver accurate concentration under varying conditions of variable flow rate, pressure, temperature and so on.
Stably deliver agent, automatic temperature-compensating, deliver accurate agent
Sophisticated delivery system, Stable, prompt, accurate
Various kinds of mounting types.
Safety lock device to prevent the anesthetic gas volatile accidentally.
The big view window is convenient to observe drug usage levels.

Concentration range of MSLGA07W CE Marked Medical Anesthesia Machine
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%

Flow range: 0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick

Mounting type of MSLGA07W CE Marked Medical Anesthesia Machine
Selectatec compatible
Draeger plug in
Cagemount(ISO 23mm tapers)
Cagemount with interlock

Pictures of  MSLGA07W CE Marked Medical Anesthesia Machine

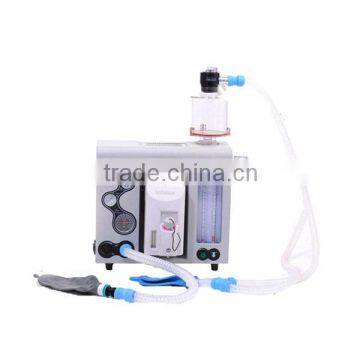

MSLGA07W CE Marked Medical Anesthesia Machine  image share / Customerreality pats picture

MSLGA07W CE Marked Medical Anesthesia Machine  MSLGA07 Product details show

Anesthesia ventilator MSLGA07 installed demo show

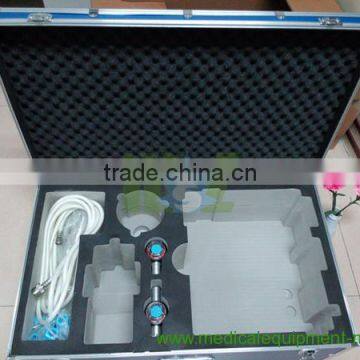

Anesthesia ventilator MSLGA07 Standard Configuration
