MF1350-B2 Flatbed Laminator Machine For Hard Board
MF1350-B2 is the middle size of this kind of flatbed laminator, it has a wide range of application, specially for building and decoration industries. This new flatbed laminator is really a good helper whom want to mount films onto Glass, HDF, MDF, PVC Boards, A-Alum plates, with a temperature up to 100° C(212° F).
This laminator is also available in MF850-B2 and MF1950-B2.
An air pumper is needed, each set containing 4 pieces working table, 80cm each, total in 3.2m.
Model | MF1350-B2 |
Type | Hot and Cold |
Max lamination width | 1270mm/50’’ |
Max lamination thickness | Up to 25mm/1’’ |
Heating | Infrared |
Heating type | Heated top roller |
Max temp | 100°C/212°F |
Warm up time | 10-15 min |
Max Speed | Up to 7m/min |
Roller | Silicon |
Roller diameter | 130mm /5’’ |
Power | 2500W |
Volt | 110V/220V |
Height adjustment | Pneumatic |
Pressure adjustment | Pneumatic |
Silent air compressor | Optional |
Foot pedal switch | Yes |
Flatbed | 4 Pcs, 0.8m/pc |
Certificate | CE; PSE |
Static-free | Yes |
Laminating Process
Features
1.Improve quality and yields
2.High efficiency and low cost
3.Long serve life and low maintenance cost
4.Wide range application
Configuration
1.Non-contactable infrared temperature control device
2.Air cylinder
3.Anti-glue silicon rollers
4.Adaptable pressure device
5.Foot switch
Safety
1. Foot switch for hands free operation
2. Laser safety eyes and 1 emergency stops
3. CE, PSE

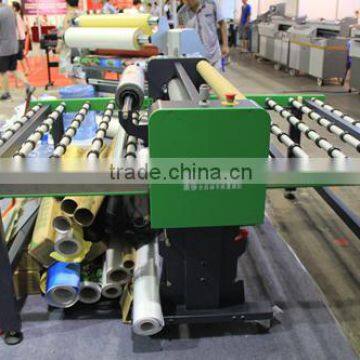

Flatbed laminator for hard board photo show
Flatbed Laminator For Hard Board Package: Free Fumigation Wooden Case
We are the factory----the advantage of choosing factory.
Better Price
As a factory, you can do business directly with us. It saves the profits of trading company. The price will be much better and favorable.
Better service
We have our own professional sellers and after sales service team. We can supply the better professional service for you.
More Professional
We have more than 8 years of experience on the Laminating machine. We can provide OEM service.
Better quality
We have quality inspection during processing to ensure the quality of the product.
Zhengzhou Mefu CNC Equipment Co., Ltd is Professional Manufactuer of Laminator, and keep top in China. Focused on devoloping and designing laminating machines more than 8 years. Mefu has become an innovative power in advertising industry.
