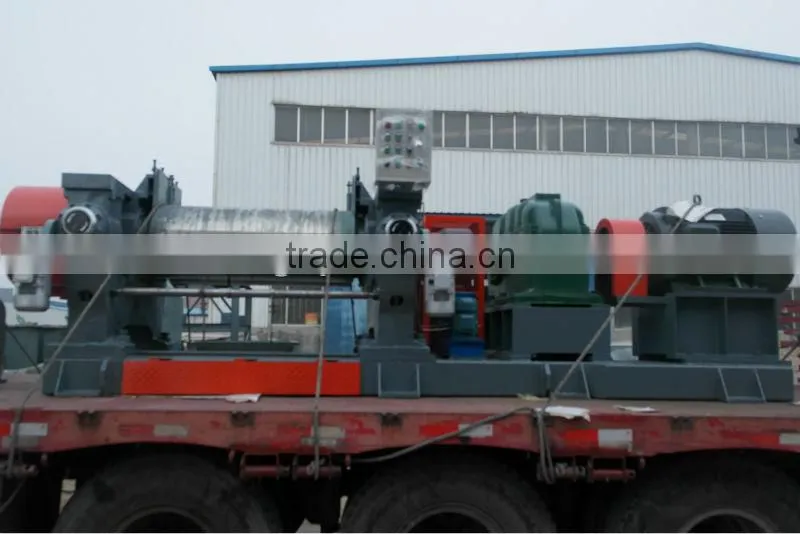

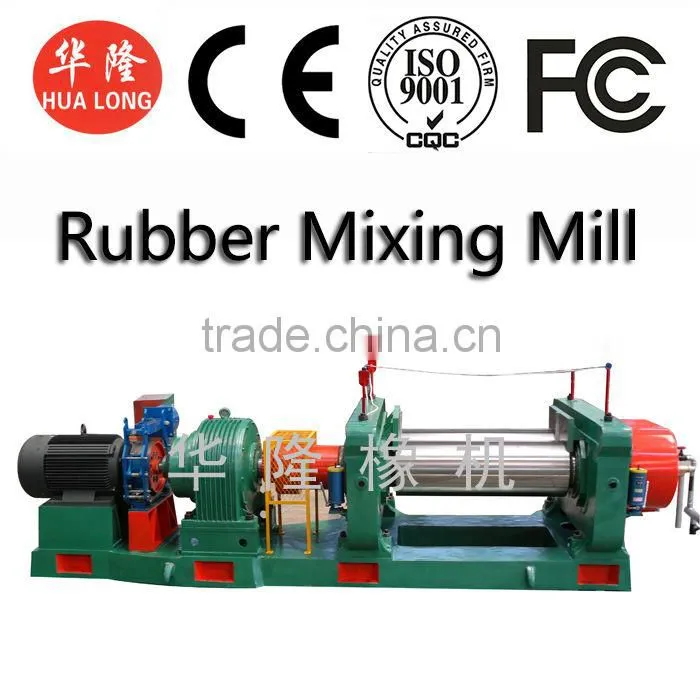

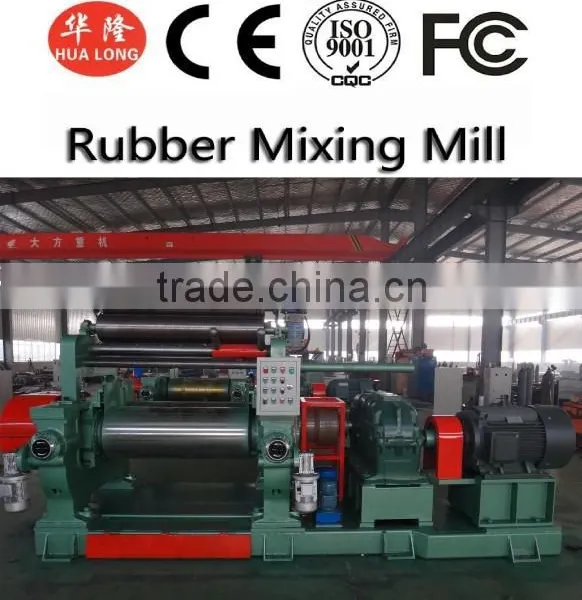

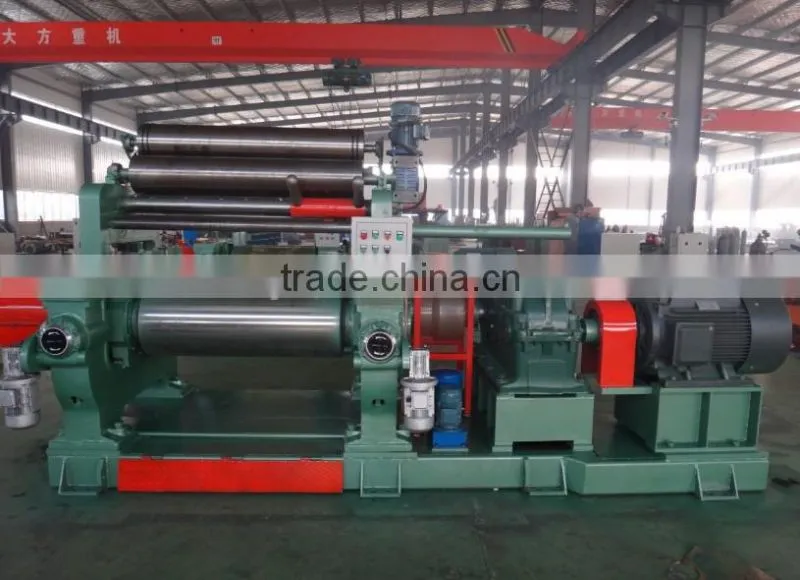

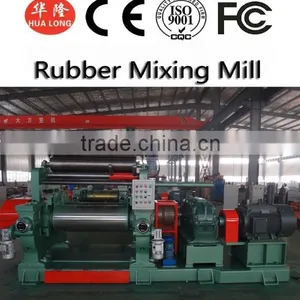

two roll mill

FOB Price

USD $20,000 - $45,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	HUALONG
Model Number:	XK-450	Voltage:	220V	Power(W):	55KW
Dimension(LWH):	5200mm2380mm1840mm	Weight:	9875KGS	Certification:	CE ISO9001
Warranty:	1 YEAR	After-sales Service Provided:	Engineers available to service machinery overseas

Characteristics:

1. Electric adjustment mode can reduce labor intensity.

2. There are many speeds and speed ratios available can satisfy most customers' formula and processing requirements.

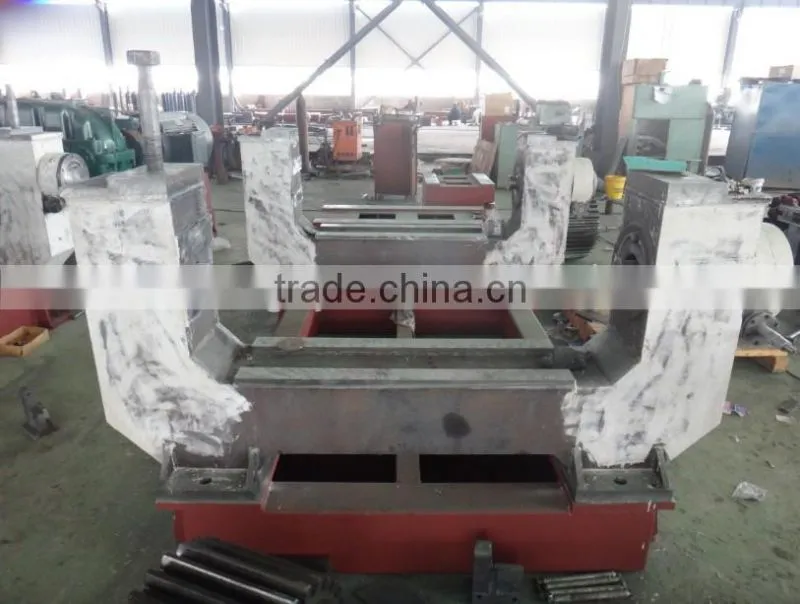

3. Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.

4. Chilled alloy cast iron roll is abrasion resistant with long service life.

5. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

6. Perfect emergency stop device can ensure the safety of personnel and equipment.

7. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

8. Stock pan is easy to clean up with dislodging device.

9. Modular structure offers various structures for customers' option.

10. The flexible design system can satisfy customers' special design requirements within the shortest time.

11. A load test running will be made to the assembled equipment in our company to save debugging time for customers.

	XK-400	XK-450	XK-560	XK-550B	XK-660
Working diameter(mm)	400	450	560/510	550	660
Woking length of rollls	1000	1200	1530	1500	2130
Frontrollsurfacespeed(m/min)	18.65	24.26	27.72	27.94	28.6
Friction ratio	1:1.27	1:1.27	1:1.2	1:1.22	1:1.24
Max .nip(mm)	10	15	15	15	15
Capacity per.batch(kg)	18~35	25~50	35~50	50~60	165
Motor power(kw)	37	55	90	110	245
Overall dimension: length×Width×Height(mm)	4350×1850×1785	5200×2380×1840	5845×2284×1978	5870×2475×2045	7465×3662×2080
