Home > Products > rubber straining machine > screw type strainer rubber filter machine rubber filtrate machine

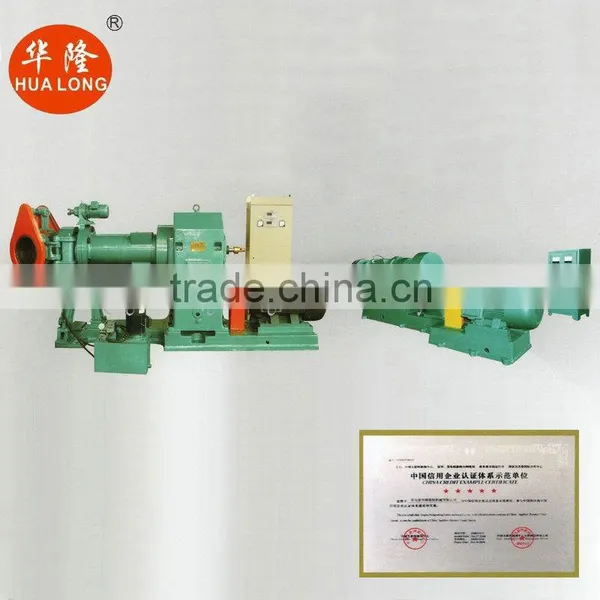

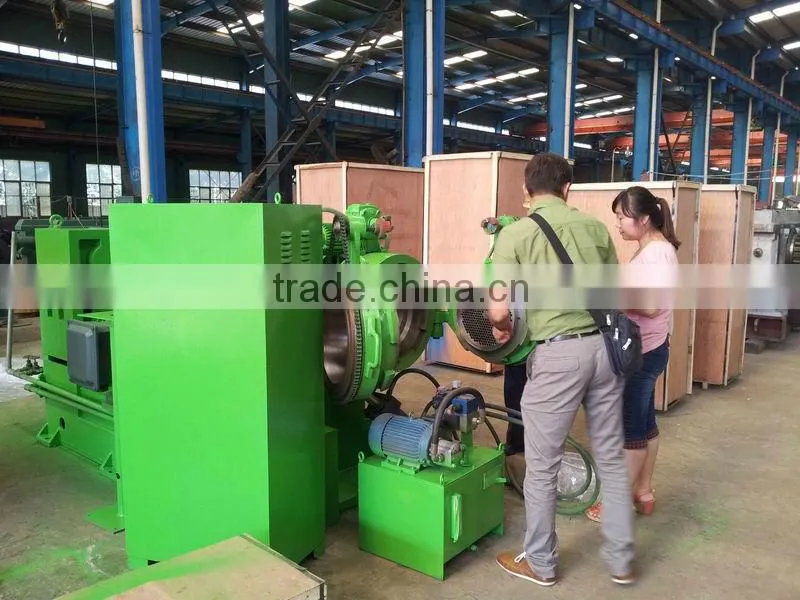

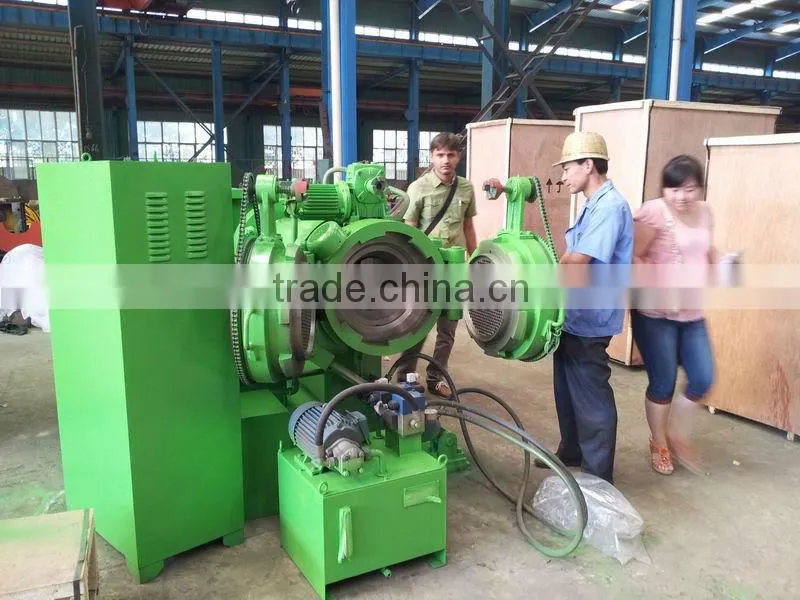

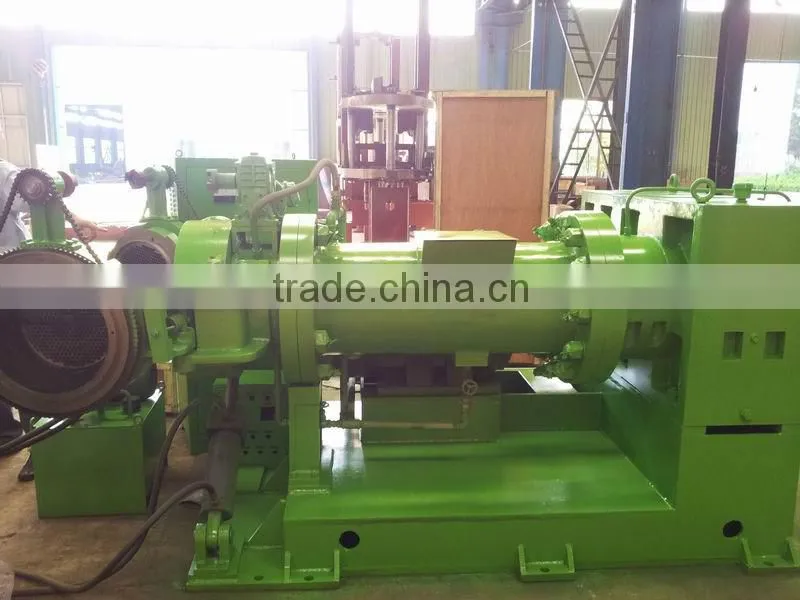

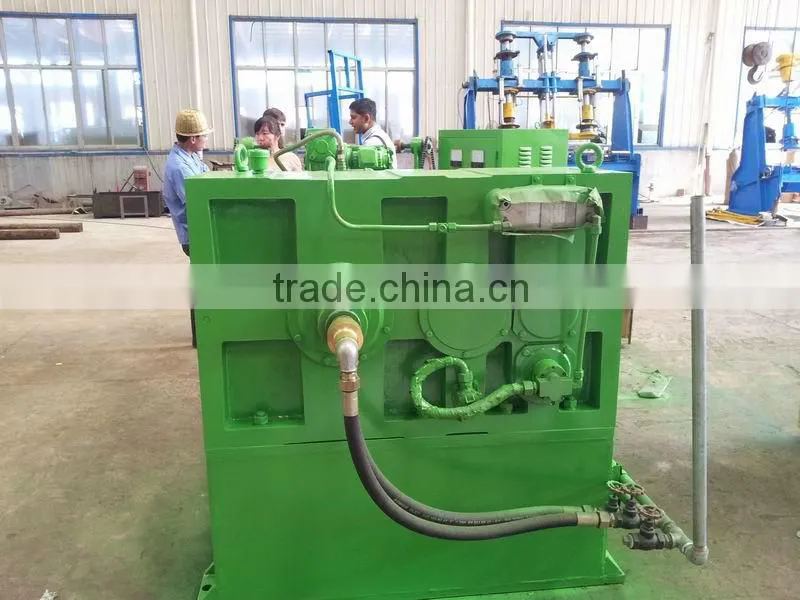

screw type strainer rubber filter machine rubber filtrate machine
- 100 Set / Sets per Month
- qingdao
Product Details
| Type: | Rubber Extruder | Place of Origin: | Shandong, China | Brand Name: | HUA LONG |
| Model Number: | XJL-115,150,200 |
Product Description
Specifications
We manufacture various types of rubber strainer machine.Our electronic control system and raw materials is the best Chinese.
The machine Mainly used for reclaimed rubber compound production.
Properties:
using screw conveyor, pushing and the compound or reclaimed rubber impurities removed machinery. Mainly by the screw, machine canister, nose and transmission of filter rubber components. Filter on the helicopter with orifice plate rubber and filter, orifice plate used to support the screen and for discharging mouth, its aperture for 4 ~ 8mm along the compound, the flow direction expansion tapered holes. Filter gum machine screw length-diameter ratio is commonly 5 or so.
Type | XJL-150L | XJL-200 | XJL-250 |
Screw diameter | 150mm | 200mm | 250mm |
Screw ratio | 53r/min | 45r/min | 40r/min |
Screw form | Double-head equal-depth and isometry | ||
Length-diameter ratio of screw | 1:5.14 | 4.5:1 | 4:1 |
KW Motor power | 37kw | 55kw | 110kw |
Production capacity | 450kg(hour) | 900kg(hour) | 1800kg(hour) |
Cooling water pressure | 0.2-0.4Mpa | 0.2Mpa | 0.2Mpa |
Size: Length×Width×Height | 3250×1180×1150 | 3900×990×1650 | 2730×1630×1505 |
