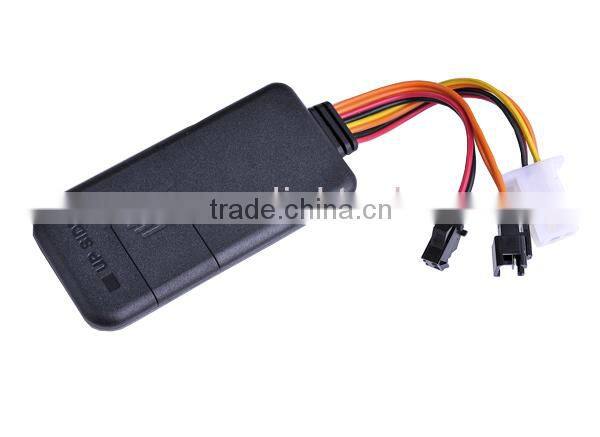

gps vehicle tracking device / vehicle tracking system / vehicle tracking software

Specifications

1.Emergency call sos
2.Accurate positioning
3. Remote control to cut off the power supply or oil
4.Support for multiple alarm

Vehicle tracking system manufacturers seeing the demand in the market for vehicle tracking systems are manufacturing high quality vehicle tracking systems which can be very helpful. At Eelink you can make order for all types of vehicle tracking systems which are manufactured by very reputed vehicle tracking system manufacturers.

Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery



Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g



Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely



 Main function



Brand	Eelink
Model	TK116
Quantity	1 piece(s)
Color	Black
Material	ABS
Network	GSM
Band	85090018001900 MHz
SIM Card Qty.	one SIM
Emergency Phone Number Qty.	3
Tracking Information Method	Monitoring and controlling platform
Power Supply	DC 6~36V
GPS Chip	SIRF
GPS Sensitivity	-163 dB
GPS Channel	20
Position Accuracy	10 m
Altitude Limit	18000 m
Hot Start	3 seconds
Warm Start	15 seconds
Cold Start	60 seconds
SOS	Yes
Geo-fence	Yes
Vibrating Alerts	Yes
Remote Monitoring	Yes
Engine Cut Off	Yes
Realtime Monitoring	Yes
Track Playback	Yes
ACC Anti-Theft	Yes
Overspeed Alerts	Yes
Low Battery Alerts	Yes
GPS Blind Area Alarm	Yes
Voice Call	No
Waterproof Function	Yes
Waterproof Rate	Daily user water resistant
Working Temperature	-35~75'C
Working Humidity	5%~95%
Manufacturer's Warranty	12 Months excluding physical damages (see specifications for terms and details)
Certification	CE



GPS Tracking Solutions



Detail picture







GPS Tracking System







1) Geo-fence Alarm





2)Add device with protocol you need







3)GPS tracking Statistics report

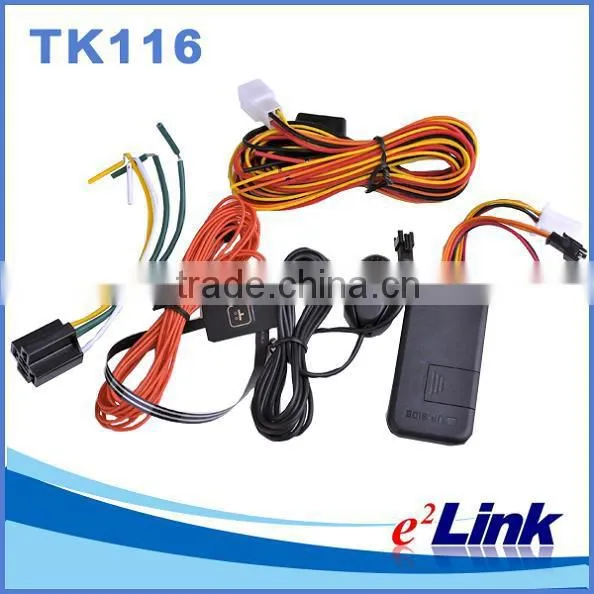

Package

Packing List	1 x GPS (5cm)
	1 x Power cable (100cm)
	1 x Microphone (150cm)
	1 x SOS button
	1 x English user manual
	1 x Chinese / English instruction manual









Accessories







Office and Laboratory





Factory SMT Workshop





Factory Cable Assembly  Workshop







Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
