Home > Products > plastic granulation line > recycled plastic granulating machine with CE certificate
recycled plastic granulating machine with CE certificate
- 6 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
new condition plastic pellet machine with CE ISO certificate
-
high effect waste plastic film granule making machine for sale
-
new condition waste plastic granule making machine
-
high effect plastic film pelletizing plant for sale
-
plastic film granulation plant with cutting compactor
-
automatic plastic film granulation line with CE certificate
Product Details
| Condition | New | Type | Recycling Granulator | |
| Capacity | 100-800kg/h | Place of Origin | Jiangsu, China | |
| Brand Name | KLONG | Model Number | KL-G160 | |
| Material | PP/PE | Screw Design | Single | |
| Voltage | 220v/440v/380v/optional for plastic granulating machine | Power | 55-260kw | |
| Dimension(L*W*H) | 11*3*1.5m | Weight | 8-15 ton | |
| Certification | CE, ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plastic granulating machine1.high effect, low consumption
2.automatic, save labor
3.CE, ISO
4.1 year warranty
plastic granulating machine
Product: Plastic pellets/granules/resins

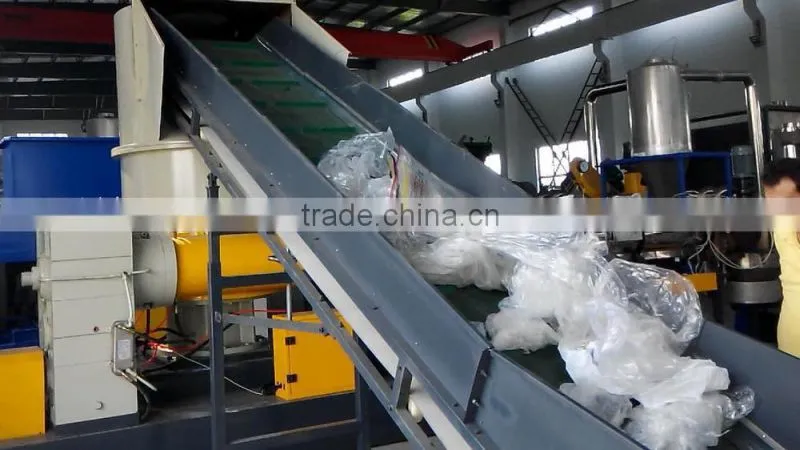

Feeding: Conveyor belt/cutting compactor
Extruder: Single screw, one/two stage extrusion
Screw diameter: Available from 80mm~180mm
Screw L/D: (28-36)/1
Screw material: 38CrMoAlA (nitriding treatment).
Vent: Double vented degassing, single vented or without vent (customized)
Cutting type: Hot die face (water ring) /noodle type pelletizing
Cooling type: Water/wind cooled
Voltage: Customized
plastic granulating machine
²High efficiency force-feeder ensures high capacity feeding ,low energy consumption.
² Extruder of PE PP film pelletizing machine :single stage or double stage pelletizing.
²Single screw extruder, equipped with specially designed screw & barrel, venting system, has avery good output capacity.
²Pelletizing style: water-ring and water cooling strand cutting with extrusion mould,even cutting
ensures good shape.
plastic granulating machine
Model | Screw Diameter(mm) | L/D | Capacity(PE) | Capacity(PP) |
KL-85 | 85 | 33 | 150-200 | 100-150 |
KL-100 | 100 | 33 | 250-350 | 200-300 |
KL-130 | 130 | 33 | 450-550 | 400-500 |
KL-160 | 160 | 33 | 650-800 | 600-750 |
KL-180 | 180 | 28 | 750-1200 | 700-1000 |
plastic granulating machine
plastic granulating machine, plastic granules making machine, plastic recycling granulating machine,
recycled plastic granulating machine, used platic granulating machine, plastic granulator
1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way, do not include the daily maintaining
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
KLONG plastic granulating machine offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
Welcome your visit to our factory!
Skype:klongplastic
Mob/Whatsapp/Wechat: 8615839325580
More information, please click the product name and view the details !
bottle crushing washing plant PE PP film/bags washign plant recycled plastic granulating line new type pelletizing dryer
plastic crusher strong plastic shredder plastic agglomerator High speed centrifugal dryer
