Home > Products > Rubber Extruder > Feed Milll Extruder/Rubber Extruding Machine/Rubber Sheet Extruder

Feed Milll Extruder/Rubber Extruding Machine/Rubber Sheet Extruder

FOB Price

USD $15,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Zhihong	Model Number	XPS-90
Voltage	220V-460V	Power(W)	55kw
Dimension(LWH)	3200 x1200 x1620mm	Weight	3800kg
Certification	ISO9001 CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feed Milll Extruder/Rubber Extruding Machine/Rubber Sheet Extruder

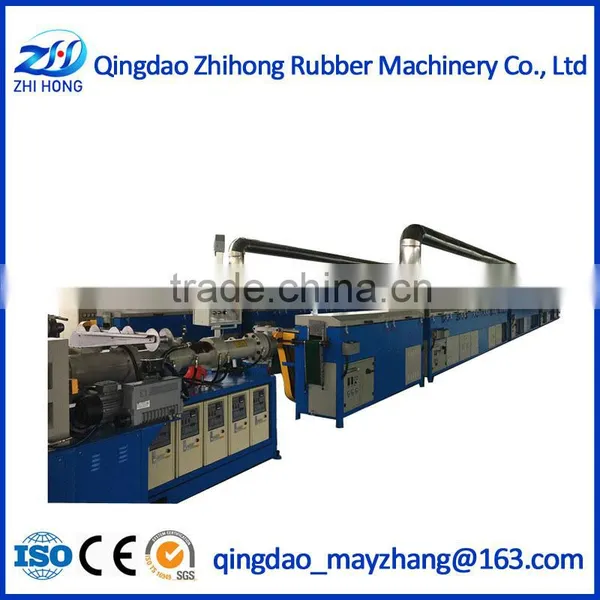

Equipment composition

ld feeding silicone rubber extruder

2.single extruder head

3.super high temperature tunnel

4.hot air vulcanizing tunnel

5.water cooling channel

6.traction machine

7.wind-up machine

Cold feed rubber extruder machine includs the PIN-TYPE cold feeding rubber extruder machine and common cold feeding rubber extruder macine. Cold feed rubber extruder machine is widely used in the rubber product like rubber profiles, rubber tubes, tubber tyres and rubber sealings production.

The PIN-TYPE Cold feed Rubber Extruder Machine Applications: extrusion of tread,side wall,inner tube of the tyre. the rubber pipe extrusion,rubber sheet extrusion, rubber sealings etc.

The Common Cold feed Rubber Extruder Machine Applications: car tubes extrusion, rubber sealing strips, rubber window&door sealing profiles, rubber rings etc.extrusion.

	Model	XP90×14D
General Specifications	Outlet Direction	Right in and left out facing the device
	Screw Diameter	90mm
	Screw Speed (r/min)	0 to 55
	L/D	14:1
	Capacity(kg)	320kg/h
	Central Height Of Extruder	1050mm±20mm
	Feeding Mode	Active feeding with side roller
	External Dimensions	External dimensions 3200(L) ×1200(W) ×1620(H)MM
	Weight	3800Kg

Type	Screw diameter(mm)	Screw L/D ratio	The maximum speed of screw(r/min)	Motor power (kw)	Maximum productive capacity(kg/h)	Net Weight (KG)
XJP-45	¢45	12:1	70	7.5	50	500
XJP-65	¢65	12:1	65	37	120	1200
XJP-75	¢75	12:1	60	37	120	1700
XJP-90	¢90	14:1	55	55	320	3800
XJP-120	¢120	20:1	50	110	600	5200
XJP-150	¢150	20:1	45	135	720	6500

Our Service:

Cold Feed Rubber Extruder Machine Service

BEFORE SALES

1.Introduce products and application details

2.Recommend suitable solutions

3.Provide with reference information

DURING SALES

1.Provide with layout and engineering conditions

2.Inform the processing conditions

3.Offer other documents

AFTER SALES

1.Provide with installation and trainning

2.Offer spare parts

3. Provide with necessary technical support
