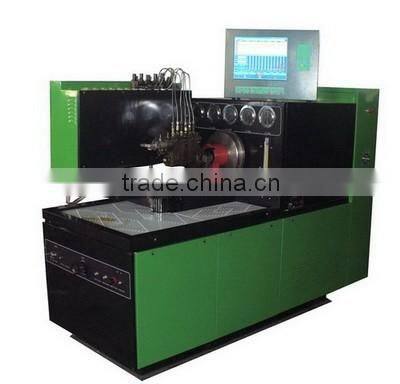

BTS815 Fuel Injection Pump Test Bench/diesel Injection Pump Test Bench

BTS815 Fuel Injection Pump Test Bench/diesel Injection Pump Test Bench photo-1
BTS815 Fuel Injection Pump Test Bench/diesel Injection Pump Test Bench photo-2
US$ 1.00 - 1.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
220V/380V
Power:
7.5KW
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Type Engine Analyzer
Voltage 220V/380V
Power 7.5KW
Certification CE Certificate
Applicable Models BTS815 electronic fuel delivery measuring system test bench
Place of Origin Shandong, China
Brand Name BAITE
Model Number BTS815
Warranty 1 Years

BTS815 electronic fuel delivery measuring system test bench

Product Description

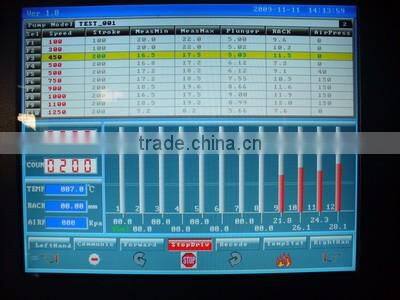

BTS815-- continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems.

the electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.



Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)

13.oil lubricate (on request)
14. Foced cooler (on request)



Technical characteristic



Adjustable cylinders numbers

Out power(Kw)

RPM

Rpm pre-set

Temperature control system

Positive pressure system

Positive pressure system

12

7.5  11
15   18.5

0-4000















Air supply

DC power supply

internal pressure of VE pump

Oil return of VE pump

travel of tooth bar

Advanced angle

Capability with pump type

(On request)

√(On request)

All in- line and rotary pump
