BTS3000 Fuel Injection Pump Test Bench (Measurement of Oil Return of Distributing Pump)

BTS3000 Fuel Injection Pump Test Bench (Measurement of Oil Return of Distributing Pump) photo-1
BTS3000 Fuel Injection Pump Test Bench (Measurement of Oil Return of Distributing Pump) photo-2
BTS3000 Fuel Injection Pump Test Bench (Measurement of Oil Return of Distributing Pump) photo-3
BTS3000 Fuel Injection Pump Test Bench (Measurement of Oil Return of Distributing Pump) photo-4
US$ 1.00 - 1.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
220V/380V
Power:
12W/24W
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Type Engine Analyzer
Voltage 220V/380V
Power 12W/24W
Certification CE Certificate
Applicable Models TEST FUEL INJECTION PUMP
Place of Origin Shandong, China
Brand Name BAITE
Model Number BTS3000
Warranty 1 Years

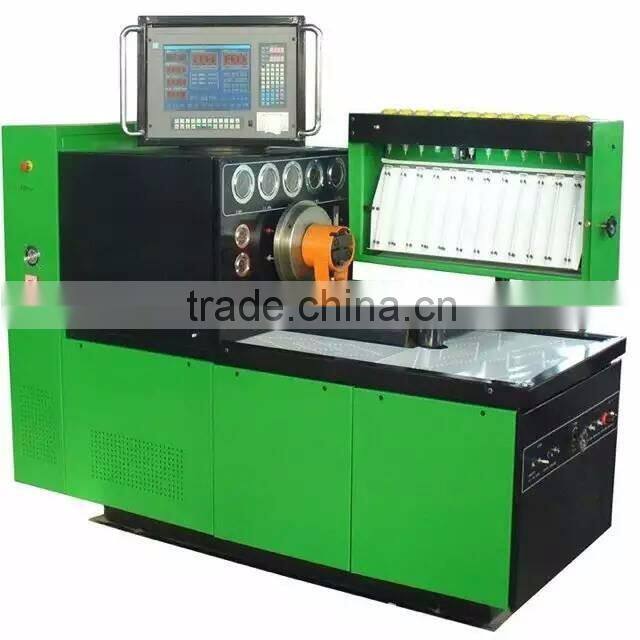

BTS3000 Fuel injection pump test bench


Product Description



7.5-18.5KW diesel fuel injection pump test bench  is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of  product with high quality and good price in our business.

Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.



Main Function:

1.Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

Technology Parameter

1. Adjustable rotation speed range:0~4000RPM

2. Double series of graduates:45cc,150cc

3. Volume of oil tank:60L

4. Temperature stabilization: 40±2°C

5. Test oil filtering unit: 5μ

6. D.C.Supply:12V/24V

7. Feed pressure:low: 0~0.4MPa,high: 0~4Mpa

8. Air pressure: +0~0.3MPa, -0.03~0Mpa

9. 3-phase power supply:380V/50Hz or on request

10. Flywheel inertia’s moment: 0.8KG·M2

11. Center height:125MM

12. Output power: 7.5KW,11KW,15KW or on request

13. Overall dimensions(MM): 2360×960×1870 or on request

14. Net weight(KG):about 1000

BTS3000 Fuel injection pump test bench (Measurement of oil return of distributing pump)
