Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Whole House Lightning Rods to Protect Your Home From Direct Lightning

Whole House Lightning Rods to Protect Your Home From Direct Lightning

Name: Whole House Lightning Rods to Protect Your Home From Direct Lightning
Brand: DGMDQ ( whole house lightning rods)
SKU: 115267473
Availability: InStock

Zhejiang Leishu Electric Co., Ltd.

Whole House Lightning Rods to Protect Your Home From Direct Lightning thumbnail-1

Whole House Lightning Rods to Protect Your Home From Direct Lightning photo-1

US$ 85 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DGMDQ ( whole house lightning rods)

Model Number:

TQYF-3.3 ( whole house lightning rods)

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DGMDQ ( whole house lightning rods)

Model Number TQYF-3.3 ( whole house lightning rods)

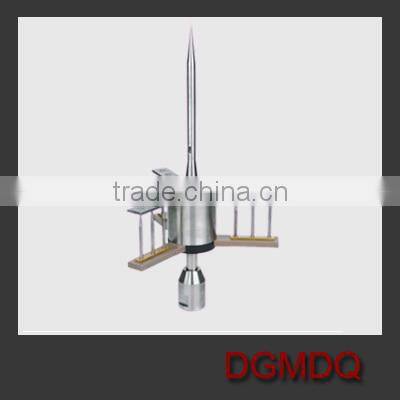

Whole house lightning rods to protect your home from direct lightning

Product Description

1.Pictures Whole house lightning rods to protect your home from direct lightning

2. Description Whole house lightning rods to protect your home from direct lightning

Product Features:

DGM series lightning rod are made from stainless-steel material,it has different protection area and various features.

Not electron style,life long.
Keep the good performance after lightning stroked.
Various protection radius.
Tracing the lightning in advance and conduction it to the earth completely.
It would be activated only have lightning and thunder.
Artistic outline.
Safety and reliable.
Without maintenance.

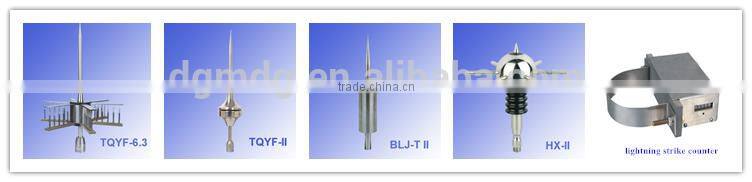

Advance pre-discharge lightning rod.This type serious number is as below:

TQYF-3.1 Three sheets (3 short rod)

TQYF-3.3 Three sheets(9 short rod)

TQYF-4.3 Four sheets (12 short rod)

TQYF-5.3 Five sheets(20 short rod)

TQYF-6.3 Six sheets (30 short rod)

Technology Paramenter is as below: Whole house lightning rods to protect your home from direct lightning

Type Number	TQYF-3.1	TQYF-3.3	TQYF-4.3	TQYF-5.3	TQYF-6.3
Time ahead to discharge T	14 μs	25μs	34μs	43μs	52μs
Max. discharge current	200KA
Capability against wind speed	≥40m/s
Steepness of lightning current	≤10KA
Grounding Resistance	≤10Ω
Production Standard	GB50169-2006

The product model and protective radius: Whole house lightning rods to protect your home from direct lightning

Type Number		Rod Height=Effective height of lightning rod(m)
Rod Height		5m			6m			7m			8m			10m
Protect Radius	TQYF-3.3	40	55	62	40	56	65	41	57	66	41	58	70	42	63	81
	TQYF-4.3	49	66	74	49	67	76	50	67	77	50	68	80	51	72	90
	TQYF-5.3	59	76	85	59	77	86	59	77	88	59	78	90	60	82	99
	TQYF-6.3	68	86	95	68	87	97	68	87	98	68	88	100	69	91	106

Company with full set of advanced production and testing equipment,product quality in the industry to stay ahead,have passed ISO9001-2000,CE,ROHS certification and so on.
