Fire Resistant Ship Power Cable

Specifications

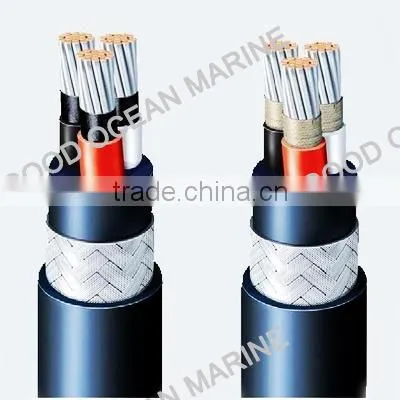

Fire resistant ship power cable
1.tinned copper conductor
2.XLPE/EPR insulation
3.tinned copper wire armoured
4.PVC/PO

Fire resistant ship power cable



Rating voltage: 0.6/1kv

Standards applied

IEC60228  IEC60092-350  IEC60092-351  IEC60092-353  IEC60092-359

IEC60332-1  IEC60332-3-22  IEC60331  IEC60754-2   IEC60134-2



Fire resistant ship power cable construction:

1. Conductor: tinned copper wire,class2 or 5

2. Fire resistant Mica tape on request

3. Insulation: EPR

4. Filler ( if necessary)

5. Tape

6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)

7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided

8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)



Fire resistant ship power cable specification

Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37

Nominal Cross section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2,

35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2



Fire resistant ship power cable Flammability features

SA:bunched cable flame retardant

SC:bunched cable flame retardant,halogen free & low smoke

NA:bunched cable flame retardant,fire resistant

NC:bunched cable flame retardant,fire resistant,halogen free & low smoke



Fire resistant ship power cable application

This marine cables are intended for power,lighting of shipboard or offshore building.

It is also available for power plant,chemical works and mines,etc.



Fire resistant ship power cable Classification Society Certificates

CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.



The radius of bend for the installation of  fire resistant ship power cable

Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
	D25	6D
