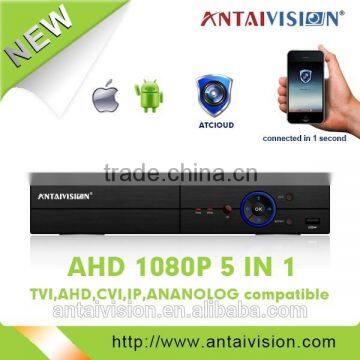

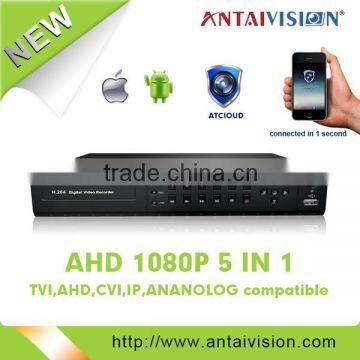

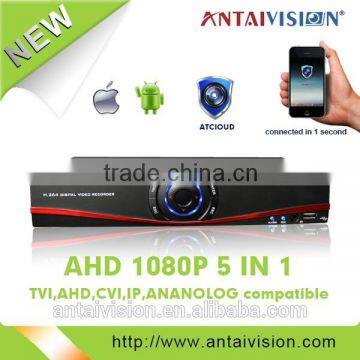

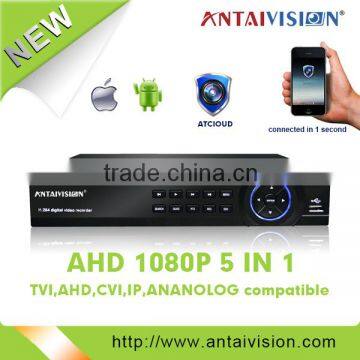

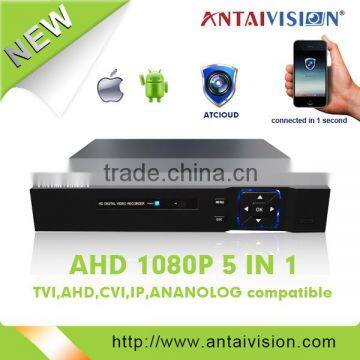

Factory price! 1080n 16 channel H.264 CCTV Standalone ahd DVR 3 in 1 / 5 in 1 DVR
Specfications
| No-Alarm Model | Model | 16 Channel H.264 AHD-NH | |
| HY-NH-4916FE (Z,D,Q,A,R,P,X,J,K) | |||
| Board model | PCBA-HY-NH-8210-16 | ||
| Picture | mainboard Image | ||
| back panel picture | |||
| System | Main processor | Industrial grade embedded micro controller chip Taiwan Zhiyuan GM821hipset 0
| |
| Operating system | Embedded LINUX operating system | ||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||
| Display | Operation interface | 16 bit real color GUI interface support mouse operation | |
| Multilingual Language | YES, 25 kinds of language | ||
| Display screen | 1/4/8/9/16 screen | ||
| Video | Video Standard | PAL / NTSC(1080N) | |
| Image encode | H.264(Main Profile) | ||
| Capture function | YES | ||
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) | ||
| Playback quality | 1080N/720P | ||
| Encode capability | 16ch 1080N@25fps | ||
| Decode capability | 4ch 1080N@18fps | ||
| Multi-Input (ONVIF 2.8) | Analogue:16ch 1080N | ||
| Analogue+ Network HD:1080N(AHD-NH)*4+720P(network)*4 | |||
| Network:16*720P(network) | |||
| Audio | Audio compression | G.711A | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing | |
| Local playback | 1--4ch (local mode) | ||
| Video search | Time, date, event, channel search | ||
| Storage and back up | Space Usage | Video 720P:10G~42G/day*channel, 1080P:20G~80G/day*channel, Audio 691.2M/day *channel | |
| Video storage | Local Hard Disk, Network | ||
| Back up mode | Network backup, USB portable HDD | ||
| Interface | Video input | 16ch BNC(1.0Vp-p,75Ω) | |
| Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | ||
| Audio input | 6ch RCA (200-2800mV,30KΩ) | ||
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | ||
| Alarm input | No (optional 4) | ||
| Alarm output | No (optional 1) | ||
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | ||
| USB port | Support USB 2.0 port | ||
| HDD port | Accommodates 1 SATA HDDs (Maximum support two, each of the maximum support 4TB) | ||
| Wireless Port | 3G & WIFI ( Extented by USB) | ||
| User | User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | ||
| Password protection | YES | ||
| Remote | Remote Independent Operation | YES | |
| Download records | YES | ||
| Remote Event Trigger Recording | YES | ||
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | ||
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | ||
| Live Audio | YES | ||
| On-line user | Max. 10 | ||
| Mobile Surveillance | YES (supporting iPad, iPhone & Android;iPad, iPhone, Andriod remote playback) | ||
| Network Protocol | DHCP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | ||
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | ||
| Pre-alarm Recording | YES | ||
| Video loss | Video loss notification | ||
| Buzzer | YES | ||
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | ||
| Cooling fan | NO | ||
| Tour | YES | ||
| Power Source (±10%) | DC 12V / 3A | ||
| Power Consumption (±10%) | <10W(without HDD) | ||
| Operating Temperature | 0℃ ~ +55℃ | ||
| Dimensions (mm) ** | 325mm(L)* 245mm(W)* 52mm(H) | ||
| System Recovery | System auto recovery after power failure | ||
| Package | Net Weight | 1.45kg±0.1kg | |
| Carton Box Size | 350mm(L)* 110mm(W)* 305mm(H) | ||
| Package Size | 570mm(L)* 367mm(W)* 326mm(H) | ||
| Gross Weight | 12.0kg±0.5kg | ||
| *The specifications are subject to change without notice. | |||
| ** Dimensional tolerance: ±3mm | |||
FC
FD
Advantages
1. Excellent hardware built:
a) Our raw material is from the first grade factories in their field and antaivison is already establish a good partner relationships with them so that our raw material defective rate is lower than 0.1%.
b) We have our owned qualified SMT plants, assembly plants, 100% QC procedure, all products finished in one stop, so we can control our quality well.
c) We have more than 20 family case(small case and big case) and more than 90 camera housing for your choice, so that our customer have different choices as they like
d) We have more than 150,000 pcs of mainboards in our production line and warehouse, so we can deliver effectively and timely.
2. Perfect Software Build:
We offer humanized software according to our customer’s requirements. our new products are feature with below functions such as:
New functions: [for HY DVR(GM chipset)]
1. Image flip
2. Snapshot direct into USB function
3. Hard disk storage saving function(SMART RECORD)
4. Holiday predication functions.
5. All channel playback.
APP:
1. Alarm video push function.
2. 4Ch playback
3. Cloud storage function
4. Connect in one second
Payment & shipping
1. Our usually payment terms is EX-Works Price, Port of loading is Shenzhen.
2. We have cooperation with mainstream Express company (Fedex/DHL/UPS/TNT/EMS). For sample order we suggest you use Express, for mass production we suggest you transport the goods BY AIR or BY SEA

Service
OEM Service
We have several years' experience of doing OEM order, your OEM order is highly welcome. Your order
will be the most important in our factory, we will do our best to make you satisfied!
After sale service
We offer 1~2 years warranty and whole life support:
1)Software:we establish a neutral software website so that customer can go there to download all of the
upgrade software by themselves.
2)Hardware:we offer complete reparation book and offer free electronic components for your reparation.
Company Information
Products Contrast
Certificate
Factory
Exhibition


FAQ
Q1: What is your MOQ for this MDVR?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 500 units.
Q2: How long is the warranty period?
A2: 24 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 2-5 working days, for mass production it takes 5-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, send email to us and we will provide solutions to you.
Contact Information
For more information, please contact me
(Skype: antaivision-joyce; email: sales15 at )
