extruded pvc plastic machine
- 10 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
| Condition: | New | Application: | Other, Pipe, supply and drain pipe | Plastic Processed: | Other, PVC,UPVC,CPVC |
| Screw Design: | Double-screw | Automatic Grade: | Full automatic | Place of Origin: | Jiangsu, China |
| Brand Name: | CHICHENG | Model Number: | SJSZ | Voltage: | 220V/380V/415V |
| Power(W): | According to the model | Dimension(L*W*H): | According to the model | Weight: | According to the model |
| Certification: | CE&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
electrical pvc plastic machine
Process flow:

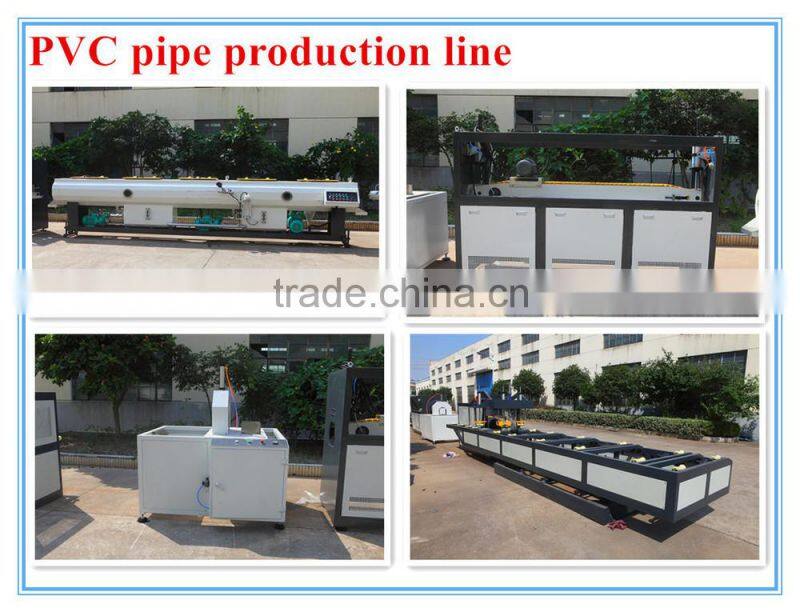

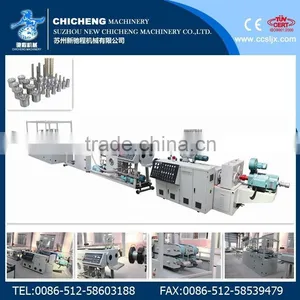

CPVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
electrical pvc plastic machine
Max. caliber of cpvc pipe Extrusion Machine is 630mm. All kinds of PVC,CPVC/UPVC plastic pipe can be produced by plastic pipe extruder line.The plastic pipe extruder adopts SJSZ conical double-screw extruder The drawing machine has four kinds 2-claw,3-claw,4-claw and 6-claw. The cutting machine is cutting ring. Our company can provide various kinds of moulds.
Application:
The big solid wall in an CPVC/UPVC/PVC pipe Extrusion Machine that Xinda company makes is used for producing various mater supply and drain the big caliber in CPVC/UPVC/PVC pipes.
electrical pvc plastic machine
Model | Screw Diameter(mm) | Pipe Range(mm) | Capacity(kg/h) | Main motor power | Total Power | Line Length(m) |
CPVC63 | 51/105 | 16-63 | 80-120 | 18.5 | 50 | 22 |
CPVC160 | 65/132 | 75-160 | 200-250 | 37 | 100 | 22 |
CPVC250 | 65/132 | 110-250 | 200-250 | 37 | 120 | 30 |
CPVC315 | 80/156 | 160-315 | 300-400 | 55 | 200 | 30 |
CPVC450 | 80/156 | 200-450 | 300-400 | 55 | 220 | 36 |
CPVC630 | 92/188 | 315-630 | 400-800 | 90 | 350 | 42 |
Zhangjiagang City suzhou new chicheng machinery manufacturing Co., Ltd. is located at leyu development Zone, Zhangjiagang City. We are one of the professional manufacturers of plastic machinery of China.
Our enterprise pays attention to technological improvement, actively introduces domestic and foreign advanced technology, improves old products and develops new ones. Our main products are extruding production lines for pipes & plasitic/profiles, and auxiliary equipment. Moreover, we are contributing to plastic ...
For the best price and more detailed information of cpvc pipe Extrusion Machine , please feel free to contact us!
If you want more information, please contact us, thanks!
Our company is near Shanghai ,about 130km. Welcome to our factory anytime!
Contact person :Elma Skype:elma91515 Mobile:0086-15895473240
