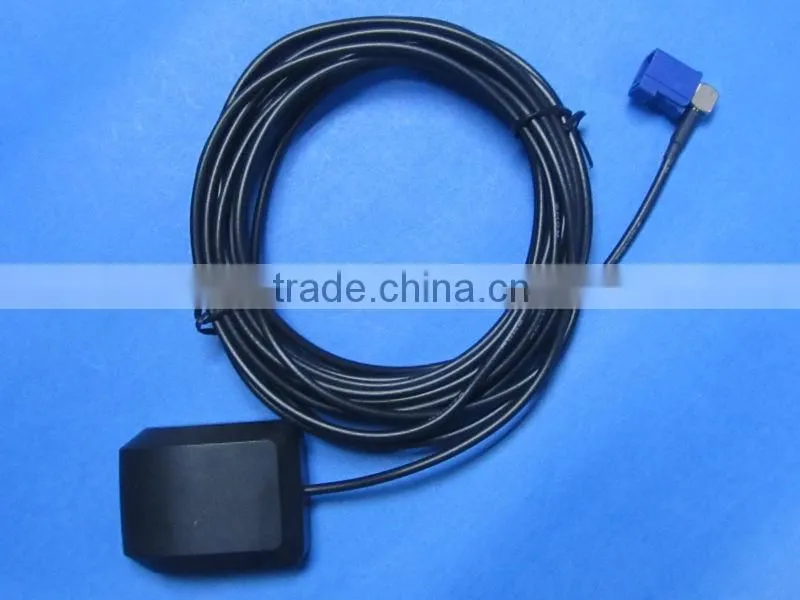

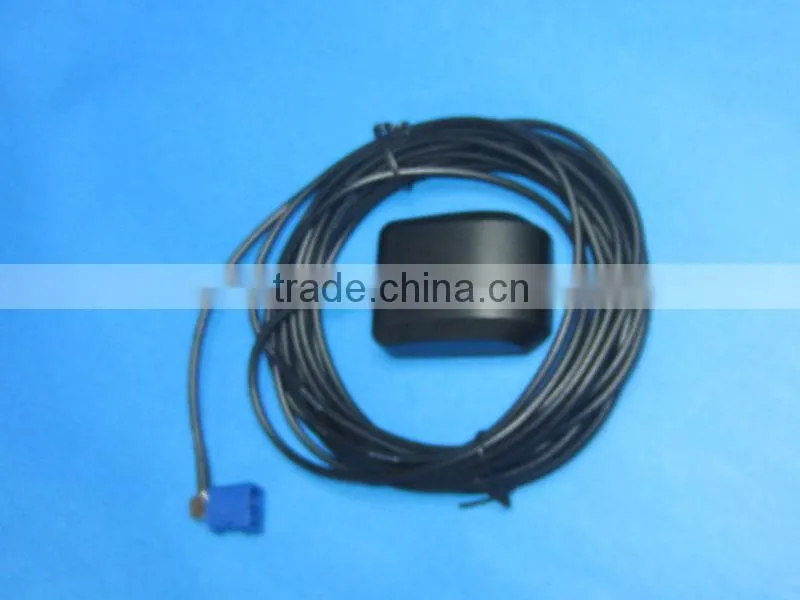

1575.42MHz Magnetic base car active GPS Antenna with MCX connector

Name: 1575.42MHz Magnetic base car active GPS Antenna with MCX connector
Brand: Yetnorson
Availability: InStock

FOB Price

USD $1.5 - $3.8 / Piece

50 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yetnorson
Model Number	YNX-Glonass+gps-0401	Car Make	Universal
Frequence Range	1062mhz	Gain(dB)	28dB±2dB
Cable Length	5000mm

Packaging Details

1pcs Russian 1602Mhz GNSS antenna / PE bag;
As customize

Product Description

Application

1.For GNSS system,passive antenna,made of Ceramic Microstrip Substrat

2. Compact Size, Light Weight, Low Profile, Easy to Assemble and Hide

3. The high gain LNA is made of low noise microwave components to ensure the sensibility of the system.

Antenna	Center Frequency	1602mhz
	Band Width	CF±5MHz
	Polarization	RHCP
	Gain	3dBic(Zenith)
	V.S.W.R	<1.5
	Impendance	50Ω
	Axial Ratio	3dB(max)

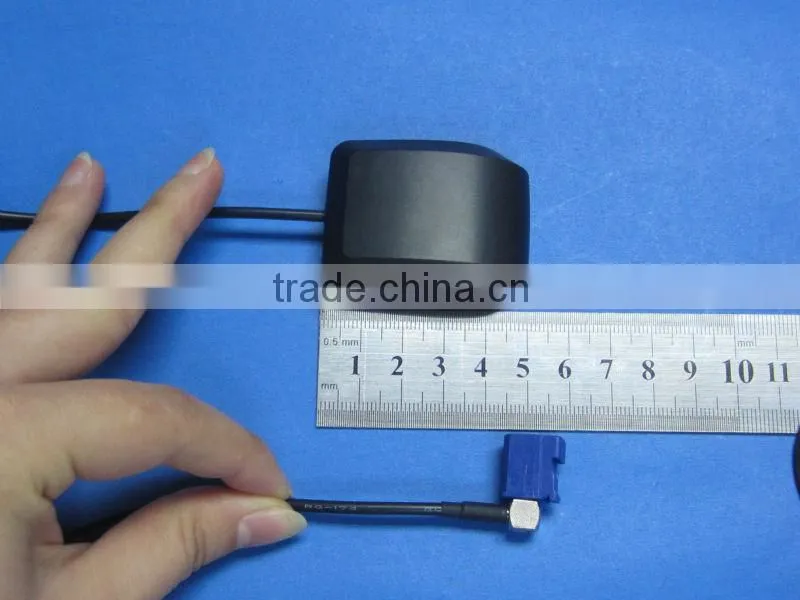

	Dimension	25254mm
LNA	Gain	26±2dB
	Noise Figure	<1.3
	Filter Insertion Loss	<3dB
	Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
	Supply Voltage	2.2~5V DC
	Current Consumption	10~26mA
	V.S.W.R	<2.0
Mechanical	Cable	RG174

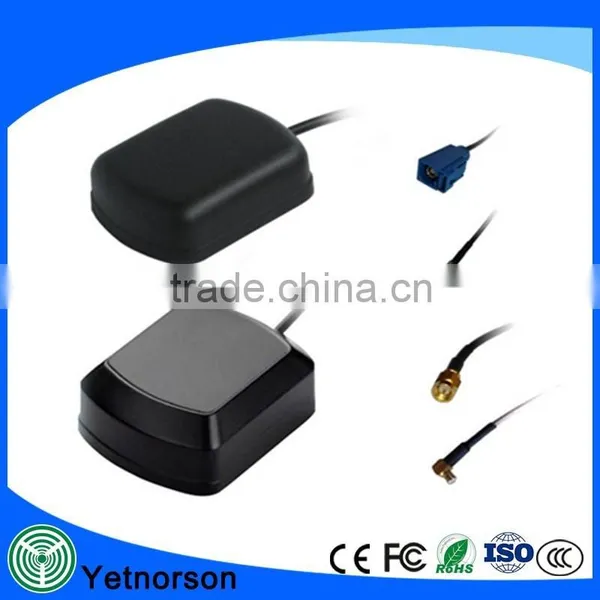

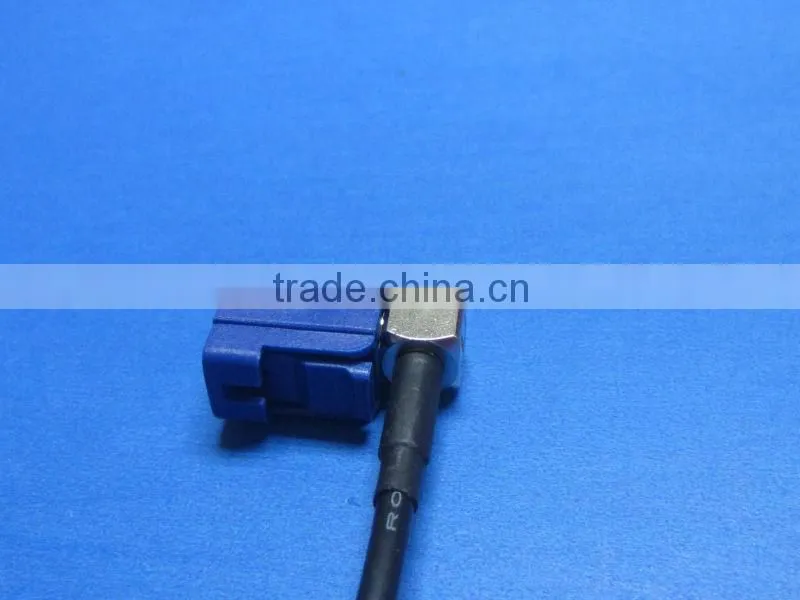

	Connector	SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Magnet
Environmental	Operating Temperature	-40°C~+85°C
	Relative Humidity	Up to 95%
	Ingress Protection	IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
