PA-B Series 3-6W Module power supplyBroadband noise filter input
Pin function compatible

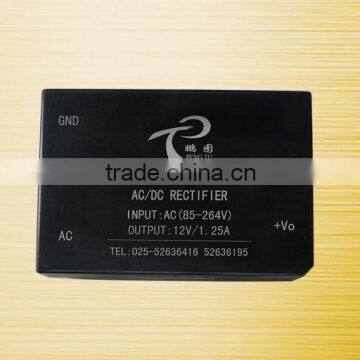

PA-B Series 3-6W Moudle power supply Small power pin type Module power supply
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±2%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 0-2A
l Output voltage …………………………… 3.3-48V
l Power …………………………………… 3-6W
General Characteristic
l Switching frequency …………………… 40-60 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>2000 VAC/Min (Leakage current<5mA)
Input-case: >2000 VAC /Min (Leakage current<5mA)
Output-case: >500 VAC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃
Storage temperature ……………….. Industry: -45~ +105℃
Models
Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
PA6-220S3.3-B | Single | 220 | 85-264 | 3.3 | 1.8 | 50 | 77% |
PA6-220S05-B | Single | 220 | 85-264 | 5 | 1.2 | 120 | 77% |
PA6-220S09-B | Single | 220 | 85-264 | 9 | 0.66 | 200 | 78% |
PA6-220S12-B | Single | 220 | 85-264 | 12 | 0.5 | 50 | 79% |
PA6-220S15-B | Single | 220 | 85-264 | 15 | 0.4 | 120 | 81% |
PA6-220S24-B | Single | 220 | 85-264 | 24 | 0.24 | 200 | 80% |
PA6-220D3.3-B | Dual | 220 | 85-264 | ±3.3 | ±0.9 | 50 | 77% |
PA6-220D05-B | Dual | 220 | 85-264 | ±05 | ±0.6 | 120 | 77% |
PA6-220D09-B | Dual | 220 | 85-264 | ±09 | ±0.33 | 200 | 78% |
PA6-220D12-B | Dual | 220 | 85-264 | ±12 | ±0.25 | 50 | 79% |
PA6-220D15-B | Dual | 220 | 85-264 | ±15 | ±0.2 | 120 | 81% |
PA6-220D24-B | Dual | 220 | 85-264 | ±24 | ±0.12 | 200 | 80% |
Remarks: Custom-made specifications are acceptable.

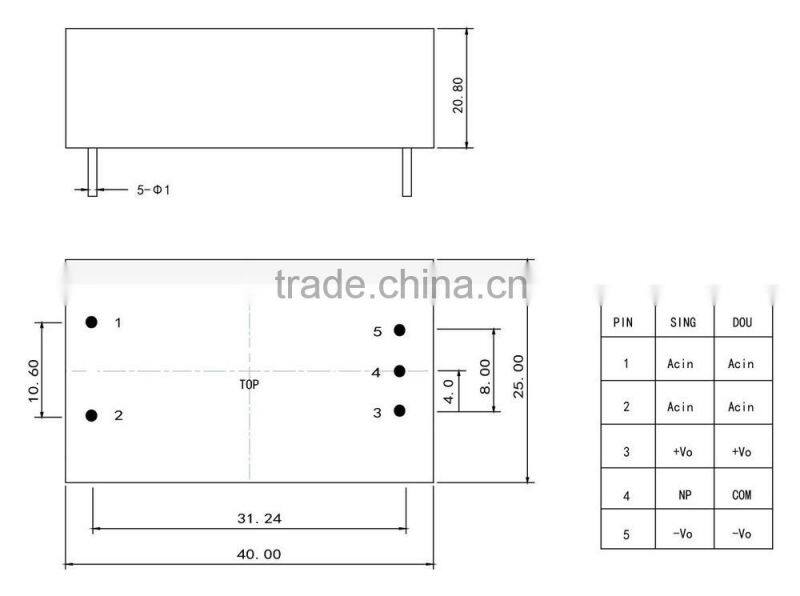

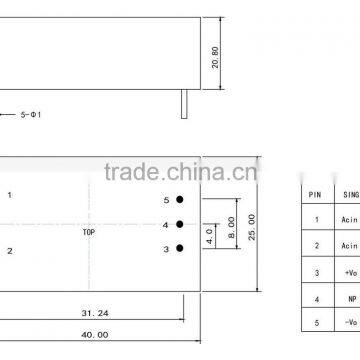

Mechanical drawing and pin definition
