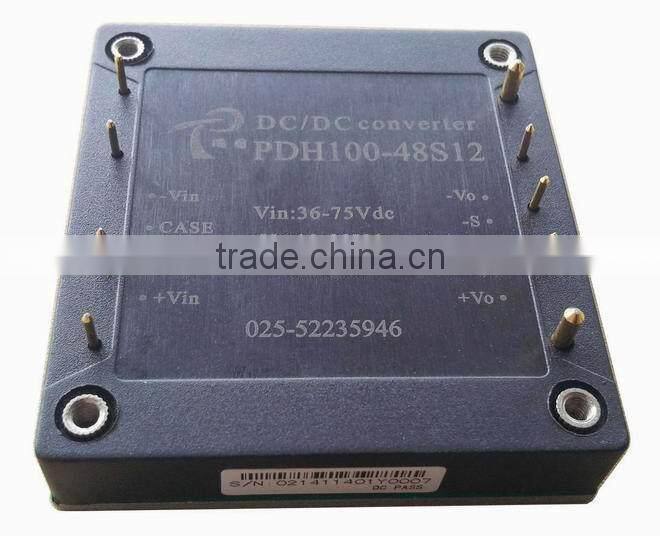

PDH Series half brick industry standard 80 volt to 12 volt dc to dc converter
- 20000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
PD-A Series 3-5W Module power supply Pin type module power supply Small power supply
-
PD-A Series 3-5W Pin type dc dc power supplies
-
PD-A Series 3-5W DC Pin type Switch power supply
-
PD-A Series 3-5W Pin type Switching mode power supply
-
PD-A Series PD3-05S05-A Input 5V Output 5V 0.6A Pin type dc to dc Switching mode power supply
-
PD-A Series PD3-05S12-A Input 5V Output 12V 0.25A Module power supply
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | PengTu 80 volt to 12 volt dc to dc converter | Model Number: | PDH Series 50-200W |
| Output Power: | Other, 50-200W | Output Type: | Single | Input Voltage: | Other, 18~160V |
| Output Voltage: | 3.3~48V | Output Frequency: | 300KHz | Output Current: | 4~40A |
Product Description
PDH Series 50-200W Series 80 volt to 12 volt dc to dc converter
Notice:
We do have enough ability to produce custom-made order.
Samples are available
High quality and low price .
If need samples, Kindly contact us
2 years warranty
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Features
l Industry standard half brick
l Wide input voltage
l High voltage isolation
l Telecontrol and adjusted output available
Input Characteristic
l Inputvoltage range…………………… 18 ~ 36 VDC Rated value: 24VDC
36 ~ 75 VDC Rated value: 48VDC
66 ~ 160 VDC Rated value: 110VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage set-point accuracy ……………… ±1%
l Line regulation(main) ……….........……… ±0.3%
l Load regulation(main) ………........……… ±0.1%
l Temperature coefficient …………… ±0.01%/℃
l Output current limiting …………… 150%(Typ)
l Dynamic response ……………………… 400μs
l Power …………………………………… 50~200W
General Characteristic
l Switching frequency …………………… 300 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃
Models
| Model | Output Lines | Input V. (V) | Input V. Range (V) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) |
| PDH Series 50-200W | |||||||
| PDH100-24S3.3 | Single | 24 | 18-36 | 3.3 | 30 | 100 | 86% |
| PDH100-24S05 | 24 | 18-36 | 5 | 20 | 100 | 87% | |
| PDH100-24S12 | 24 | 18-36 | 12 | 8.3 | 100 | 87% | |
| PDH100-24S24 | 24 | 18-36 | 24 | 4.16 | 100 | 88% | |
| PDH100-48S3.3 | 48 | 36-75 | 3.3 | 30 | 150 | 82% | |
| PDH100-48S05 | 48 | 36-75 | 5 | 20 | 150 | 87% | |
| PDH150-48S12 | 48 | 36-75 | 12 | 12.5 | 150 | 87% | |
| PDH150-48S24 | 48 | 36-75 | 24 | 6.2 | 150 | 87% | |
| PDH200-110S05 | 110 | 66-160 | 5 | 40 | 150 | 87% | |
| PDH150-110S12 | 110 | 66-160 | 12 | 12.5 | 150 | 87% | |
| PDH150-110S24 | 110 | 66-160 | 24 | 6.2 | 150 | 87% | |
| PDH200-110S48 | 110 | 66-160 | 48 | 4.2 | 150 | 88% | |
Remark: Custom-made specifications are acceptable.
Mechanical Drawing & Pin definition
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market
80 volt to 12 volt dc to dc converter
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid .
80 volt to 12 volt dc to dc converter
If you want to know more information ,pls feel free to contact us. Any feedback from you will be gave the prompt attention and reply!
