PD-A Series 3-5W Pin type Switching mode power supplyPin function compatible
Completelly isolate between input & output

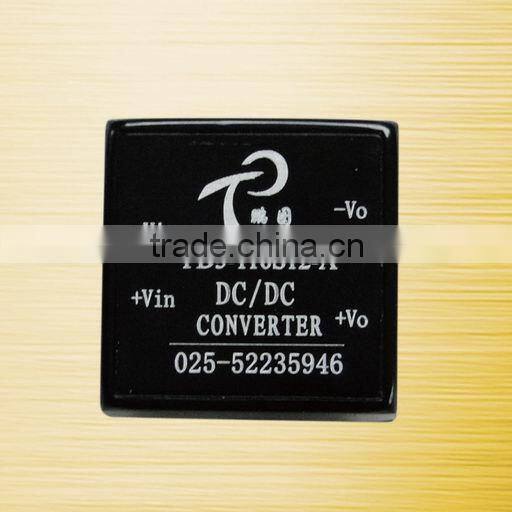

PD-A Series 3-5W Pin type Switching mode power supply
PD-A Series 3-5W Pin type Switching mode power supply
Features
l Pin function compatible
l Completelly isolate between input & output
l Natural cooling, no heat sink needed
l Fast dynamic response
l Small form factor, single output
l Design for high reliability, long lifetime
Input Characteristic
l Input voltagerange …………………… 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage set-point accuracy ……………… ±2%
l Line regulation(main) ……………… ±0.3%
l Load regulation(main) ……………… ±0.1%
l Temperature coefficient …………… ±0.01%/℃
l Output current limiting …………… 120%(Typ)
l Dynamic response ……………………… 400μs
l Power …………………………………… 3-5W
General Characteristic
l Switching frequency …………………… 300 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >500 VDC
Input-case: >500 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃
Models
Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
PD3-05S05-A | Single | 5 | 4.5-9 | 05 | 0.6 | 50 | 79% |
PD3-05S12-A | Single | 5 | 4.5-9 | 12 | 0.25 | 100 | 82% |
PD5-12S05-A | Single | 12 | 9-18 | 05 | 1 | 50 | 79% |
PD5-12S12-A | Single | 12 | 9-18 | 12 | 0.4 | 100 | 82% |
PD5-24S05-A | Single | 24 | 18-36 | 05 | 1 | 50 | 78% |
PD5-24S12-A | Single | 24 | 18-36 | 12 | 0.4 | 100 | 80% |
PD5-48S05-A | Single | 48 | 36-72 | 05 | 1 | 50 | 78% |
PD5-48S12-A | Single | 48 | 36-72 | 12 | 0.4 | 100 | 80% |
PD5-110SS05-A | Single | 110 | 70-140 | 05 | 1 | 50 | 76% |
PD5-110SS12-A | Single | 110 | 70-140 | 12 | 0.4 | 120 | 78% |
PD5-12D05-A | Double | 12 | 9-18 | ±05 | ±0.5 | 50 | 75% |
PD5-24D12-A | Double | 24 | 18-36 | ±12 | ±0.21 | 100 | 77% |
PD5-48D15-A | Double | 48 | 36-72 | ±15 | ±0.17 | 100 | 80% |
PD5-110D05-A | Double | 110 | 70-140 | ±05 | ±0.5 | 50 | 75% |
Remark: Custom-made specifications are acceptable.

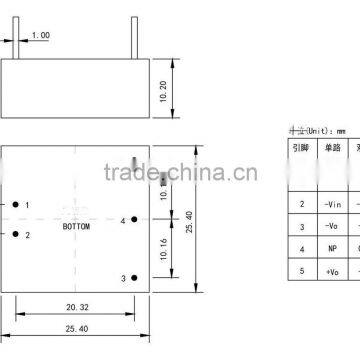

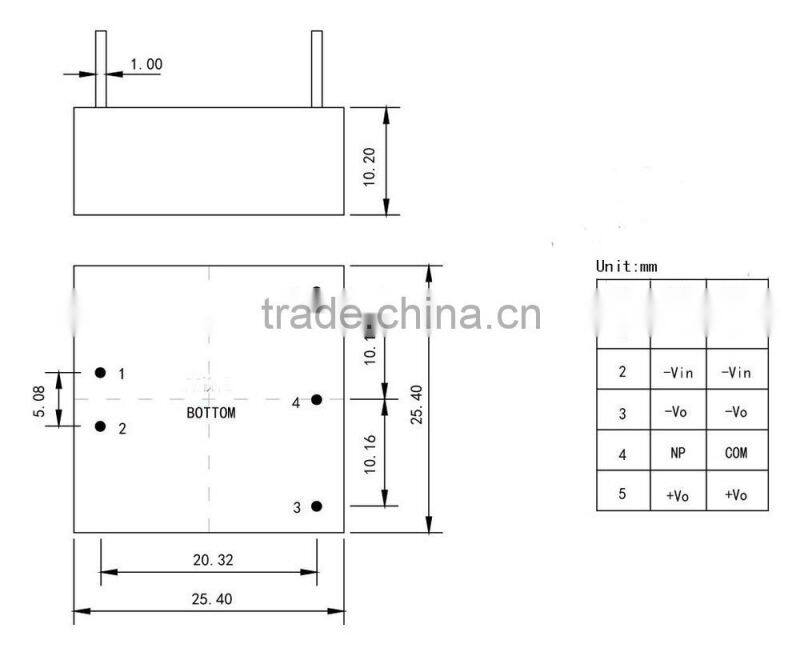

Mechanical Drawing & Pin definition
