25w step-down dc power converter with 600v to 24v
Features
l Wide input voltage
l Design for high reliability, long lifetime
l Under and over voltage protection for output
l Full load efficiency up to 92%
l Fast dynamic response
l Power density up to 26W/in³
l High input voltage, high output power
l Wide range of power, easy to upgrade
Input Characteristic
l Inputvoltage range…………………… 70~140 VDC Rated value: 110VDC
200~400 VDC Rated value: 300VDC
400~800 VDC Rated value: 600VDC
100~1000 VDC Rated value: 800VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Output voltage seet-point accuracy……… ±1%
l Line regulation …………………………… ±0.2% (typ)
l Load regulation(10%~100%) …………… ±0.4% (typ)
l Temp. Coefficient…………………………… ±0.01 %/℃
l Output current limiting …………… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 1-6A
l Output voltage …………………………… 5-48V
l Power …………………………………… 15-30W
General Characteristic
l Switching frequency …………………… 160~200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >2000 VDC
Input-case: >2000 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃; Military II: -40-+85℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃

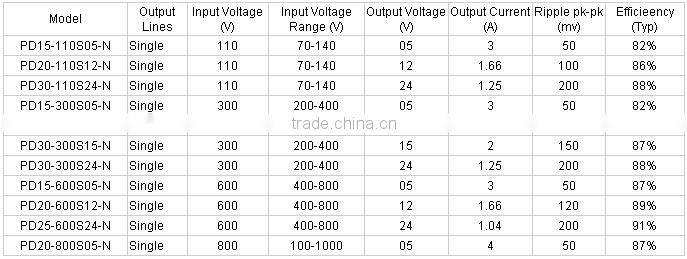

Models
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

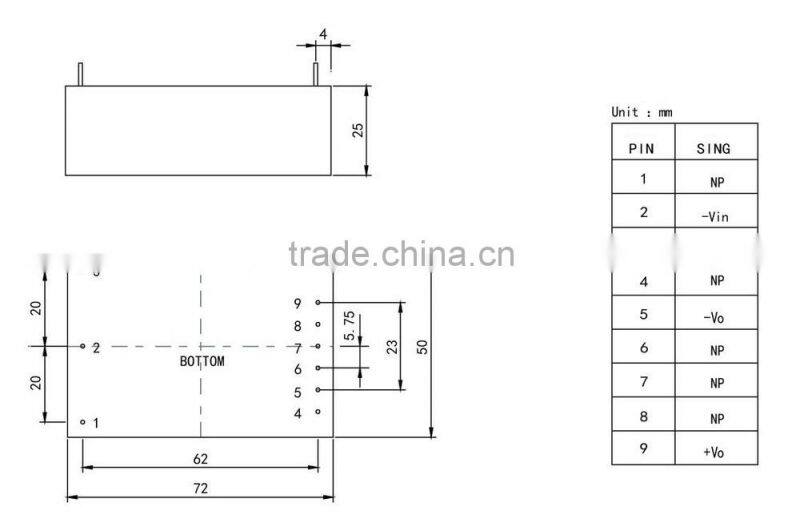

Mechanical Drawing & Pin definition
Shipping:
Warranty and Guarantee:
Other Policies:
