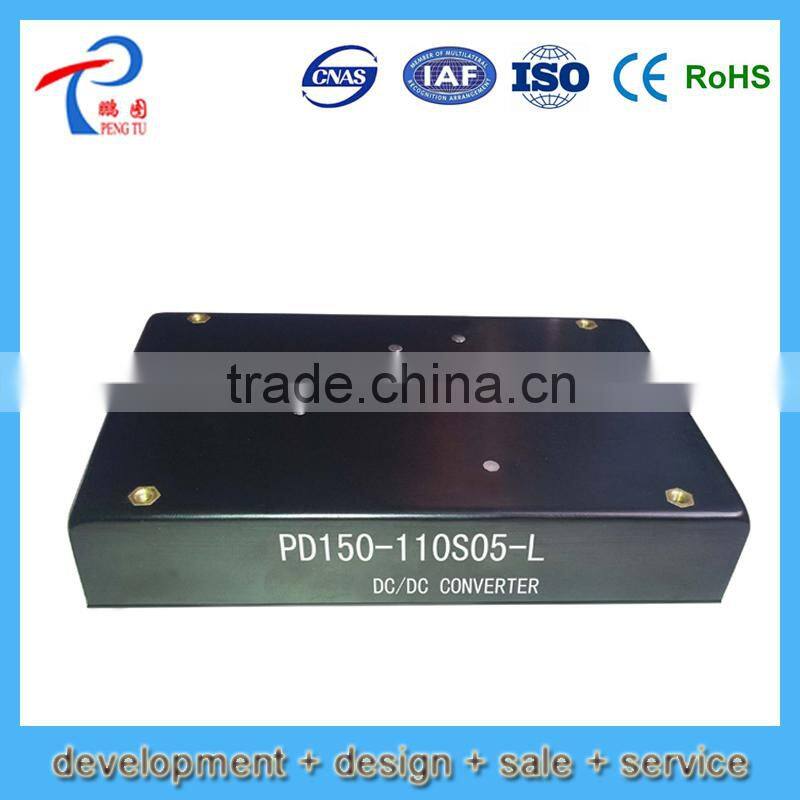

single output type 24v dc power converter module
- 100 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
P10-15-A 10-15W Series Ac/DC switch power supply
-
P10-15-A Series P10S05-A 10W Single output 5V power supply
-
P10-15-A Series AC/DC Output 12V switching power supply
-
P10-15-A Series P15S24-A 15W AC/DC Output 24V switching power supply
-
P10-15-A Series Output 12 volt power supply from China expert manufacture
-
P10-15-A Ac/DC switching power from expert manufacture
Product Details
| Place of Origin | Jiangsu, China | Brand Name | PengTu | |
| Model Number | PD300-300S24-L | Output Power | Other, 300W | |
| Output Type | Single | Input Voltage | Other, 300V | |
| Output Voltage | 24V | Output Frequency | 160-200KHz | |
| Output Current | 12.5A |
Product Description
single output type 24v dc power converter module
PD-L Series
Features
l Wide range of input voltage
l Design for high reliability, long lifetime
l Under & over-voltage protection for output
l Full load efficiency up to 92%
l Fast dynamic response
l Up to 26 power density
l High voltage input, high output power
l Wide range of power, easy to upgrade
Input Characteristic
l Inputvoltage range…………………… 70~140 VDC Rated value: 110VDC
200~400 VDC Rated value: 300VDC
400~800 VDC Rated value: 600VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Output voltage seet-point accuracy……… ±1%
l Line regulation …………………………… ±0.2% (typ)
l Load regulation(10%~100%) …………… ±0.4% (typ)
l Temp. Coefficient…………………………… ±0.01 %/℃
l Output current limiting …………… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 2-30A
l Output voltage …………………………… 5-48V
l Power …………………………………… 150-300W
General Characteristic
l Switching frequency …………………… 160~200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >2000 VDC
Input-case: >2000 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃; Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃

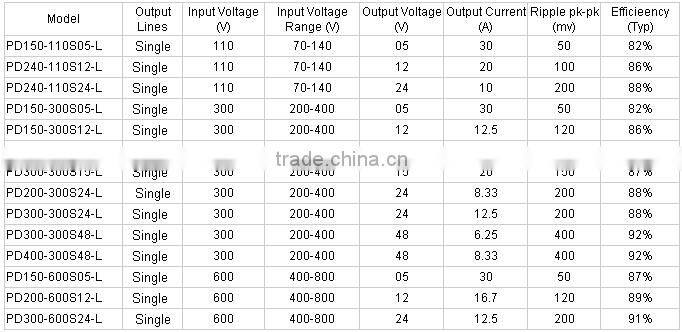

Models
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

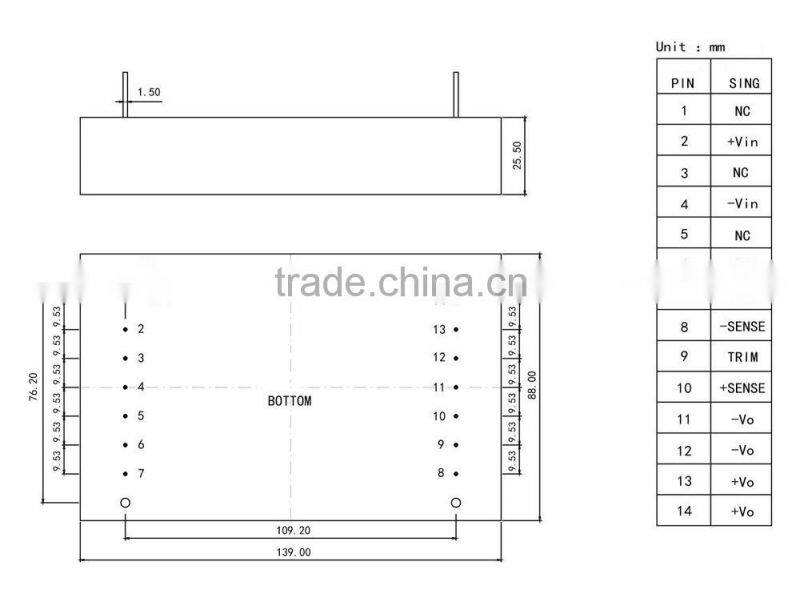

Mechanical Drawing & Pin definition
