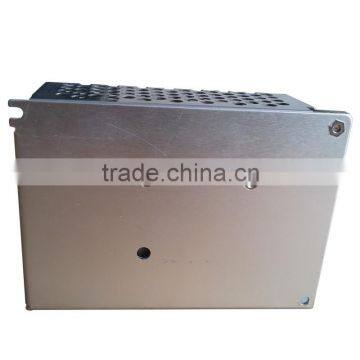

P25-B 25W Series Professional manufacture of power supply 12v 5v 3.3v
- 20000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
P25-B 25W Series Professional manufacture of 230v ac to 3.3v dc power supply
-
P25-B Output 3.3v 5a switching power supply with low price high quality
-
P25-B smps for industries use
-
AC DC switching power supply 220v to 3.3v 25w P25-B series
-
220vac to 5vdc switching power supply 5v 5a P25-B series
-
switching power supply ac dc 25w 220v to 9v P25-B series
Product Details
| Place of Origin | Jiangsu, China | Brand Name | PengTu power supply 12v 5v 3.3v | |
| Model Number | P25-B Series 25W | Output Power | 1 - 50W | |
| Output Type | Multiple | Input Voltage | Other, 85-370V | |
| Output Voltage | -15~48V | Output Frequency | 160~200KHz | |
| Output Current | 0~5A |
Product Description
P25-B Series power supply 12v 5v 3.3v
Notice:
We do have enough ability to produce custom-made order.
Samples are available
High quality and low price .
If need samples, Kindly contact us
3 years warranty
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of switching power supply.
Features
l Output overload, overvoltage, short circuit protection; Overtemperature protection for option
l With reference to the international safety regulation: UL/TUV/CB/CE
l Cooling by free air convection
l 100% full load burn-in test
l Three years warranty
Input Characteristic
l Inputvoltage range……………………176 ~ 264 VAC/ 85~264 VAC/ 210-370 VAC
l Input Frequency.....................................47~63Hz
l Inrush current.........................................Cold start 40A/230VAC
l Leakage current.....................................<0.5mA/240VAC
Output Characteristic
l Rated Power …….................………….....25W
l Voltage adj. range ………………........±10% (Rated output voltage)
l Line Regulation............... …………....<0.5%
l Set up time...................... ………….........… ≤50ms/230VAC (Full load)
l Hold up time............. ……………………… ≥20ms/230VAC (Full load)
General Characteristic
l Overload protection …… Above 105% rated output power/ Automatically recovers after fault conditions removed
l Overvoltage protection …Above 110% rated output voltage/ Automatically recovers after fault conditions removed
l Isolation characteristic … I/P-O/P: 1.5KVAC 1Min, I/P-FG: 1.5KVAC 1Min, O/P-FG: 0.5KVAC 1Min
l Anti-vibratility.......................10-500Hz, 5G 10min/ cycle, period for 60min, each axes
l Safety Regulation.................. Refer to UL60950-1, TUV EN60950-1
l EMC standard........................Refer to EN55022(CISPR22) class B. EN-61000-4-2,3,4,5,6,8,11
l Environmental Characteristic
Working temperature …………………… -10-+50℃
Storage temperature ……………….. -20~ +85℃
l Size...................................... 110*78*36mm
Models
| Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| P25-B Series | ||||||
| P25S3.3-B | Single | 25 | 3.3 | 5 | 50 | 70 |
| P25S05-B | 5 | 5 | 50 | 73 | ||
| P25S09-B | 9 | 2.8 | 100 | 76 | ||

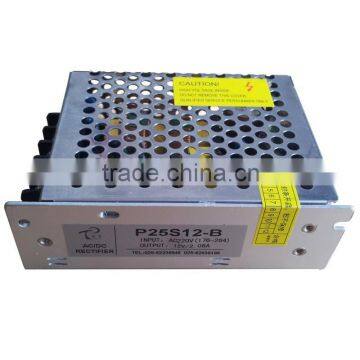

| P25S12-B | 12 | 2 | 100 | 78 | ||
| P25S15-B | 15 | 1.5 | 120 | 79 | ||
| P25S24-B | 24 | 1 | 150 | 79 | ||
| P25S48-B | 48 | 0.5 | 150 | 81 | ||
| P25D-A-B | Dual | 5 | 0.4~4 | 100 | 70 | |
| (5V/5V) | 5 | 0.1~1 | 100 | |||
| P25D-B-B | 5 | 0.3~3 | 100 | 71 | ||
| (5V/12V) | 12 | 0.1~1 | 100 | |||
| P25D-C-B | 5 | 0.3~2.5 | 100 | 71 | ||
| (5V/24V) | 24 | 0.1~0.5 | 150 | |||
| P25D-D-B | 12 | 0.2~2 | 100 | 72 | ||
| (12V/5V) | 5 | 0.1~1 | 100 | |||
| P25T-A-B(5V/12V/-5V) | Triple | 5 | 0.3~3 | 100 | 69 | |
| 12 | 0.1~1 | 120 | ||||
| -5 | 0.1~1 | 100 | ||||
| P25T-B-B(5V/12V/-12V) | 5 | 0.3~3 | 100 | 69 | ||
| 12 | 0.1~1 | 120 | ||||
| -12 | 0.1~1 | 120 | ||||
| P25T-C-B(5V/15V/-15V) | 5 | 0.3~2.5 | 100 | 70 | ||
| 15 | 0.1~0.8 | 150 | ||||
| -15 | 0.1~0.8 | 150 | ||||
Remarks: Custom-made specifications are acceptable.
Mechanical drawing and pin definition
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid.
If you want to know more information ,pls feel free to contact us. Any feedback from you will be gave the prompt attention and reply!
