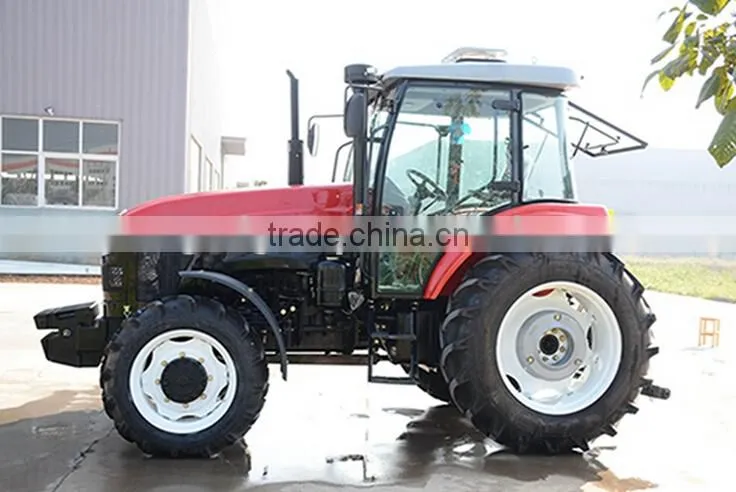

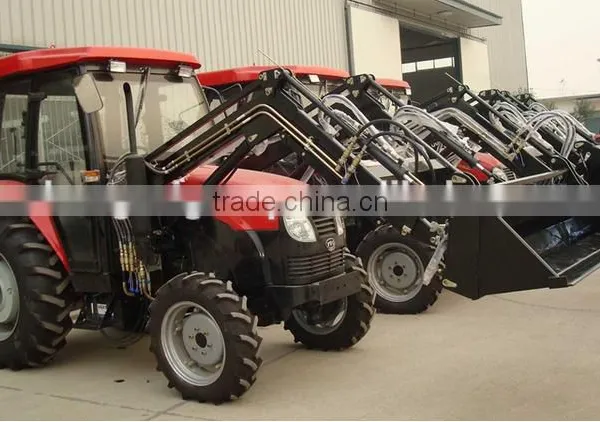

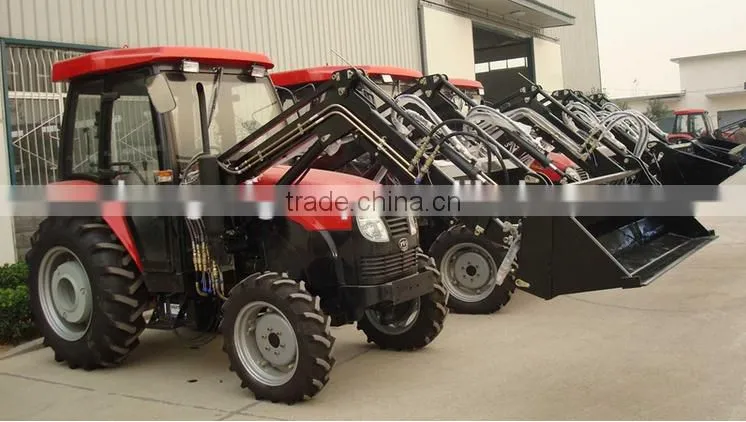

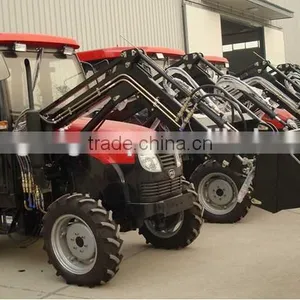

70 tractor with cabin,with front end loader and backhoe

Name: 70 tractor with cabin,with front end loader and backhoe
Brand: SR
Availability: InStock

FOB Price

USD $1,000 - $20,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

General Information

Weight:	1,900 Kg
Front End Loader Capacity:	360 Kg
Wheelbase:	1,955 mm
Overall Length:	3,700 mm
Rear Track:	1300mm,1400mm,1500mm
Front Track:	1,250 mm
Turning Circle (With 1-side braking):	3,150 mm
Turning Circle (Without braking):	3,800 mm
Height (to exhaust):	2,220 mm
Ground Clearance:	300 mm

Engine:	4 Stroke, Direct Injected Diesel Engine,Vertical Bore
Engine Displacement:	4.3L
Number of Cylinders:	4 inline
Engine Orientation:	Longitudinal
Rated Engine Power:	50 HP / 36.8KW @ 1,725 RPM (Max 2,300 RPM)
Tractive Force:	10.5 KN
Bore x Stroke:	95mm x 105mm
Top Nominal Speed:	20-30 Km/h
Fuel:	Diesel
Fuel Tank Capacity:	42 Litres (9 Gallons)
Fuel Consumption:	Approx 6-7 L/hr (254 g/kWh)
Cooling:	Water Cooled

Transmission

Transmission:	8 speed Manual gearbox with 4 speed reverse
Clutch:	Dry Single Plate Type, spiral spring press, constant mesh, dual stage
Drive:	Rear Wheel Drive with selectable 2WD / 4WD and Differential Locks
Differential:	Closed, Planetary Reduction Bevel Gears
Differential Lock:	Tooth Inlaid Type
Transfer Case:	Straight Cut Cylindrical Gears
