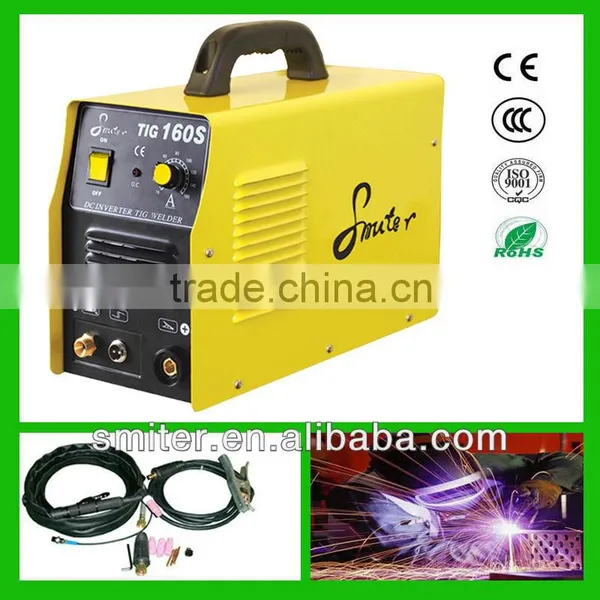

Mosfet Inverter DC TIG 160S Welding Machine stainless steel welder

FOB Price

USD $115 - $120 / Piece

50 Pieces(Min.Order)

Supply Ability 6000 Piece / Pieces per Month
Port Ningbo Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Zhejiang, China	Brand Name:	Smiter
Model Number:	TIG160S	Arc Current:	5-160A	Pulse Frequency:	50/60HZ
Rated Duty Cycle:	60%	Motor Type:	DC Motor	Dimensions:	371153299mm
Usage:	welding stainless steel products and ironware	Voltage:	220V	Power(W):	3.4KW
Certification:	CE, CCC, ISO9002

Product Description

Specifications

Inverter DC TIG Welding Machine/ Welder(TIG160S
1. HF arc starting, easy for operation
2. Little spatter, nice welding surface

Model: Inverter DC TIG Welding Machine/ Welder (TIG160S)

Functions and features

* HF arc starting, easy for operation

* Easy for arc striking, stable current, the first choice for thin plate welding

* Little spatter, nice welding surface

* Led digital show functions

Technical Parameters

ITEM MODEL	TIG 160S	TIG 200S	TIG 250S	TIG 300S
Input power voltage /Frequency (V/HZ)	Single Phase 220±15% 50/60	Single Phase 220±15% 50/60	Three Phase 380±10% 50/60	Three Phase 380±10% 50/60
Rate input power capacity (KVA)	3.4	4.5	6.4	8.4
Output current range (A)	10-160	10-200	10-250	10-300
Rate output voltage (V)	16.4	18	20	22
No-load voltage (V)	42	42	56	48
Duty cycle (%) (25°C)	60	50	60	50
Power factor (COSφ)	0.93	0.93	0.93	0.93
Efficiency (%)	85	85	85	85
Weight (KG)	8	9	61	18
Overall dimension (mm)	371153299	371153299	480203368	480203368
Insulation class	F	F	F	F
Protection class	IP23	IP23	IP23	IP23
Post-flow time (S)	5	5	5	5
Suitable welding thickness	0.3-5	1.6-6	1.6-8	0.5-12

D. Supply

1. OEM and ODMsevice offered, Machine Color

2. One Year Warranty.

3. Technical Support.

4. CE and CCC certificate

E. Market

South America

Europe

Southeast Asia

Oceania

Mid East

Eastern Asia

F. Strict Quality Control:

Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability

G. After-sale Service:

If you have any problem about using the machine, feel free to contact us!

H. Production Line:
